Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh

China Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh supplier
Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh supplier Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh supplier Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh supplier

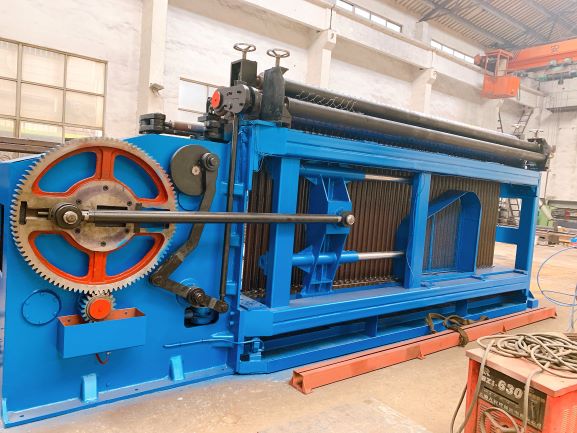

Large Image :  Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh

Product Details:

Place of Origin: China
Brand Name: Jinlida
Model Number: LNWL43-80-3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Competitive price
Packaging Details: Nude packing
Delivery Time: 50 days
Payment Terms: L/C,T/T
Supply Ability: 200 sets/a year
Contact Now
Detailed Product Description
Mesh Size: 80x100mm Warranty: 1 Year
Power(w): 22kw Usage: Gabion Mesh
Product Name: Hexagonal Wire Netting Machine Mesh Width: 4300mm

Hydraulic Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh


Quick Detail:


1. Invented first double twist gabion machine in China
2. Apply for national patents, number is ZL99229381.2 and ZL00267066.5
3. SGS,TUV certificate


Advantages:

1. The LNWL-3 series gabion mesh machines have been designed to make gabion mesh of various widths        and mesh sizes; we can produce the machne as your size.
2. This new 3 series gabion mesh machines structure is simpleness, it can make the machine weaving mesh     more easier.
3. The capability is stabilization, all the points of iunction have bearing to fix, the parts will hard-wearing,           lengthen machine life.
4. The mesh that 3 series machine weave, the part of twist will be lnger that 2 series mchine, so when the         mesh need edge curl that using the selvedge machine, it will going easily and smoothly.

This type machine is using spiral coil. And the twist could be double twisted and three twisted as
below picture.
Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh

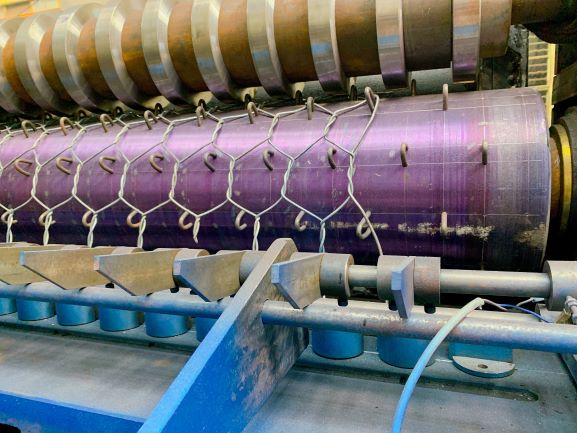

Pic 1:double twist mesh Pic 2: three twist mesh Pic 3: Gabion box application

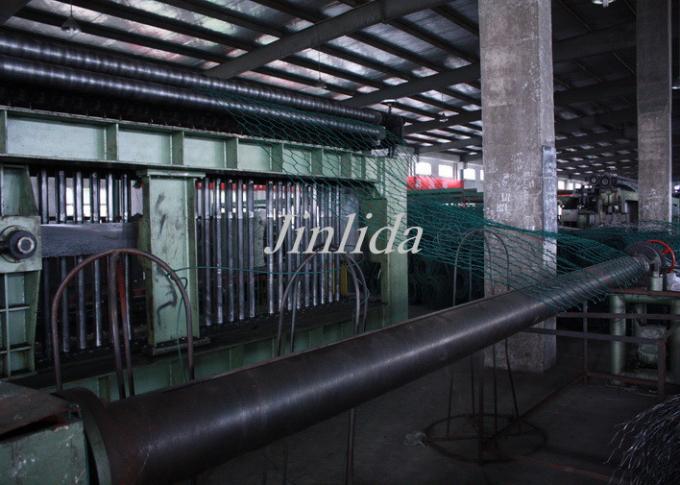

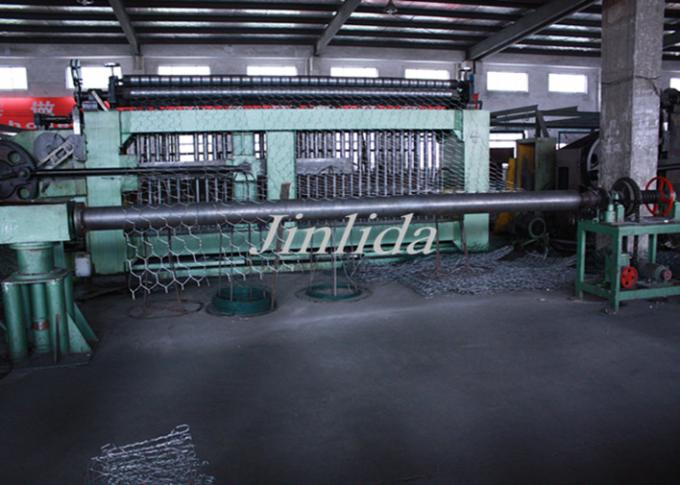

Working For Three Twist Gabion Machine

Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh

Auto Gabion Mesh Wire Netting Machine For 80x100mm Gabion Mesh


Specifications:

Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL43-60-3 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-3 80X100 1.6-3 195
LNWL43-100-3 100X120 225
LNWL43-120-3 120X150 1.6-3.2 20 255



Competitive Advantage:

1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area
of gabion machine making for 15 years.

2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.

3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
