Customized High Speed Gabion Mesh Weaving Machine , Spring Coiling Machine 4300mm Width

Place of Origin China
Brand Name Jinlida
Model Number LNWL43-80-2
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 50 days
Payment Terms L/C,T/T
Supply Ability 200 sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Iron Output 195m/h
Color Customized Width 4300mm
High Light

welded wire mesh machine

,

mesh making machine

Leave a Message
Product Description

High Speed Gabion Mesh Weaving Machine , Spring Coiling Machine / Wire Tension Roller




Quick Detail:



A set of gabion box machine includes four main parts: Mesh Weaving Machine, Spring Coiling Machine, Mesh Roller Machine, Wire Tension Roller.



Specifications:



1. Mesh sizes: 80x100mm

2. twist: double twist

3. Max. netting width: 4300mm

4. Max. galvanized wire diameter: 3.0mm

5. Max PVC wire diameter: 4.0mm

6. Spindle Speed:25r/min

7. Power: 22Kw

8. Size: 7200 x 1400 x 2400mm

9. Weight: 15MT

10. Theoretic output: 195m/hr

11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop

automatically

12. Infrared ray safety protection system (option)

13. Automatic oil system

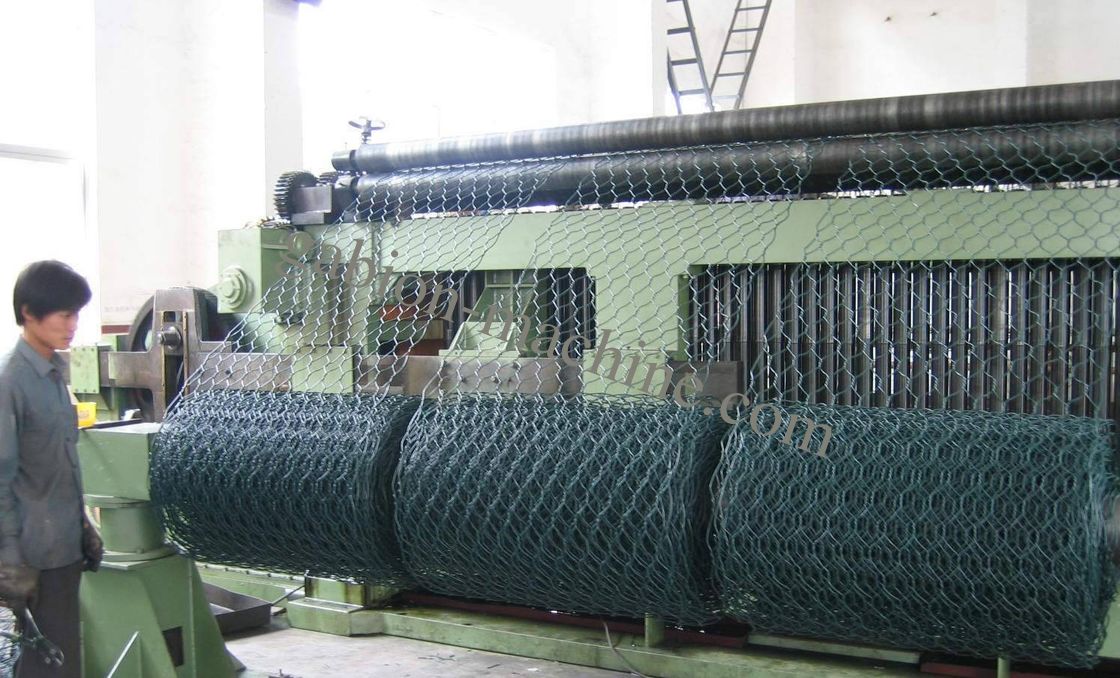

Customized High Speed Gabion Mesh Weaving Machine , Spring Coiling Machine 4300mm Width 0





Application:



The gabion box machine is widely used in oil, construction, raising, chemical industry, warming piping and

etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea

 wall, hillside, road, bridge and civil engineering. It is one of the best against flooding materials.



Customized High Speed Gabion Mesh Weaving Machine , Spring Coiling Machine 4300mm Width 1




Competitive Advantage:



1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of gabion machine making for 15 years.



2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

process, so the quality can be ensured.



3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
