Automatic PLC Control 80*100mm Gabion Machine PVC Coated Gabion Boxes

Place of Origin China
Brand Name JINLIDA
Certification ISO9001, ISO14000
Model Number jinlida014
Minimum Order Quantity 1 Set
Price Competitive price
Packaging Details Nude packing and will be fixed in 40' OT
Delivery Time 40 days after order confirmed
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gabion Machine Mesh Size 80*100mm
Mesh Width 4300mm Wire Diameter 2.6mm
Speed 195m/h Application PVC Coated Gabion Boxes
High Light

PVC Coated Gabion Boxes Machine

,

80*100mm Gabion Machine

,

Automatic PLC Control Gabion Machine

Leave a Message
Product Description

Automatic PLC Control 80*100mm Gabion Machine 2*1*1m PVC Coated Gabion Boxes



Quick Detail:



1.The mesh weaving machine is controlled by PLC control system.

2.The mesh weaving machine is designed by our Jinlida,and we have applied for patent.

3.All the parts of gabion mesh machine are processed by our own factory,no parts were sent outside to process,so the quality can be ensured.



Jinlida insists on innovating,we have studied and produced automatic gabion production line,it can make gabion box automatic from mesh weaving to edge winding mesh sheet,this system will save labour force and improve output,it has high efficiency.





Description

1.Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.

2.PLC control system touch screen is available for the hexagonal wire mesh machine.

3.Automatic stop system saves much labor force.





Why chose Jiangyin Jinlida for your projects?

1. The source of Chinese gabion structure

2.Strictly Implement and meet international standard ASTM STANDARD or BS EN STANDARD and pass

 ISO & SGS quality certificate system

3. we are the only recommend enterprise of China ministry of water resources in the field gabion structure.

4.  Member of Chinese Hydraulic Engineering Society(CHES)

5. China Institute of Water Resources

6. The most promising water conservancy brand in China

7.  Editor unit of  China gabion engineering and technology standard

8. The first gabion ethnologic brand in China

9. The largest gabion production base in China



Specification

-4H/

双绞

double twist

拉网辊

Mesh roller

Ø

-4HS/

双绞

double twist

拉网辊

Mesh roller

Ø

-4HS/

五绞

five twist

拉网辊

Mesh roller

Ø

-4H

双绞捻网速度double twist knitting speed

-4HS

五绞捻网速度

five twist knitting speed

60*85/ 28mm Ø180/ 5

















25 20
66*90/ 28mm Ø191/ 5

















25 20
70*90 /30mm Ø191/ 5 70*90/ 45mm Ø215/ 5 70*105/ 55mm Ø203.8/4 25 20
80*103/ 32mm Ø215 / 5 80*115/ 45mm Ø203/ 4 80*105/ 55mm Ø203/ 4 25 20
88*105/ 32mm Ø218/ 5 88*115/ 45mm Ø203/ 4 88*105/ 55mm Ø203/ 4 25 20
90*100/ 32mm Ø218/ 5 90*115/ 45mm Ø203/ 4 90*105/ 55mm Ø203/ 4 25 20
100*120/ 32mm Ø242/ 5 100*125 /45mm Ø217/ 4 100*115/ 55mm Ø217/ 4 25 20
110*140/ 32mm Ø219/ 4 110*126/ 45mm Ø218/ 4 110*116/ 55mm Ø218/ 4 25 20
120*140/ 32mm Ø219/ 4 120*140/ 45mm Ø295/ 5 120*130/ 55mm Ø295/ 4 25 20
Note:

1. -4H:不带伺服程序控制,-4HS:带伺服程序控制.

-4H: without servo program control, -4HS: with servo program control.

2. Ø拉网辊外径后面-4或-5为圆周上的拉网齿等分.

Mesh roller item: ‘4’ or ‘5’ means thorn nails equal parts number(how many nails rows of one roller ).

3. 网孔规格-32,-45,-55为网孔绞合部分的长度尺寸.

Double twist and five twist item: ‘32mm’, ‘45mm’, ‘55mm’ is twist length.

4. -4H型机设定每分钟理论生产速度为25个双绞网孔.

-4H machine theoretic output: 25 double twist mesh hole every minute.

5. -4HS型机设定每分钟理论生产速度为20个五绞网孔.

-4HS machine theoretic output: 20 five twist mesh hole every minute.

Application

Gabion making machine is the professional machine to produce hexagonal mesh, the mesh is widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes parcel wire mesh; It also can be used for fencing, residential and landscape protection, etc. While it is also good material which is used to make stone wire mesh cages, which are widely used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering, also it is the best material for flood.

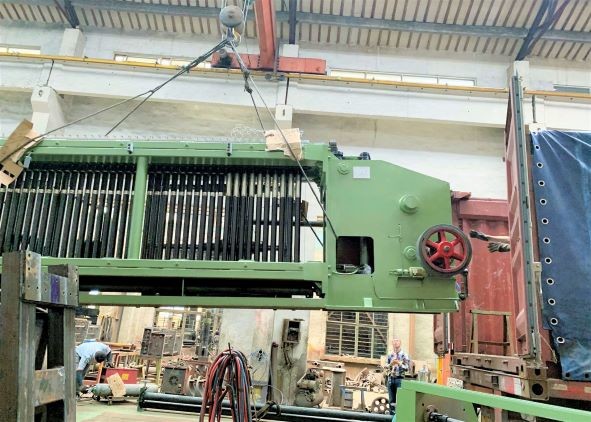

Automatic PLC Control 80*100mm Gabion Machine PVC Coated Gabion Boxes 0



Automatic PLC Control 80*100mm Gabion Machine PVC Coated Gabion Boxes 1



Advantages

1. Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.

2. Excellent quality, reasonable price and first-class service.

3. We provide 12months guarantee for all the equipment,and if customers need, we will arrange our professional technician to help install the machines in your country, and also can supply all the spare parts at cost price if customers need.

Automatic PLC Control 80*100mm Gabion Machine PVC Coated Gabion Boxes 2



Automatic PLC Control 80*100mm Gabion Machine PVC Coated Gabion Boxes 3
