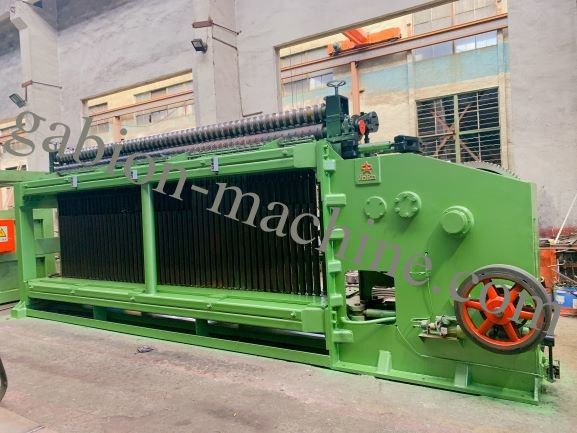

4.3mm Hexagonal  Wire Netting Weaving Machine double twisted SGS

4.3mm Hexagonal Wire Netting Weaving Machine double twisted SGS

  • High Light

    4.3mm hexagonal wire netting machine

    ,

    SGS hexagonal wire netting machine

    ,

    4.3mm wire mesh weaving machine

  • Wire Diameter (mm)
    1.6-4.0mm
  • Mesh Size
    100*120mm
  • Spindle Speed
    25r/min
  • Material
    Iron
  • Power (kW)
    22kw
  • Weight (KG)
    15000
  • Specification
    6300*1400*2400
  • Place of Origin
    China
  • Brand Name
    Jinlida
  • Certification
    CE,SGS
  • Model Number
    LNWL43-100-2
  • Minimum Order Quantity
    1 set
  • Price
    Competitive price
  • Packaging Details
    Nude packing and will be fixed in the 40'container by iron wire
  • Delivery Time
    50 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 Set/Sets per Year

4.3mm Hexagonal Wire Netting Weaving Machine double twisted SGS

Professional Custom Gabion Wire Mesh Machine With Overload Protect Clutch





Quick Detail:



1.Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project.



2. it is the good material to prevent or control flood.



Description:



△Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be

used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir

and other construction project, and it is the good material to prevent or control flood.



△Hexagonal Gabion Mesh Weaving Machine with 4M maximum working width. A Mesh recoiler is required if

need to produce in "roll" form.




Specifications:



-4H/

双绞

double twist

拉网辊

Mesh rollerØ

-4HS/

双绞

double twist

拉网辊

Mesh roller

Ø

-4HS/

五绞

three twist

拉网辊

Mesh rollerØ

-4H

双绞捻网速度double twist knitting speed

-4HS

五绞捻网速度three twist knitting speed

60*85/ 28mm Ø180/ 5

















25 20
66*90/ 28mm Ø191/ 5

















25 20
70*90 /30mm Ø191/ 5 70*90/ 45mm Ø215/ 5 70*105/ 55mm Ø203.8/4 25 20
80*103/ 32mm Ø215 / 5 80*115/ 45mm Ø203/ 4 80*105/ 55mm Ø203/ 4 25 20
88*105/ 32mm Ø218/ 5 88*115/ 45mm Ø203/ 4 88*105/ 55mm Ø203/ 4 25 20
90*100/ 32mm Ø218/ 5 90*115/ 45mm Ø203/ 4 90*105/ 55mm Ø203/ 4 25 20
100*120/ 32mm Ø242/ 5 100*125 /45mm Ø217/ 4 100*115/ 55mm Ø217/ 4 25 20
110*140/ 32mm Ø219/ 4 110*126/ 45mm Ø218/ 4 110*116/ 55mm Ø218/ 4 25 20
120*140/ 32mm Ø219/ 4 120*140/ 45mm Ø295/ 5 120*130/ 55mm Ø295/ 4 25 20
Note:

1. -4H:不带伺服程序控制,-4HS:带伺服程序控制.

-4H: without servo program control, -4HS: with servo program control.

2. Ø拉网辊外径后面-4或-5为圆周上的拉网齿等分.

Mesh roller item: ‘4’ or ‘5’ means thorn nails equal parts number(how many nails rows of one roller ).

3. 网孔规格-32,-45,-55为网孔绞合部分的长度尺寸.

Double twist and five twist item: ‘32mm’, ‘45mm’, ‘55mm’ is twist length.

4. -4H型机设定每分钟理论生产速度为25个双绞网孔.

-4H machine theoretic output: 25 double twist mesh hole every minute.

5. -4HS型机设定每分钟理论生产速度为20个五绞网孔.

-4HS machine theoretic output: 20 five twist mesh hole every minute.


Advantages:

1. We offer fine quality, competitive prices,prompt delivery and a satisfying service.



2. Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.



3. Every part of gabion mesh machine is high quality,they are assembled by skilled workers who have years of experience.
