Hexagonal Mesh Machine
Created with Pixso. Automatic Hexagonal Mesh High Speed Machine
  • name
  • name
  • name
  • name
  • name

Automatic Hexagonal Mesh High Speed Machine

Brand Name: JINLIDA
Model Number: LNWL43-120-2
MOQ: 1
Price: Competitive price
Delivery Time: 50 days
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Packaging Details:
Nude packing
Supply Ability:
200 sets/ a year
Highlight:

wire mesh making machine

,

crimped wire mesh machine

Product Description

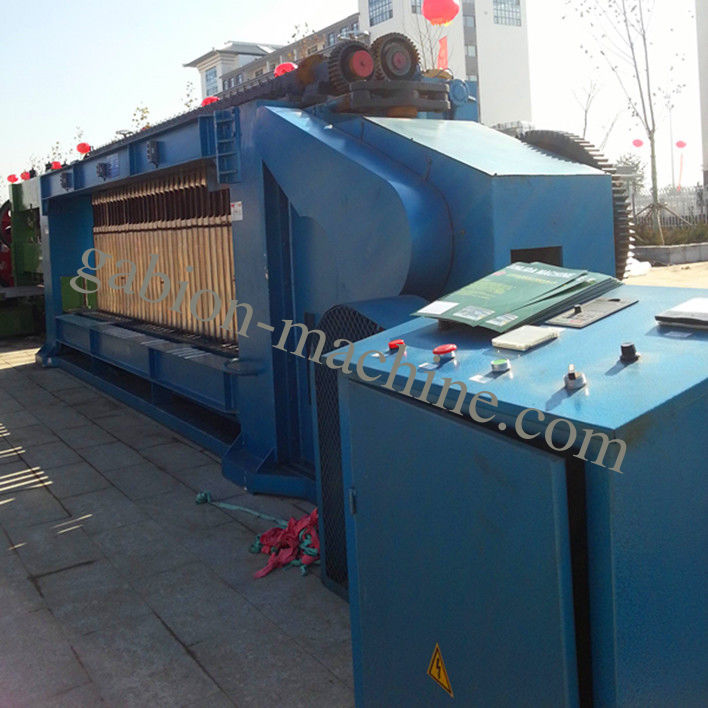

Automatic Hexagonal Mesh High Speed Machine



Quick Detail:

1.Infrared ray safety protection system

2.Max Weaving Width: 4300mm

3.Mesh size :120x140mm

4.Max Wire Diameter: 4.0mm

5.we have persevered in this area of gabion machine making for 15 years



Detail Specifications:



Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3 25 11 165
LNWL23-80-2 80X100 1.6-3 195
LNWL23-100-2 100X120 1.6-3.2 225
LNWL23-120-2 120X150 1.6-3.5 20 255
LNWL33-60-2 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80X100 1.6-3 195
LNWL33-100-2 100X120 1.6-3.2 225
LNWL33-120-2 120X150 1.6-3.5 20 255
LNWL43-60-2 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80X100 1.6-3 195
LNWL43-100-2 100X120 225
LNWL43-120-2 120X150 1.6-3.2 20 255



Gabion Box Making Machine With Infrared ray safety protection system



Automatic Hexagonal Mesh High Speed Machine 0

Automatic Hexagonal Mesh High Speed Machine 1



Gabion Box Application



Automatic Hexagonal Mesh High Speed Machine 2



JINLIDA Series Prduction Line

Automatic Hexagonal Mesh High Speed Machine 3



Tags:

crimped wire mesh machine

wire mesh making machine

wire netting machine
