Custom Hexagonal Wire Mesh Gabion Box Machine 1.6mm - 4.2mm Wire Dia.

Custom Hexagonal Wire Mesh Gabion Box Machine 1.6mm - 4.2mm Wire Dia.

  • High Light

    welding mesh machine

    ,

    wire mesh welding machine

  • Usage
    Knitting Hexagonal Wire Mesh
  • Wire Diameter
    1.6-4.2mm
  • Material
    Galvanized Iron
  • Place of Origin
    China
  • Brand Name
    Jinlida
  • Model Number
    LNWL-2
  • Minimum Order Quantity
    1
  • Price
    Competitive price
  • Packaging Details
    Nude packing
  • Delivery Time
    50 days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    200 sets/year

Custom Hexagonal Wire Mesh Gabion Box Machine 1.6mm - 4.2mm Wire Dia.

Custom Hhexagonal Wire Mesh Gabion Box Machine With 1.6mm - 4.2mm Wire Dia.





Quick Detail:



     1.The LNWL-2 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes.

     2.The gabion mesh machine, is the professional equipment that produces hexagonal wire netting.



Description:



     1.The mesh weaving machine we made adopts PLC control system and automatic oil system.



     2.It is the ideal machinery that weaves big signification,breadth portal arm, thick silk gabion mesh.



     3.For high corrosion resistance,zinc and PVC, Galfan coated is available.

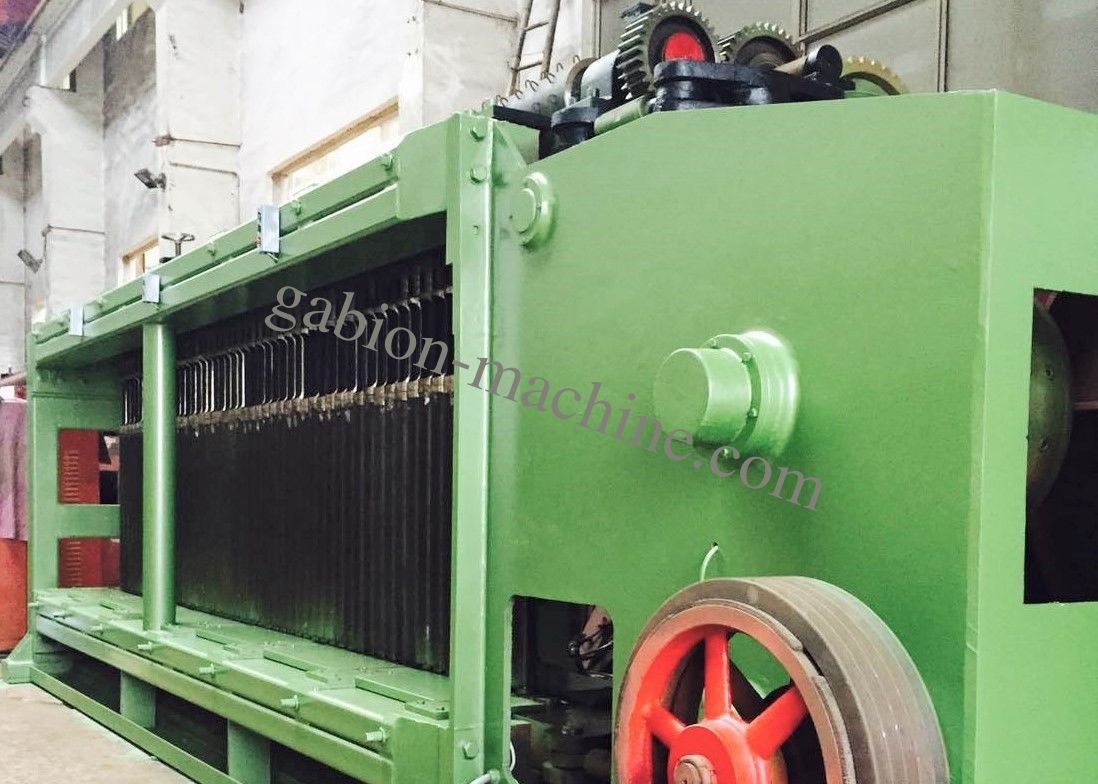

     Pic1 Gabion mesh machine

     Custom Hexagonal Wire Mesh Gabion Box Machine 1.6mm - 4.2mm Wire Dia. 0

      Pic2 Mesh roller machine& wire tension device& spring coiling machine



      Custom Hexagonal Wire Mesh Gabion Box Machine 1.6mm - 4.2mm Wire Dia. 1



Applications:



      The gabion mesh machine, is the professional equipment that produces hexagonal wire netting, its product extensively used for   petroleum, building, farming and chemical engineering industry, keep warm piping and other piping, be also used for rounding column,

  residence and park greening safeguard etc..


     Gabion mesh is still more available to manufacture the gabion mesh box and extensively used for  safeguard and backingea dike,

hillside, road, bridge and reservoir and others, it is the best material of the flood control at the same me.



Specifications:



Style

Mesh size

Width

Wire diamater

Spindle Speed

Twist

power of motor

Theoretic output

(mm)

(mm)

(mm)

(r/min)

(r )

(kw)

(m/h)

LNWL23-60-2

60X80

2300

1.6-3.2

25

3

11

165

LNWL23-80-2

80X100

1.6-4.0

3

195

LNWL23-100-2

100X120

1.6-4.0

3

225

LNWL23-120-2

120X150

1.6-4.2

20

3

255

LNWL33-60-2

60X80

3300

1.6-3.2

25

3

15

165

LNWL33-80-2

80X100

1.6-4.0

3

195

LNWL33-100-2

100X120

1.6-4.0

3

225

LNWL33-120-2

120X150

1.6-4.2

20

3

255

LNWL43-60-2

60X80

4300

1.6-3.2

25

3

22

165

LNWL43-80-2

80X100

1.6-4.0

3

195

LNWL43-100-2

100X120

1.6-4.0

3

225

LNWL43-120-2

120X150

1.6-4.2

20

3

255

LNWL43-60-3

60X80

1.6-3.2

25

5

165

LNWL43-80-3

80X100

1.6-4.0

5

195

LNWL43-100-3

100X120

1.6-4.0

5

225

LNWL43-120-3

120X150

1.6-4.2

20

5

255



Competitive Advantage:



      1. Jinlida company invented the first special equipment of double twisted wire netting making machine in China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area of gabion machine making for 15 years.



      2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to process, so the quality can be ensured.



      3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.
