Hexagonal Gabion Box Machine

Hexagonal Gabion Box Machine

  • High Light

    Gabion Making Machine

    ,

    welded wire mesh machine

  • Place of Origin
    China
  • Brand Name
    Jinlida
  • Model Number
    LNWL43-100-2
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    Nude packing
  • Delivery Time
    50-60 days
  • Payment Terms
    L/C T/T
  • Supply Ability
    200 sets/a year

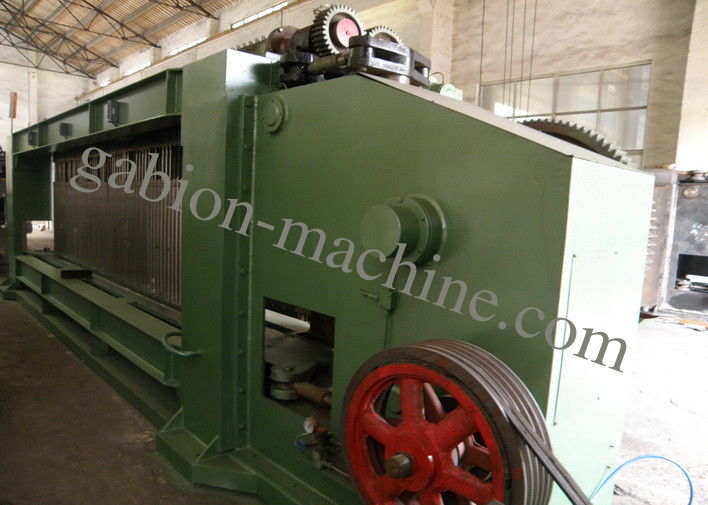

Hexagonal Gabion Box Machine

Hexagonal Gabion Box Machine





Quick Detail:

1.The gabion box machine is widely used in oil, construction, raising, chemical industry, warming piping and

etc. It is also used in fence, apartment and greening.

2.The hexagonal wire netting can be used in protect seawall, hillside, road, bridge and civil engineering.

3. It is one of the best against flooding materials.





Descrition:



New type LNWL-2 Double Twist Gabion Box Machine

This kind of machine use the seamless steel tube to increase inside diameter , so you can put more spring wire at the same time.





Specification

1. Wire diameter:1.6-4.0mm

2. Speed:225m/h

3. Mesh width:4300mm (also can be 2300mm or 3300mm)

4. Power: 15kw



The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.



We can manufacture gabion machine according to customer request.



Now all of our machine have been changed to seamless steel tube, it can increase inside diameter to put more spring wire and also can reduce the weight of machine, make machine working more fast.

And this new machine is very popular on market, we have sell more than 80 sets of machine to our China mainland, also sell to oversea such as Malaysia,Algeria.





Picture for seamless steel tube detail

Hexagonal Gabion Box Machine 0



Hexagonal Gabion Box Machine 1





Detail Specification for all style of LNWL-2 Gabion Machine

Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3 25 11 165
LNWL23-80-2 80X100 1.6-3 195
LNWL23-100-2 100X120 1.6-3.2 225
LNWL23-120-2 120X150 1.6-3.5 20 255
LNWL33-60-2 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80X100 1.6-3 195
LNWL33-100-2 100X120 1.6-3.2 225
LNWL33-120-2 120X150 1.6-3.5 20 255
LNWL43-60-2 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80X100 1.6-3 195
LNWL43-100-2 100X120 225
LNWL43-120-2 120X150 1.6-3.2 20 255





A Set Of Gabion Machine Including Below Machines:

Hexagonal Gabion Box Machine 2
