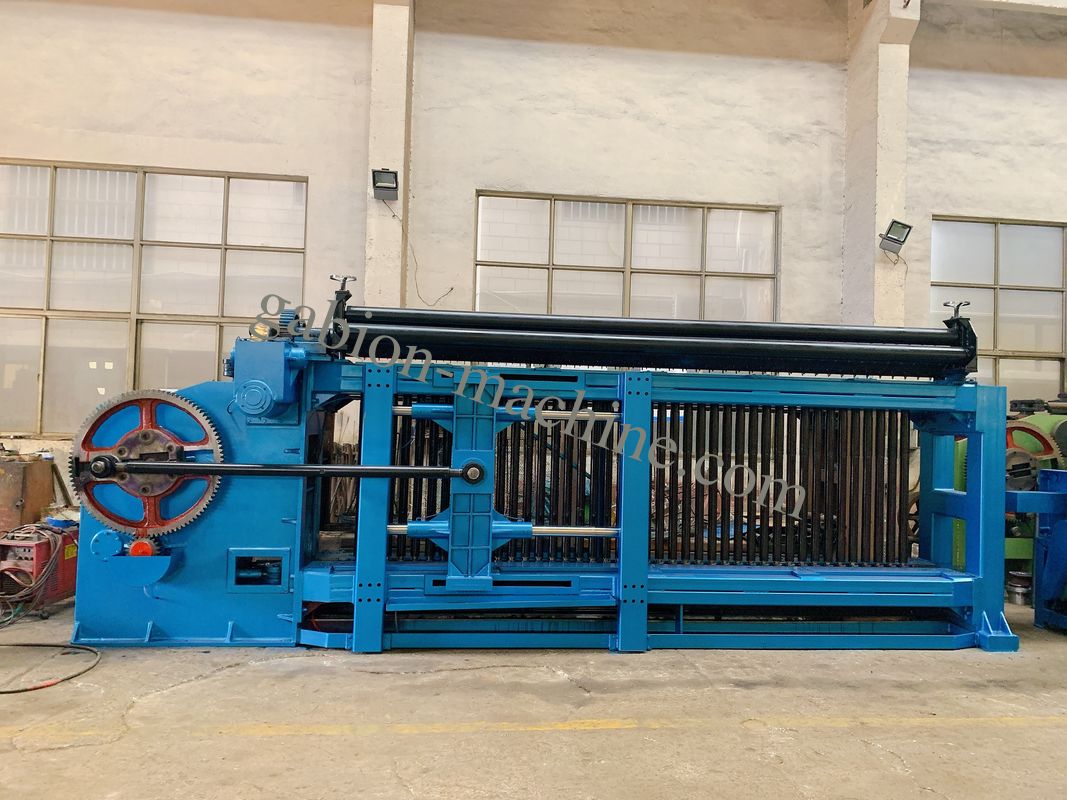

Mesh Size 120x150mm Double Twist  Wire Netting Gabion Machine

Mesh Size 120x150mm Double Twist Wire Netting Gabion Machine

  • High Light

    chicken Netting Gabion Machine


    Rust Proof Gabion Machine


    Double Twist chicken Netting Machine

  • Wire Mesh Size
  • Power
  • Weight
  • Warranty
    1 Year
  • Wire Diameter
  • Specification
  • Twist
    3 Cross
  • Theoretic Output
  • Place of Origin
  • Brand Name
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    Competitive price
  • Packaging Details
    Nude packing and will be fixed in the 40'container by iron wire
  • Delivery Time
    50 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    300 Set/Sets per Year

Mesh Size 120x150mm Double Twist Wire Netting Gabion Machine

Quick Details

Wire Diameter(mm): 1.6-4mm

Condition: New

Machine Type: Gabion Mesh Making Machine

Video outgoing-inspection: Provided

Warranty of core cpmponents: 1 Year

Core Components: PLC,Engine,Bearing,Gear,Pump

Production Capacity: 200 Sets/Year

Place of origin: Jiangsu,China

Brand Name: Jinlida

Model Number: LNWL43-100-4

Weight: 17000kg

Power: 22kw

Key Selling Points: Long Service Life

Warranty: 1 Year

After-sales Service Provided: Free spare parts,Online support,Video technical support,Field maintance and repair service

After Warranty Service: Video technical support,Online support

Applicable Industries: Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Retail,Construction works.

Specification : 6300*1400*2400mm

Mesh Size: 120*150mm

Spindle Speed: 20r/min

Theoretic Output: 255m/h

Material: iron

Twist: 3 cross

Type: LNWL43-100-4 Twist: 3 cross
Material: iron Mesh Size: 120*150mm
Theoretic Output: 255m/h Specificationn: 6400x1400x2400mm
Spindle Speed: 20r/min Warranty: 1 Year
Power: 22kw Color: customized


Supply Ability

Supply Ability:200 Set/Sets per Year


Packaging & Delivery

Packaging Details:Nude Packing and will be fixed in the 40 container by iron wire.

Port:Shanghai Port

Mesh Size 120x150mm Double Twist  Wire Netting Gabion Machine 0


Gabion Application

The product has widely purpose,with its good corrosion resistance and oxidation resistance,serves well as strengthen,protection and temperature keeping materials in the form of mesh container,stone cage,isolation wall,hillside,poultry fence in construction,petroleum,chemical,breeding.


Mesh Size 120x150mm Double Twist  Wire Netting Gabion Machine 1Mesh Size 120x150mm Double Twist  Wire Netting Gabion Machine 2


Detail Specification for all style of Gabion Machine


Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3 25 11 165
LNWL23-80-2 80X100 1.6-3 195
LNWL23-100-2 100X120 1.6-3.2 225
LNWL23-120-2 120X150 1.6-3.5 20 255
LNWL33-60-2 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80X100 1.6-3 195
LNWL33-100-2 100X120 1.6-3.2 225
LNWL33-120-2 120X150 1.6-3.5 20 255
LNWL43-60-2 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80X100 1.6-3 195
LNWL43-100-2 100X120 225
LNWL43-120-2 120X150 1.6-3.2 20 255




1.The reed pipes adopt seemless steel tube to increase inside diameter,it can put more spring wire and also can reduce the weight of machine,making machine work faster.

2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.

3.The machine can continuously work and run smoothly.It has low noise , when something wrong it will give an alarm and automatically stop.

4.It has function of frquency control of motor speed according to different of wire diameter.

5.It can count output.
