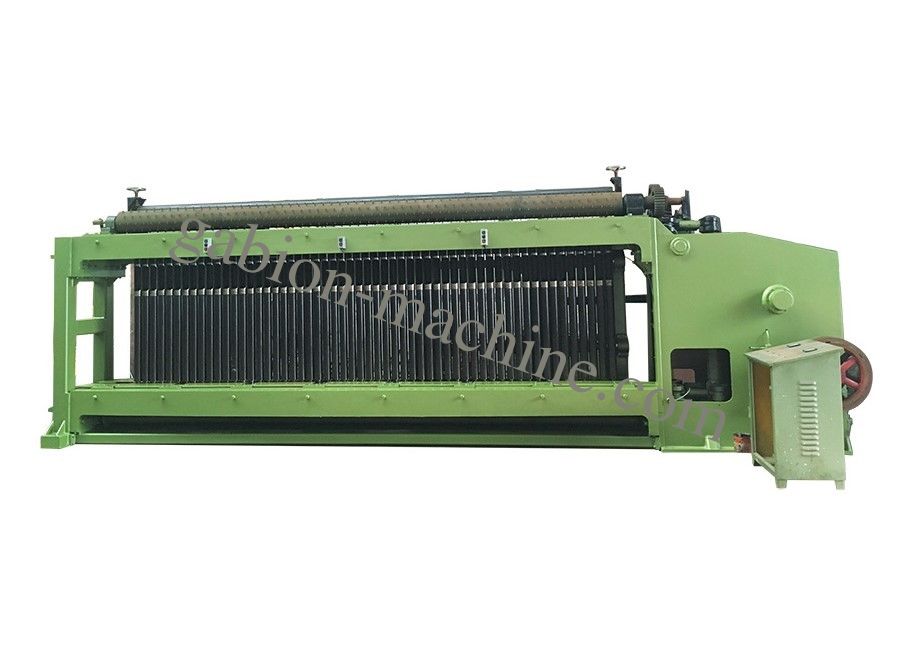

PLC Control Gabion Box Machine With Automatic Stop System / 2.5mm Wire Dia.

PLC Control Gabion Box Machine With Automatic Stop System / 2.5mm Wire Dia.

  • High Light

    automatic Gabion Box Machine

    ,

    2.5mm Gabion Box Machine

    ,

    PLC Control Gabion Box Machine

  • Type
    Automatic PLC Control
  • Additional Device
    Automatic Stop System
  • Wire Diameter
    2.5mm
  • Place of Origin
    China
  • Brand Name
    JIinlida
  • Model Number
    LNWL43-80-2
  • Minimum Order Quantity
    1
  • Price
    Competitive price
  • Packaging Details
    Nude packing
  • Delivery Time
    50 days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    200 sets/a year

PLC Control Gabion Box Machine With Automatic Stop System / 2.5mm Wire Dia.

Roll Mesh Gabion Box Machine With Automatic Stop System / 2.5mm Wire Dia.




Quick Detail:



The machine max weaving width is 4m, it can weave one 4m mesh, also can weave one 1m and one 3m, two 2m mesh, four 1m mesh. And if customers need the machine that max width is 5m, we also can produce as your demands!



Specifications:



Style Mesh Size Width Wire Diameter Spindle Speed Twist Power of Motor Theoretic Output
(mm) (mm) (mm) (r/min) (r) (kw) (m/h)
LNWL43-60-2 60×80 4300 1.6-3.2 25 3 22 165
LNWL43-80-2 80×100 1.6-4.0 195
LNWL43-100-2 100×120 1.6-4.0 225
LNWL43-120-2 120×150 1.6-4.2 20 255
LNWL50-60-2 60×80 5000 1.6-3.2 25 3 30 165
LNWL50-80-2 80×100 1.6-4.0 195
LNWL50-100-2 100×120 1.6-4.0 225
LNWL50-120-2 120×150 1.6-4.2 20 255



PLC Control Gabion Box Machine With Automatic Stop System / 2.5mm Wire Dia. 0

Gabion Box

PLC Control Gabion Box Machine With Automatic Stop System / 2.5mm Wire Dia. 1



Application:



      The gabion box machine is widely used in oil, construction, raising, chemical industry, warming piping and etc. It is also used in fence,  apartment and greening. The hexagonal wire netting can be used in protect seawall, hillside, road, bridge and civil engineering.  It is one of the best against flooding materials.

PLC Control Gabion Box Machine With Automatic Stop System / 2.5mm Wire Dia. 2



Competitive Advantages:



     1. Jinlida company invented the first special equipment of double twisted wire netting making machine in China (patent number:  ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area of gabion machine making for 15 years.



     2.Machine has the feature of rational design, simple structure, smooth running, excellent performance, reliable operation and convenient maintenance.
