Home > products > Gabion Production Line > Automatic Edge Banding Machine / Gabion Box Machine Gabion Mattress

Automatic Edge Banding Machine / Gabion Box Machine Gabion Mattress

Product Details

Place of Origin: China

Brand Name: JINLIDA

Model Number: JBM-100

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Competitive price

Packaging Details: Nude packing

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 100 sets/a year

Get Best Price
High Light:

wire mesh weaving machine

,

hexagonal wire mesh machine

Name:
Edge Banding Machine
Mesh Width:
4m
Mesh Size:
106*120mm
Wire Diameter:
2.6-4.0mm
Power:
4.7kw
Application:
Gabion Production Line
Name:
Edge Banding Machine
Mesh Width:
4m
Mesh Size:
106*120mm
Wire Diameter:
2.6-4.0mm
Power:
4.7kw
Application:
Gabion Production Line
Automatic Edge Banding Machine / Gabion Box Machine Gabion Mattress

Automatic Edge Banding Machine / Gabion Box Machine Gabion Mattress



Quick Detail:



1. The max width: 4m

2. This automatic edge banding machine is designed and developed by our JINLIDA, and we have applied for patent.

3. It is used for winding up the gabion mesh sheets edge, helping make the gabion box and gabion mattress.




Description:

Features: Automatic system,Beautiful edge, automatic operation, turns of edge rolling is adjustable, efficient.

1. Usage: Gabion production line
2. Application: Winding up the edge of gabion box




Specifications:

Name PLC control edge banding machine Available Width 4000mm
Dimension 5200 x 800 x 1400mm Wire Diameter 2.6-4.0mm
Power 4.7kw Weight 1600kg



Wrapped edge machine used in gabion production line

The wrapped edge machine is designed and developed by us, and it has applied for patent. It is used for

selvedging, to make the twisting wire heads after mesh sheared to be rolled on a thick side wire, after

machine treated. The new edge will be flat, strength, smooth and beautiful. The technology is advanced and

 the machine is adjustable, it can satisfy various requirements of different edges.

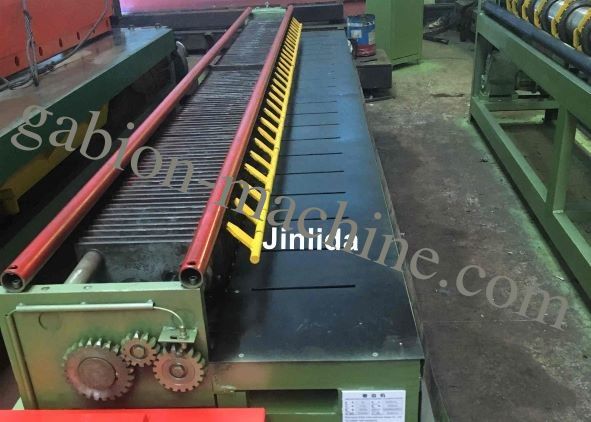

Picture for 4m Edge Banding Machine

Automatic Edge Banding Machine / Gabion Box Machine Gabion Mattress 0

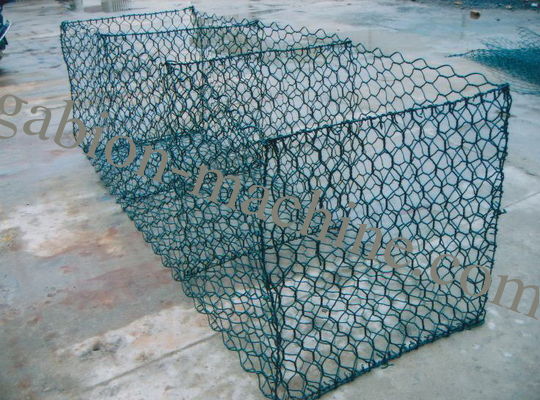

Application: Gabion Box

Automatic Edge Banding Machine / Gabion Box Machine Gabion Mattress 1

Wrapped Edge Machine Products
Automatic Edge Banding Machine / Gabion Box Machine Gabion Mattress 2
Automatic Edge Banding Machine / Gabion Box Machine Gabion Mattress 3


Competitive Advantage:



1. Our factory improve the existing beading machine, when the mesh sheets put in the machine, it will be

easier because of there are guider's helping.
2.
Precise design of complete machine, compact conformation, handiness and simplicity.

3. Mesh is well-arranged and distributed evenly and orderly.
