High-Efficiency Gabion Box Machine for Precision Wire Mesh Manufacturing

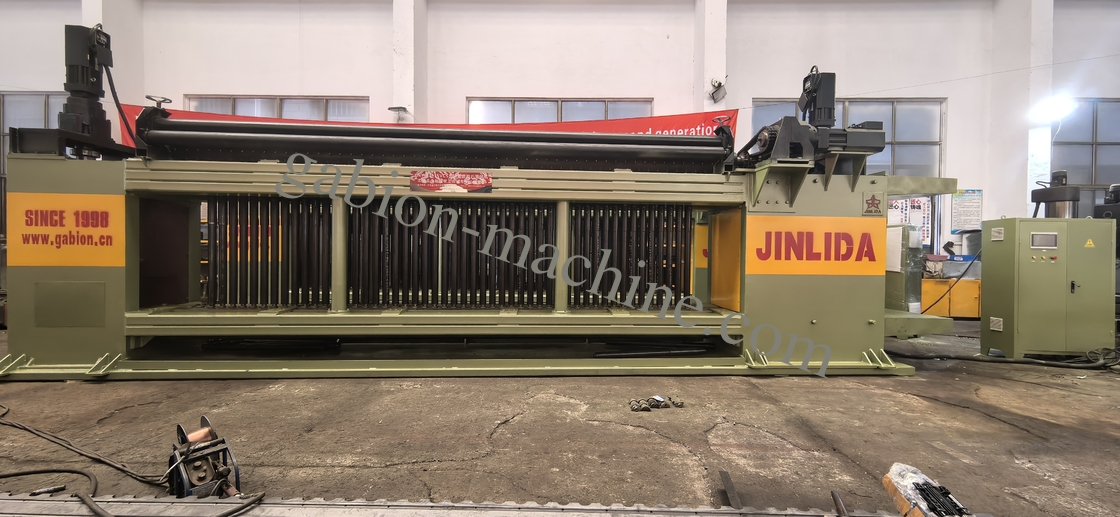

Jinlida CNC Gabion Machine & Automatic Production Line

The Jinlida CNC Gabion Machine is an advanced manufacturing system designed for the efficient production of hexagonal double-twisted wire mesh and ready-to-use gabion boxes. With 27 years of expertise, Jinlida combines precision engineering, durable construction, and intelligent automation to meet the demanding requirements of large-scale infrastructure and environmental projects.

Key Features

• Fully Automated Production: Unlike semi-manual operations, Jinlida integrates wire pay-off, mesh weaving, edge-wrapping, cutting, flattening, folding, and bundling into one continuous process.

• High Efficiency & Accuracy: The CNC control system ensures consistent mesh size, smooth operation, and high production speed, significantly reducing labor costs.

• Durable & Reliable: Built with reinforced steel and precision welding, the machine guarantees long service life and stable operation under continuous load.

• Flexible Mesh Specifications: Capable of producing multiple sizes such as 60×80mm, 80×100mm, and 100×120mm, widely used in different engineering fields.

• Eco-Friendly Solutions: The gabion boxes produced are ideal for green construction, blending structural stability with environmental sustainability.

Application Fields

• Slope stabilization and erosion control

• River training and hydraulic engineering

• Retaining walls and roadbed protection

• Coastal and ecological engineering projects

Technical Specifications

GLD-2 Wire Tensioning Device

Netting roll winding machine

GLD-2 Spring Coiling Machine(PLC Control)

Case Study – Nepal

Our machines are currently being used in Nepal for riverbank protection and hillside reinforcement projects, where the high-output production line has enabled contractors to meet strict deadlines while maintaining uniform mesh quality. This partnership demonstrates Jinlida’s global reach and commitment to customer success.

Products of the Production Line

• Hexagonal double-twisted wire mesh panels

• Assembled gabion boxes in standard dimensions

• Mattresses for hydraulic engineering projects

• Folded & bundled gabion units ready for transport and installation
