5.5kw High Efficiency Gabion Mesh Packing Machine With Electrical Systems

5.5kw High Efficiency Gabion Mesh Packing Machine With Electrical Systems

  • High Light

    netting machine

    ,

    wire mesh machines

  • Type
    Electrical System
  • Power
    5.5kw
  • Weight
    300kg
  • Voltage
    380V
  • Product
    Gabion Packing Machine
  • Pressing Mesh
    3*1*1m
  • Place of Origin
    China
  • Brand Name
    Jinlida
  • Model Number
    GMP-100
  • Minimum Order Quantity
    1
  • Price
    Competitive price
  • Packaging Details
    Nude packing
  • Delivery Time
    30 days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    200 sets/ a year

5.5kw High Efficiency Gabion Mesh Packing Machine With Electrical Systems

5.5kw High Efficiency Gabion Mesh Packing Machine With Electrical Systems





Quick Detail:



1. Power:5.5kw
2. Work Pressure: 380V

3. Max Packing Size: 2mx1mx1m (packing size also can produce as your requirements)
4.Overall size: 2340mmx1050mmx2350mm.

5.Weight: 300kg

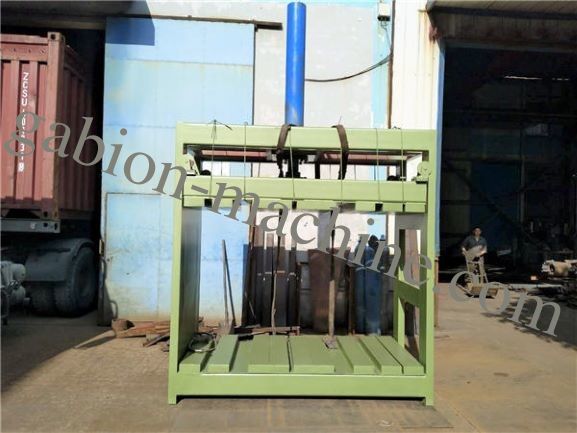

Gabion mesh Packing Machinery is dedicated for gabion mesh's packing, press the gabion to smaller CBM.

The machine has an independent power sector and electrical systems, using the button to centralized

control. The machine consists of rack, pressure plate, oil cylinder, oil pump unit, tank, electrical box and so

on. It can produce as your requirement.



We can produce the packing size as your requirements.

5.5kw High Efficiency Gabion Mesh Packing Machine With Electrical Systems 0



Products of Packing Machine

5.5kw High Efficiency Gabion Mesh Packing Machine With Electrical Systems 1



Specifications:



Rated Pressure 80KN Working Stroke 700mm
Pressure plate downwards running speed ≥35mm/s Pressure plate upwards running speed ≥50mm/s
Machine packing size (L*W*H) 3700x2450×1250mm Packing size of gabion mesh 2000×1000×1000mm
Hydraulic system working pressure 5MPa Hydraulic oil 32# hydraulic oil
Machine Power 5.5Kw Working Pressure 380V



You can see gabion packing machine working on Youtube:

https://youtu.be/xoeQnaCPtQo



 Competitive Advantages:

1. All the parts of netting sheet cutting machine are processed by our own factory, no parts were send to

outside to process, so the quality can be ensured.



2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
