Automatic Hydraulic Gabion Mesh Packing Machine CE Certificeta 380V 5.5KW

Place of Origin China
Brand Name Jinlida
Model Number GMP-100
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 30 days
Payment Terms L/C,T/T
Supply Ability 200 sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Automatic Certification CE/ISO9001
Voltage 380V Power 5.5KW
Name Gabion Packing Machine Usage Pressing Mesh
High Light

Gabion Mesh Making Machine


netting machine

Leave a Message
Product Description

Profrssional Gabion Mesh Packing Machine , Automatic Gabion Netting Hydraulic



Quick Detail:


    1. Overall size: 2340mm*1050mm*2350mm
    2. Power: 5.5kw
    3. Max Packing Size: 2m*1m*1m (packing size also can produce as your requirements)
    4. Work Pressure: 380V
    5. Weight: 300kg



    Gabion mesh Packing Machinery is dedicated for gabion mesh's packing, press the gabion to smaller CBM.

The machine has an independent power sector and electrical systems, using the button to centralized

control. The machine consists of rack, pressure plate, oil cylinder, oil pump unit, tank, electrical box and so

on. It can produce as your requirement.


Rated Pressure 80KN Working Stroke 700mm
Pressure plate downwards running speed ≥35mm/s Pressure plate upwards running speed ≥50mm/s
Machine packing size (L*W*H) 3700x2450×1250mm Packing size of gabion mesh 2000×1000×1000mm
Hydraulic system working pressure 5MPa Hydraulic oil 32# hydraulic oil
Machine Power 5.5Kw Working Pressure 380V

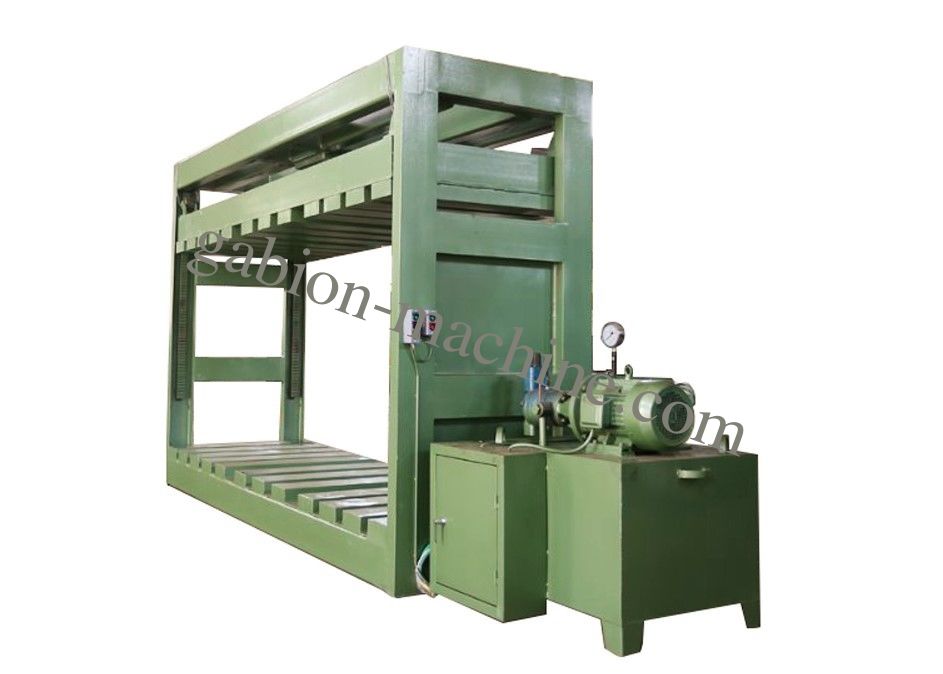

Automatic Hydraulic Gabion Mesh Packing Machine CE Certificeta 380V 5.5KW 0


Operating principle


       When the machine work, oil pump unit provide the pressure oil via safety valve limit the pressure and enter

manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder

via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to

tank via reversing valve. When Manual reversing valve work in the middle, the up and down oil of oil cylinder will be closed by reversing valve, pressure plate can keep pressure and stay on anywhere, oil cylinder discharge loads via reversing valve, when reversing valve work on the right, pressure oil enter down part of oil cylinder pull pressure plate run upwards, the up part oil of the oil cylinder flow back to tank via reversing valve.

      Above of the oil cylinder arranges the middle device, can decrease the pressure and run to the up limit.


Competitive Advantages:


1. All the parts of netting sheet cutting machine are processed by our own factory, no parts were sent to

outside to process, so the quality can be ensured.


2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
