Double Twist Gabion Mesh Machine 5000mm Wire Netting 5.0mm PVC Wire

Place of Origin China
Brand Name JINLIDA
Model Number LNWL4
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 50 days
Payment Terms L/C,T/T
Supply Ability 200 sets/ a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gabion Mesh Machine Mesh Width 5000mm
Mesh Size 100*120mm Wire Diameter 4.0mm
Speed 225m/h Application Landscape Engineering
High Light

welding mesh machine

,

wire mesh welding machine

Leave a Message
Product Description

Double Twist Gabion Mesh Machine 5000mm Wire Netting 5.0mm PVC Wire





Quick Detail:



Gabion mesh machine is also known as heavy duty hexagonal wire mesh machine, which is professional equipment to produce hexagonal wire mesh.



Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.



Description:



1.Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.



2.PLC control system touch screen is available for the hexagonal wire mesh machine.



3.Automatic stop system saves much labor force.



We can manufacture gabion machine according to customer request.



Specifiactions

Overall Size 7850×1600 ×2300mm Mesh Size 100×120mm
Power 30kw Weight 14000kg
Mesh Width 5000mm Max Wire Diameter 5.0mm pvc wire
Automatic oil system
PLC control system touch screen(option)
Automatic stop system(option)
specialized pressing device(option)
Infrared ray safety protection device(option)


Gabion Application

Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.

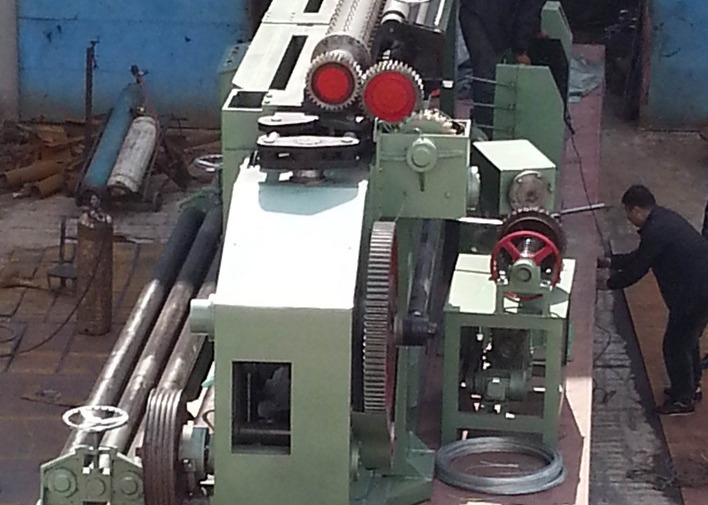

Gabion Machine Working

Double Twist Gabion Mesh Machine 5000mm Wire Netting 5.0mm PVC Wire 0



Gabion Machine Packing

Double Twist Gabion Mesh Machine 5000mm Wire Netting 5.0mm PVC Wire 1



Gabion Box Application

Double Twist Gabion Mesh Machine 5000mm Wire Netting 5.0mm PVC Wire 2



Competitive Advantage:



1. Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.



2. We have 18 years export experience establishing trade with more than 30 countries.



3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
