Home > products > Gabion Machine > Hexagonal Mesh Gabion Machine 100mmx120mm For Zinc And PVC Coated Wire

Hexagonal Mesh Gabion Machine 100mmx120mm For Zinc And PVC Coated Wire

Product Details

Place of Origin: China

Brand Name: Jinlida

Model Number: LNWL43-100-2

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Competitive price

Packaging Details: Nude packing

Delivery Time: 50 days

Payment Terms: L/C,T/T

Supply Ability: 200 sets/ a year

Get Best Price
High Light:

gabion mesh machine

,

coiling spring machine

Mesh Size:
100×120mm
Materisl:
Zinc And PVC Coated Wire
Color:
Customized
Mesh Size:
100×120mm
Materisl:
Zinc And PVC Coated Wire
Color:
Customized
Hexagonal Mesh Gabion Machine 100mmx120mm For Zinc And PVC Coated Wire

Hexagonal Mesh Gabion Machine 100mmx120mm For Zinc And PVC Coated Wire





Quick Detail:



     1. The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes.

     2. The possible coatings are heavily galvanized and zinc.

     3. For high corrosion resistance, zinc and PVC coated wire is available.



Parameter:

     1. Width single 4300mm
     2. Mesh size 100x120mm
     3. Material galvanized or PVC


Descrition:



     The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh

sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC

coated wire is available.



    Jinlida series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.

We have 15 years export experience establishing trade with more than 30 countries, and ,

DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.



Gabion Application:



    Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.



Specifications:



Style Mesh size Width Wire diamater Spindle Speed Twist power of motor Theoretic output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
LNWL43-60-2 60X80 4300 1.6-3.2 25 3 22 165
LNWL43-80-2 80X100 1.6-4.0 3 195
LNWL43-100-2 100X120 1.6-4.0 3 225
LNWL43-120-2 120X150 1.6-4.2 20 3 255
LNWL43-60-3 60X80 4300 1.6-3.2 25 5 22 165
LNWL43-80-3 80X100 1.6-4.0 5 195
LNWL43-100-3 100X120 1.6-4.0 5 225
LNWL43-120-3 120X150 1.6-4.2 20 5 255





Picture for hexagonal mesh machine working

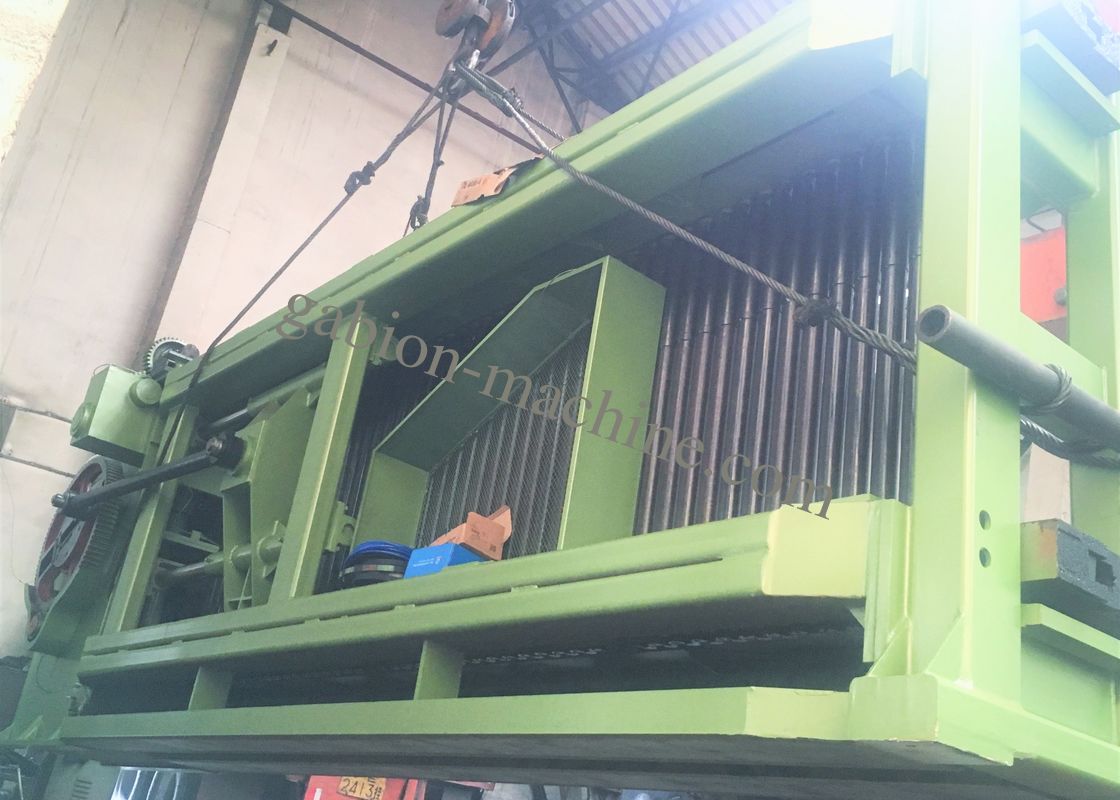

1. Mesh machine weaving mesh

 Hexagonal Mesh Gabion Machine 100mmx120mm For Zinc And PVC Coated Wire 0

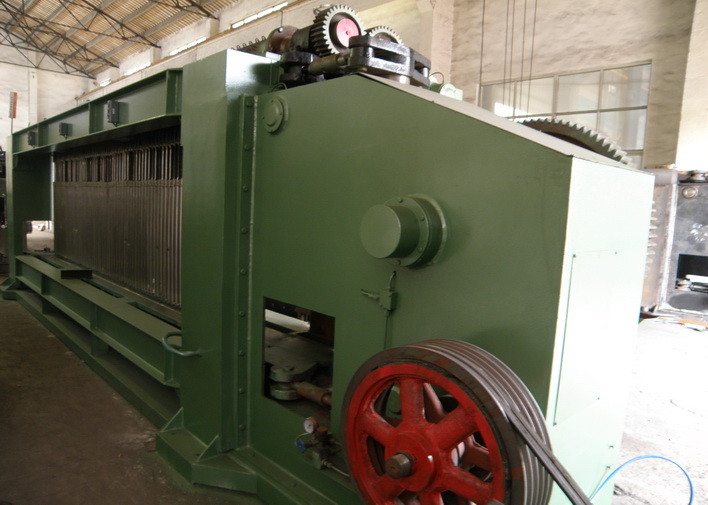

2. Spring coiling machine working

Hexagonal Mesh Gabion Machine 100mmx120mm For Zinc And PVC Coated Wire 1



 3. Wire Pay Off System Working

Hexagonal Mesh Gabion Machine 100mmx120mm For Zinc And PVC Coated Wire 2



 Competitive Advantages:



     1. Jinlida company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of g abion machine making for 15 years.



     2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

process, so the quality can be ensured.



     3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
