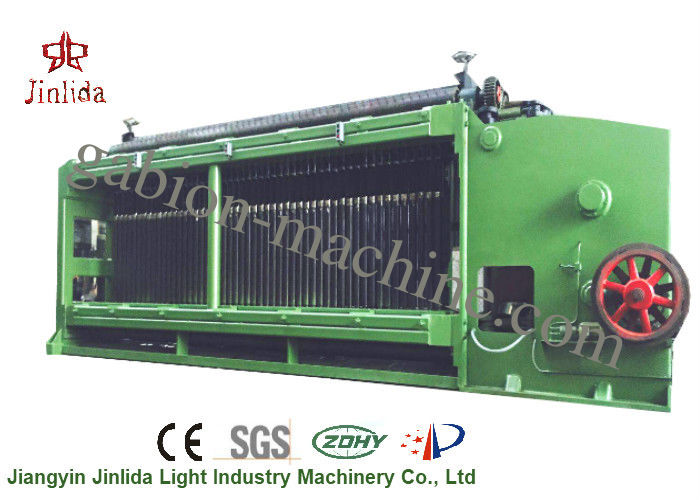

Automatic Gabion Mesh Machine Width 4300mm Wire Diameter 2.6-3.2mm CE

  • Automatic Gabion Mesh Machine Width 4300mm Wire Diameter 2.6-3.2mm CE
  • Automatic Gabion Mesh Machine Width 4300mm Wire Diameter 2.6-3.2mm CE
  • Automatic Gabion Mesh Machine Width 4300mm Wire Diameter 2.6-3.2mm CE
Place of Origin China
Brand Name Jinlida
Certification CE
Model Number LNWL43-90-2ZX
Minimum Order Quantity 1 SET
Packaging Details Nude packing
Delivery Time 50-60 days
Payment Terms L/C T/T
Supply Ability 200 sets/a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Diameter 2.6-3.2mm Width 4300mm
Material Iron
High Light

gabion mesh machine

,

Gabion Box Machine
Leave a Message
Product Description

High Speed Automated Gabion Machine CE , Gabion Mesh Machine


Quick Detail:

     1.The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes.


     2.The possible coatings are heavily galvanized and zinc.


     3.For high corrosion resistance, zinc and PVC, galfan coated wire is available.


Specifications

Style Size Width Diameter Spindle Speed Power of Motor Theoretic Output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL43-60-2 60×80 4300 1.6-3.2 25 22 165
LNWL43-80-2 80×100 1.6-4.0 195
LNWL43-100-2 100×120 1.6-4.0 225
LNWL43-120-2 120×150 1.6-4.2 20 255


Description:

    This kind of machine use the seamless iron tube to increase inside diameter , so you can put more spring wire at the same time. We improved the structure according Italy machine.

    The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
    We can manufacture gabion machine according to customer request.

   Now all of our double rack drive gabion machine also have been changed to seamless iron tube, it can increase inside diameter to put more spring wire and also can reduce the weight of machine, make machine working more fast.


   And this new machine is very popular on market, we have sold more than 80 sets of machine to our China mainland, also sell to oversea such as Malaysia, Algeria.


Picture for hexagonal mesh machine working
Automatic Gabion Mesh Machine Width 4300mm Wire Diameter 2.6-3.2mm CE 0
 Automatic Gabion Mesh Machine Width 4300mm Wire Diameter 2.6-3.2mm CE 1

Detail Specification for all style of LNWL-ZX Gabion Machine

Style Mesh Size Width Wire Diamater Spindle Speed Twist Power of Motor Theoretic Output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
LNWL43-60-2ZX 60X80 4300 1.6-3.2 25 3 22 165
LNWL43-80-2ZX 80X100 1.6-4.0 3 195
LNWL43-100-2ZX 100X120 1.6-4.0 3 225
LNWL43-120-2ZX 120X150 1.6-4.2 20 3 255
LNWL43-60-3ZX 60X80 4300 1.6-3.2 25 5 22 165
LNWL43-80-3ZX 80X100 1.6-4.0 5 195
LNWL43-100-3ZX 100X120 1.6-4.0 5 225
LNWL43-120-3ZX 120X150 1.6-4.2 20 5 255


Gabion Machine Packing
Automatic Gabion Mesh Machine Width 4300mm Wire Diameter 2.6-3.2mm CE 2



Advantages:



   1.Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.



   2.We have 15 years export experience establishing trade with more than 30 countries.



   3.All the parts of gabion mesh machine are produced by our Jinlida, no parts were sending outside to produce, so we can guarantee the quality.
