Home > products > Hexagonal Mesh Machine > Heavily Galvanized Galfan And PVC Coated Hexagonal Gabion Mesh Machine 15t

Heavily Galvanized Galfan And PVC Coated Hexagonal Gabion Mesh Machine 15t

Product Details

Place of Origin: China

Brand Name: Jinlida

Model Number: LNWL4

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Packaging Details: Nude packing

Delivery Time: 50-60 days

Payment Terms: L/C T/T

Supply Ability: 200 sets/year

Get Best Price
High Light:

wire mesh making machine

,

crimped wire mesh machine

Material:
Galvanized Galfan And PVC Coated
Weight:
15t
Warranty:
1 Year
Product Name:
Wire Mesh Making Mahcine
Mesh Width:
5000mm
Mesh Size:
100*120mm
Material:
Galvanized Galfan And PVC Coated
Weight:
15t
Warranty:
1 Year
Product Name:
Wire Mesh Making Mahcine
Mesh Width:
5000mm
Mesh Size:
100*120mm
Heavily Galvanized Galfan And PVC Coated Hexagonal Gabion Mesh Machine 15t

Heavily Galvanized Galfan And PVC Coated Hexagonal Gabion Mesh Machine





Quick Detail:

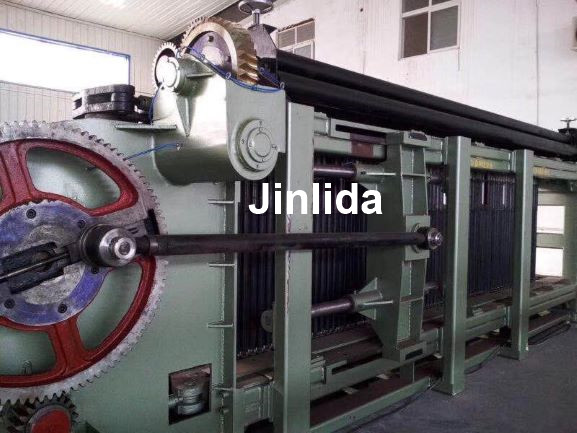

Machine body is consisted of upper and below dragging plates stand( ③and ④ ), machine head box ( ① ) and back bracket( ② ).

The four part is finishing with specific technology on dedicated equipment.

Heavily Galvanized Galfan And PVC Coated Hexagonal Gabion Mesh Machine 15t 0

Description:



New type LNWL4 Double Twist Gabion Box Machine

This kind of machine use the seamless iron tube to increase inside diameter, so you can put more spring wire at the same time.



 Now all of our machine have been changed to seamless iron tube, it can increase inside diameter to put more spring wire and also can reduce the weight of machine, make machine working more fast.

And this new machine is very popular on market, we have sold more than 80 sets of machine to our China mainland, also sell to oversea such as Malaysia, Algeria.



Picture for seamless iron tube detail

Heavily Galvanized Galfan And PVC Coated Hexagonal Gabion Mesh Machine 15t 1 Heavily Galvanized Galfan And PVC Coated Hexagonal Gabion Mesh Machine 15t 2



Gabion Machine Products

Heavily Galvanized Galfan And PVC Coated Hexagonal Gabion Mesh Machine 15t 3



Detail Specification for all style of LNWL-2 Gabion Machine

Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL4 60X80 5000 1.6-2.8 25 30 165
80X100 1.6-3 195
100X120 225
120X150 1.6-3.2 20 255
