Gabion Box Automated Edge Bander Machine With 4.0mm Wire Diameter

Place of Origin China
Brand Name Jinlida
Model Number JBM-100
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 50 days
Payment Terms L/C,T/T
Supply Ability 100 sets/a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Wrapped Edge Banding Machine Usage Gabion Production Line
Wire Diameter 2mm-4mm Dimension 5200*800*1400mm
Weight 1600kg Control PLC System
High Light

mesh bending machines

,

Portable Edge Bander

Leave a Message
Product Description

Gabion Box Automated Edge Bander Machine With 4.0mm Wire Diameter





Quick Detail:



1. This Border Reinforcement Machine is dedicated for hexagonal wire netting;

2. it is low price and high quality, better than the similar Japanese products.

3. It can crimp beautiful side and save much labor, and curling pitch can be adjusted according to the mesh.



Descrition:

1. Usage: Gabion production line
2. Application: Wrapped the edge of gabion box


Wrapped edge machine used in gabion production line

The wrapped edge machine is designed and developed by us, and it has applied for patent. It is used for


selvedging, to make the twisting wire heads after mesh sheared to be rolled on a thick side wire, after

machine treated. The new edge will be flat, strength, smooth and beautiful. The technology is advanced and

 the machine is adjustable, it can satisfy various requirements of different edges.

Features: Beautiful edge, automatic operation, turns of edge rolling is adjustable, efficient.

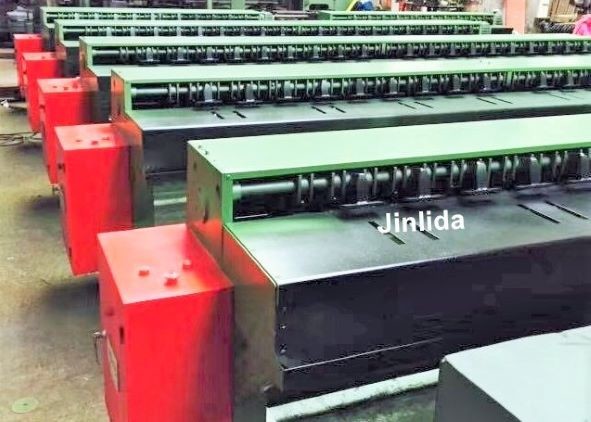

Picture for Wrapped Edge Machine

Gabion Box Automated Edge Bander Machine With 4.0mm Wire Diameter 0



Controller For Wrapped Edge Machine
Gabion Box Automated Edge Bander Machine With 4.0mm Wire Diameter 1

Wrapped Edge Machine Products
Gabion Box Automated Edge Bander Machine With 4.0mm Wire Diameter 2
Gabion Box Automated Edge Bander Machine With 4.0mm Wire Diameter 3




Specifications:



Condition New Available Width 4000mm
Dimension 5200 x 800 x 1400mm Wire Diameter 2-4mm
Power 4.7kw Weight 1600kg



Competitive Advantage:



1. Our factory improve the existing beading machine, when the mesh sheets put in the machine, it will be

easier because of there are guider's helping.


2. It also has enter device for side wire net, helping side wire net enter edge curl position more convenience.
