Product Details
Place of Origin: China
Brand Name: Jinlida
Model Number: LNWL43-80-2ZX
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Nude packing and will be fixed in the container by iron wire
Delivery Time: 45-50days
Supply Ability: 200 sets/year
Name: |
Wire Mesh Machine |
Mesh Width: |
4300mm |
Mesh Size: |
80x100mm |
Usage: |
Chain Link Fence |
Name: |
Wire Mesh Machine |
Mesh Width: |
4300mm |
Mesh Size: |
80x100mm |
Usage: |
Chain Link Fence |
Brief Introduction:

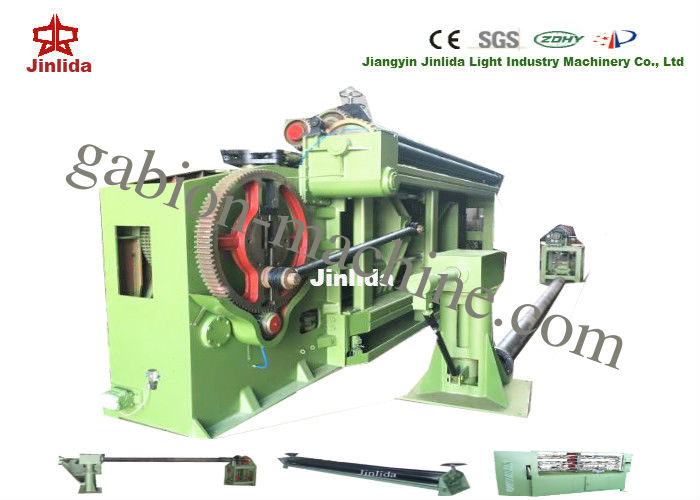

Gabion machine is also known as hexagonal wire netting machine, which is the professional machine to produce hexagonal wire mesh.
Packing&Delivery:
Packing Details: Nude packing and will be fixed in the 40'container by iron wire, make sure it is safe on passage.
Lead Time: 50 days
Principle of Mechanics:
Half gears spin clockwise and anticlockwise to weave mesh.
Description:
1.Small specification mesh and thick wire, seine roller has to reinforce compressive stress to match the mesh.
2.If coiling wires are ran out, the machine will stop automatically.
3.Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.
Specifications:
| Overall Size | 7850×1600 ×2300mm | Mesh Size | 80mm×100mm |
| Power | 22kw | Weight | 14t |
| Mesh Width | 4300mm | Max Wire Diameter | 4.2mm |
| Automatic oil system | |||
| PLC control system touch screen(option) | |||
| Automatic stop system(option) | |||
| specialized pressing device(option) | |||
| Infrared ray safety protection device(option) | |||
Competitive Advantages:
1.Precise design of complete machine, compact conformation, handiness and simplicity.
2.All the parts of gabion mesh machine are produced by our Jinlida, no parts were sending outside to produce, so we can guarantee the quality.
3.Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.
*In order to quote you right price, please supply us more of your specification requirements such as: mesh size, mesh width, wire diameter and so on.
