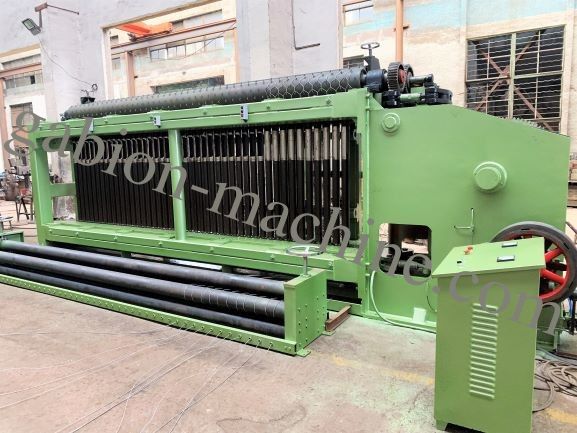

Adjusted 3.0mm Wire Dia 100x120mm Gabion Mesh Machine LNWL4 Rockfall Protection

Product Details

Place of Origin: China

Brand Name: Jinlida

Certification: CE, ISO9001, SGS

Model Number: LNWL-4h

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Nude packing and will be fixed by iron wire in 40' container

Delivery Time: 45 days

Payment Terms: L/C, T/T

Supply Ability: 200 sets per year

Get Best Price
Highlight:

wire mesh making machine

,

wire mesh welding machine

Name:
Gabion Mesh Machine LNWL4
Warranty:
1 Year
Wire Diameter:
3.0mm
Mesh Size:
100x120mm
Name:
Gabion Mesh Machine LNWL4
Warranty:
1 Year
Wire Diameter:
3.0mm
Mesh Size:
100x120mm
Adjusted 3.0mm Wire Dia 100x120mm Gabion Mesh Machine LNWL4 Rockfall Protection



Quick Details:



        The weaving mesh speed of LNWL4 adds to 60 moves per minute, in this way, efficiency improves one third of old machines.



Packing&Delivery:



        Packing Details: Nude packing and will be fixed in the 40'container by iron wire


        Delivery Time: 45 days



Specifications:

Style Mesh Size Width Wire Diameter Spindle Speed Power of Motor Theoretic Output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL4-60 60×80 4300 1.6-3.2 25 22 165
LNWL4-80 80×100 1.6-4.0 195
LNWL4-100 100×120 1.6-4.0 225
LNWL4-120 120×150 1.6-4.2 20 255



Description:

      1. The wire netting machine we made adopts PLC control system and automatic oil system.

      2.It can weave 3.0mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.



      3.Nodular cast iron is used by new machine, good toughness and wear-resisting.


      4.Adjustment of structure no longer be used in rack and big connecting rod, easier and more reliable to operate.





Advantages:



  1.According to the products and raw materials appropriately adjust the speed and reduce rate of broken.



  2. Mesh is well-arranged and distributed evenly and orderly.



      3.Simple operation.
