PLC Control Automatic Gabion Machine 3.2mm Wire PVC Coated Stone Gabion Boxes

Product Details

Place of Origin: China

Brand Name: JINLIDA

Certification: ISO9001, ISO14000

Model Number: LNWL4

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Competitive price

Packaging Details: Nude packing and will be fixed in 40' OT

Delivery Time: 40 days after order confirmed

Payment Terms: L/C,T/T

Get Best Price
High Light:

PLC Control Automatic Gabion Machine

,

Stone Gabion Boxes Machine

,

Wire PVC Coated Gabion Machine

Name:
Gabion Machine
Mesh Size:
102*1300mm
Mesh Width:
3300mm
Wire Diameter:
3.2mm
Speed:
225m/h
Application:
PVC Coated Stone Gabion Boxes
Name:
Gabion Machine
Mesh Size:
102*1300mm
Mesh Width:
3300mm
Wire Diameter:
3.2mm
Speed:
225m/h
Application:
PVC Coated Stone Gabion Boxes
PLC Control Automatic Gabion Machine 3.2mm Wire PVC Coated Stone Gabion Boxes

PLC Control Automatic Gabion Machine 3.2mm Wire PVC Coated Stone Gabion Boxes



Gabion machine is also known as hexagonal wire netting machine, which is the professional machine to produce hexagonal wire mesh.



Quick Detail:





1.The mesh weaving machine we made adopts PLC control system and automatic oil system.

2.It is the ideal machinery that weaves big signification, breadth portal arm, thick silk gabion mesh.

3.For high corrosion resistance, zinc and PVC, Galfan coated is available.





Specifications



Overall Size

7650×1600 ×2300mm

Mesh Size

106×130mm

Power

22kw

Weight

14000kg

Mesh Width

3300mm

Wire Diameter

3.2mm

Automatic oil system

PLC control system touch screen(option)

Automatic stop system(option)

specialized pressing device(option)

Infrared ray safety protection device(option)



gabion boxes

WIRE MESH

Mesh opening

60x80mm, 80 x 100 mm, 100x120mm

Wire size

2.0mm, 2.2mm, 2.4mm, 2,7 mm, 3.0mm, 3.2mm, etc.

 Tolerance

Lenght

± 3%

Width

± 5%

Height

± 5%

Materials

High and hot dipped galvanized low carbon steel wires, galfan(Zn 5%Al), pvc coated

Thickness of pvc coating: 0.5mm



Description



1.It uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.

2.The machine is supposed to be in continuous and smooth operation, saving much labour force.It has low noise and automatic stop system.If coiling wires are ran out,the machine will stop automatically.

3.The LNWL2 series mesh weaving machines have been designed to make gabion mesh of various widths and mesh sizes.



Application

The gabion machine is the professional equipment that produces hexagonal mesh, its product is widely used in petroleum, building, farming and chemical engineering industry, keep warm piping and other piping, still be applicable to the river embankment the protection, coast to manage, and the assisting of tunnel engineering and breakwater establish the etc.

PLC Control Automatic Gabion Machine 3.2mm Wire PVC Coated Stone Gabion Boxes 0

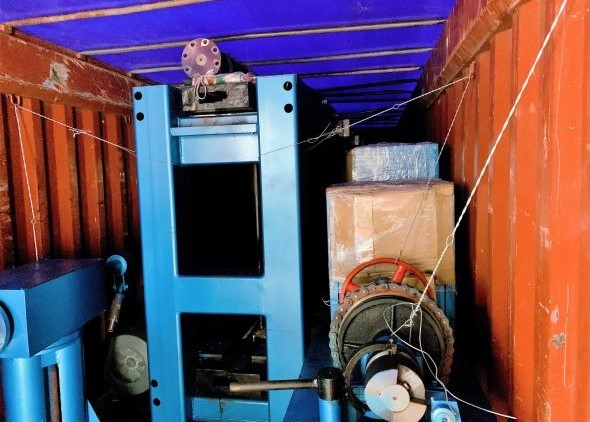

Packing

PLC Control Automatic Gabion Machine 3.2mm Wire PVC Coated Stone Gabion Boxes 1



Advantages



1.All the parts of gabion mesh machine are produced by our Jinlida,no parts were sending outside to produce,so we can guarantee the quality.

2.We provide12months warranty to help install the machines in your country,and also can supply all the spare parts at cost price if customers need.

3.We offer fine quality, competitive prices,prompt delivery and a satisfying service.
