Home > products > Gabion Machine > Professional Corrosion Resistance 2.6mm Gabion Box Wire Cage Machine

Professional Corrosion Resistance 2.6mm Gabion Box Wire Cage Machine

Product Details

Place of Origin: China

Brand Name: Jinlida

Certification: CE, ISO

Model Number: LNWL4

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Nude packing and will be fixed in 40 OT.

Delivery Time: 45 days

Get Best Price
High Light:

2.6mm wire cage machine

,

2.6mm gabion box machine

,

corrosion resistance wire cage machine

Product Name:
Gabion Mesh Machine
Mesh Width:
4300mm
Mesh Size:
84*110mm
Twisting Number:
Double Twist
Usage:
Gabion Box Stone Cage
Voltage:
380v
Motor:
22kw
Speed:
195m/h
Wire Diameter:
2.6mm
Option:
PLC Control
Product Name:
Gabion Mesh Machine
Mesh Width:
4300mm
Mesh Size:
84*110mm
Twisting Number:
Double Twist
Usage:
Gabion Box Stone Cage
Voltage:
380v
Motor:
22kw
Speed:
195m/h
Wire Diameter:
2.6mm
Option:
PLC Control

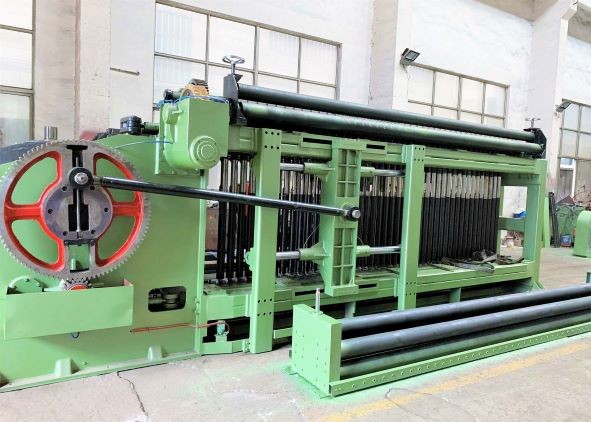

Professional Corrosion Resistance 2.6mm Gabion Box Wire Cage Machine

84x110mm Gabion Machine PVC Coated 2*1*1m Gabion Box Stone Cage



Gabion machine is also known as gabion box making machine, which is the professional machine to produce hexagonal wire mesh.

We can manufacture gabion machine according to customer request.



Quick Details

1. The weaving mesh speed of LNWL4 adds to 60 moves per minute, in this way, efficiency improves one third of old machines.

2. For high corrosion resistance,zinc and PVC,Galfan coated is available



Specifications


Style Mesh Size Width Wire Diameter Spindle Speed Power of Motor Theoretic Output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL4-60 60×80 4300 1.6-3.2 25 22 165
LNWL4-80 80×100 1.6-4.0 195
LNWL4-100 100×120 1.6-4.0 225
LNWL4-120 120×150 1.6-4.2 20 255




Description

1. It uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.

2. It is the ideal machinery that weaves big signification,breadth portal arm,thick silk gabion mesh.

3. It can weave 3.2mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.



Application

The gabion box machine is the professional equipment that produces hexagonal mesh, its product is widely used in

petroleum, building, farming and chemical engineering industry, keep warm piping and other piping,

still be applicable to the river embankment protection, coast to manage,

and the assisting of tunnel engineering and breakwater establish the etc.



Advantages

1. Jinlida is the professional manufacturer of the hexagonal wire mesh machine, and our factory is initiative for gabion mesh machine in China.

2. Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.

3. Engineers available to service machinery overseas.

Professional Corrosion Resistance 2.6mm Gabion Box Wire Cage Machine 0
