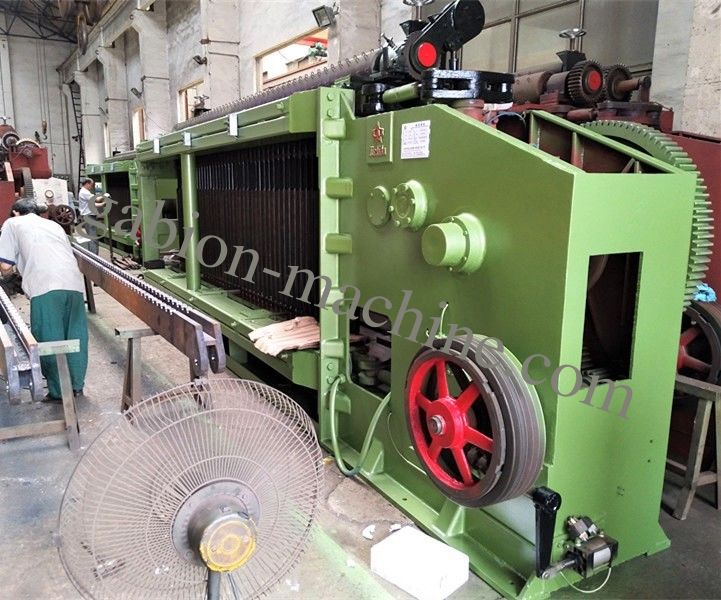

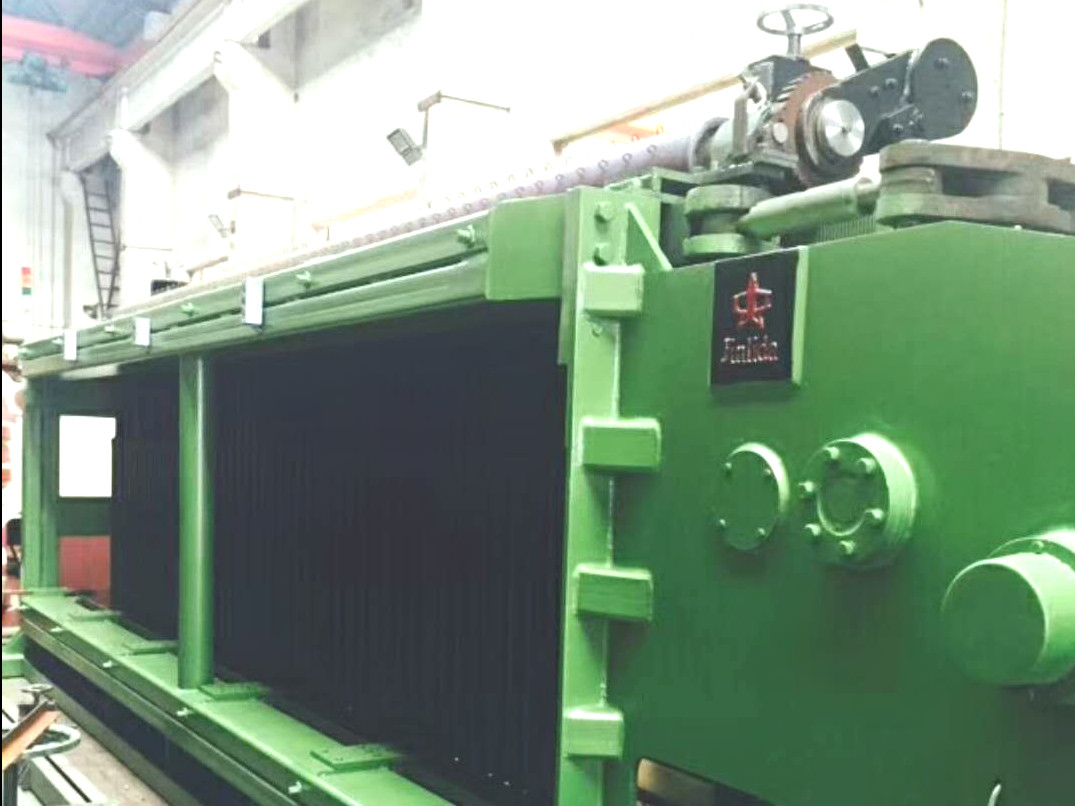

SGS 80x100mm Spiral Coil Gi Wire Net Gabion Machine
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Jinlida |
| Certification | CE,SGS |
| Model Number | LNWL50-80-3 |
| Minimum Order Quantity | one set |
| Price | USD35000-40000 |
| Packaging Details | Nude packing and will be fixed in the 40'container by iron wire |
| Delivery Time | 50 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mesh Size | 80*100mm | Specification | 7850*1600*2600mm |
|---|---|---|---|
| Twist | 3 Cross | Theoretic Output | 195m/h |
| Spindle Speed | 25r/min | Weight(KG) | 15000 |
| Wire Diameter | 1.6mm-4.0mm | Powwer | 30kw |
| High Light | Spiral Coil Gabion Machine,80x100mm Gabion Machine,SGS gi wire net making machine |
||
Product Description
Gabion Application
Gabion Machine widely used in oil,construction,raising,chemical industry warming piping and etc.it is alsoused in fence,apartment and greening.The hexagonal wire netting can be used in protect sea wall,hillside,road,bridge abd civil engineering.it is one of the best against filloding material.
The series gabion mesh machines have been designed to make gabion mesh various widths and mesh sizes.The possible coatings are galvanized and zinc.For high corrosion resistance,zinc and PVC coated wire is available.
Description
1.The reed pipes adopt seemless steel tube to increase inside diameter,it can put more spring wire and also can reduce the weight of machine,making machine work faster.
2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.
3.The machine can continuously work and run smoothly.It has low noise , when something wrong it will give an alarm and automatically stop.
JINLIDA Series Production Line
| NO. | Name | QTY |
| Standard Machine | ||
| 1 | Mesh weaving machine | 1 set |
| 2 | Netting winding machine | 1 set |
| 3 | Wire tension machine | 1 set |
| 4 | Spring coiling machine | 1 set |
| Optional Machine | ||
| 5 | Wrapped edge machine | 1 set |
| 6 | Mesh cutting machine | 1 set |
| 7 | Gabion packing machine | 1 set |
| 8 | Wire pay off machine | 1 set |
| 9 | Wire straightening&cutting machine | 1 set |
| 10 | PVC coating line | 1 set |
| 11 | Netting straightening machine | 1 set |
Supply Ability:
Supply Ability: 200 Set/Sets per Year
Packaging & Delivery
Packaging Details: Nude packing and will fixed in the container by wire
Port: Shanghai
Specifications
| Overall Size | 7850×1600 ×2300mm | Mesh Size | 100×120mm |
| Power | 30kw | Weight | 14000kg |
| Mesh Width | 5300mm | Wire Diameter | 1.6-4.2mm |
| PLC control system touch screen(option) | |||
| Automatic stop system(option) | |||
| Automatic oil system | |||
Advantages
1.The LNWL-3 series gabion mesh machine have been designed to make gabion mesh of various widths and mesh sizes;we can produce the machine as your size.
2.This gabion mesh machine's structure is simpleness,it can make the machine weaving mesh more easier.
3.The caoability is stabilization,all the points of iunction have bearing to fix,the parts will hard-wearing,lengthen machine life.
4.Thw mesh that 3 series mahchine weave,the part of twist will be longer that 2 aeries machine,so when the mesh need edge curl that using the selvedge machine,it will going easily and smoothly.
