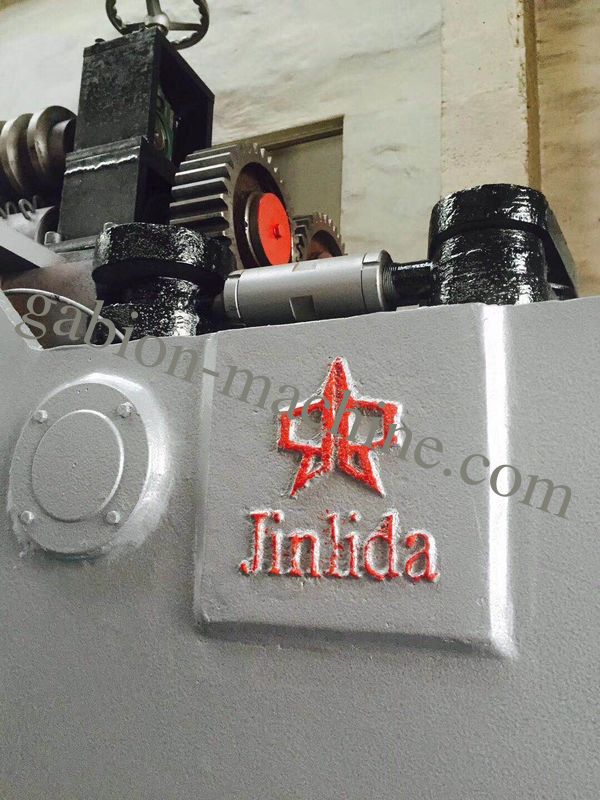

SGS 20r/Min Double Twist Wire Gabion Machine For Construction
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Jinlida |
| Certification | SGS,CE |
| Model Number | LNWL43-120-2 |
| Minimum Order Quantity | 1 set |
| Price | USD37000-45000 Per unit |
| Packaging Details | Nude packing and will be fixed in the 40'container by iron wire |
| Delivery Time | 50days |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | LNWL43-120-2 | Weight(KG) | 16000 |
|---|---|---|---|
| Theoretic Output | 255m/h | Twist | 3 Cross |
| Specification | 6300*1400*2400mm | Mesh Size | 120*150mm |
| Spindle Speed | 20r/min | Material | Iron |
| High Light | Double Twist Wire Gabion Machine,SGS Twist Wire Gabion Machine,20r/min Wire Gabion Machine |
||
Product Description
Quick Details
1.The mesh weaving machine is controlled by PLC control system.
2.The mesh weaving machine is designed by our Jinlida,and we have applied for patent.
Supply Ability
Supply Ability: 200 Set/Sets per Year
Packaging & Delivery
Packing Details:Nude packing and will be fixed in the container by wire
Port:Shanghai
Gabion Application
Gabion Machine widely used in oil,construction,raising,chemical industry warming piping and etc.it is alsoused in fence,apartment and greening.The hexagonal wire netting can be used in protect sea wall,hillside,road,bridge and civil engineering.it is one of the best against filloding material.
The series gabion mesh machines have been designed to make gabion mesh various widths and mesh sizes.The possible coatings are hesvily galvanized and zinc.For high corrosion resistance,zinc and PVC coated wire is available.
Detail Specification for all style of LNWL-2 Gabion Machine
| Style | Mesh size | Width | Wire diamater | Spindle Speed | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) | |
| LNWL23-60-2 | 60X80 | 2300 | 1.6-3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL23-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL23-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL33-60-2 | 60X80 | 3300 | 1.6-2.8 | 25 | 15 | 165 |
| LNWL33-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL33-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL33-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL43-60-2 | 60X80 | 4300 | 1.6-2.8 | 25 | 22 | 165 |
| LNWL43-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL43-100-2 | 100X120 | 225 | ||||
| LNWL43-120-2 | 120X150 | 1.6-3.2 | 20 | 255 |
Description:
1.The reed pipes adopt seemless steel tube to increase inside diameter,it can put more spring wire and also can reduce the weight of machine,making machine work faster.
2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.
3.The machine can continuously work and run smoothly.It has low noise , when something wrong it will give an alarm and automatically stop.
FAQ
About Price
The price is negotiable. It can be changed according to your quantity or order quest. When you are making an inquiry, please let me know the quantity you want.
About Sample
Sample is free, but the air freight is collect or you pay us the cost in advance.
About Warranty
We are very confident in our products, and we pack them well, so usually you will receive your order in good condition. Engineers available to service machinery overseas. Any quality issue, we will deal with it immediately.
