165m/Min Hard Wearing 60x80mm Gabion Machine PLC Control
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Jinlida |
| Certification | SGS,CE |
| Model Number | LNWL43-60-2 |
| Minimum Order Quantity | 1 set |
| Price | USD37000-45000 Per unit |
| Packaging Details | Nude packing and will be fixed in the 40'container by iron wire |
| Delivery Time | 50days |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mesh Size | 60*80mm | Type | LNWL43-60-2 |
|---|---|---|---|
| Twist | 3 Cross | Warranty | 1 Year |
| Wire Diameter(mm) | 1.6-4.0mm | Power(kw) | 22 |
| Theoretic Output | 165m/min | Spindle Speed | 25r/min |
| High Light | 60x80mm Gabion Machine,Hard Wearing Gabion Machine,165m/min Gabion Machine |
||
Product Description
Quick Detail:
Jinlida series machine is designed to make hexagonal wire mesh of various widths and mesh sizes, we can produce the machine as your size.
Packing&Delivery:
Packing Details: Nude packing and will be fixed in the container by wire.
Lead Time: 50 days
Main technical parameter:
| Style | Mesh Size | Width | Wire Diameter | Spindle Speed | Twist | Power of Motor | Theoretic Output |
| (mm) | (mm) | (mm) | (r/min) | (r) | (kw) | (m/h) | |
| LNWL43-60-2 | 60 x 80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2 | 80 x 100 | 1.6-4.0 | 195 | ||||
| LNWL43-100-2 | 100 x 120 | 1.6-4.0 | 225 | ||||
| LNWL43-120-2 | 120 x 150 | 1.6-4.2 | 20 | 255 | |||
| LNWL43-60-3 | 60 x 80 | 4300 | 1.6-3.2 | 25 | 5 | 22 | 165 |
| LNWL43-80-3 | 80 x 100 | 1.6-4.0 | 195 | ||||
| LNWL43-100-3 | 100 x 120 | 1.6-4.0 | 225 | ||||
| LNWL43-120-3 | 120 x 150 | 1.6-4.2 | 20 | 255 |
Description:
1.The mesh weaving machine we made adopts PLC control system and automatic oil system.
2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.
3.For high corrosion resistance, zinc and PVC, Galfan coated is available.
Competitive Advantages:
1.Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.
2.We have 15 years export experience establishing trade with more than 30 countries.
3.All the parts of gabion mesh machine are produced by our Jinlida, no parts were sending outside to produce, so we can guarantee the quality.
Advantages
4.It has the function of frequency control of motor speed according to different of wire diameter.
5.It has buffer function when speed increase or decrease in very short time.
6.It can count output.

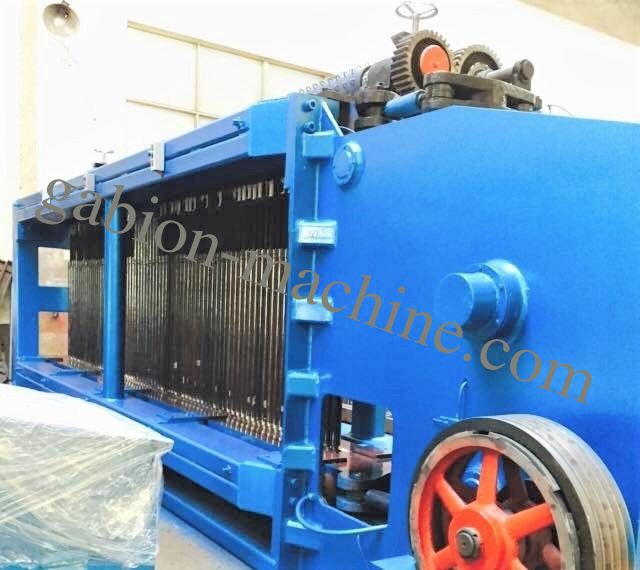

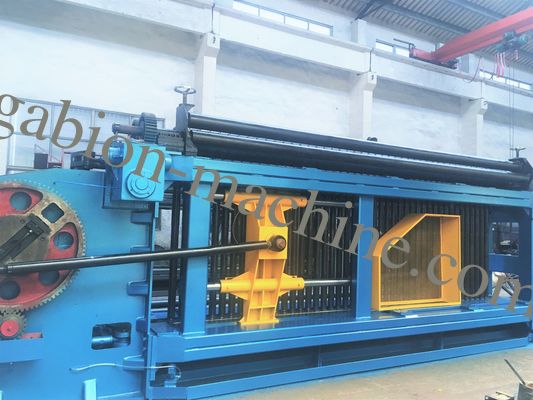

Product Display:
FAQ
Q:Are you trading company or manufacturer ?
A: Our factory is the professional manufacturer.
Q: How long is your delivery time?
A: Generally it is 40-50 days if the goods are in stock.
Q: What standard machine contains?
A: A set of gabion mesh machine is composed of hexagonal wire mesh machine, wire tension device, netting winding machine and spring coiling machine.
