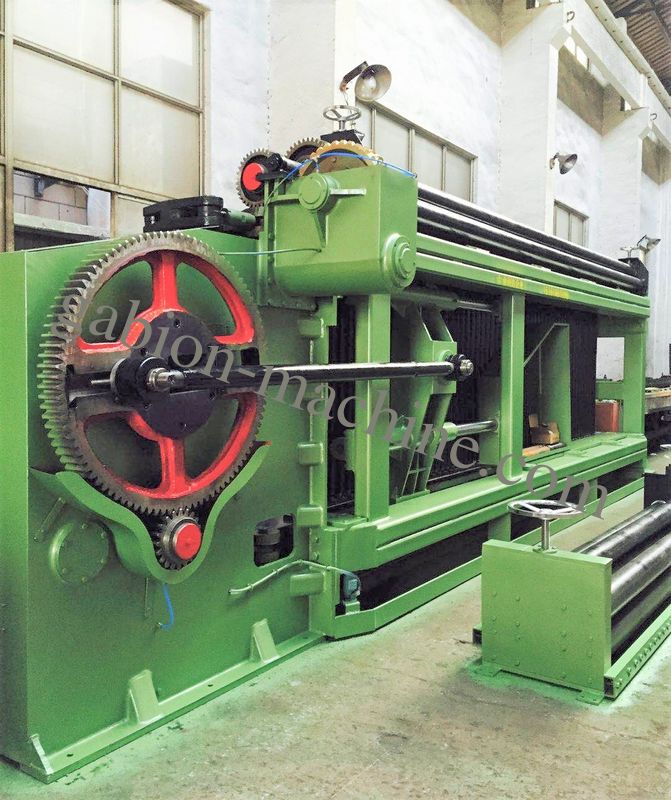

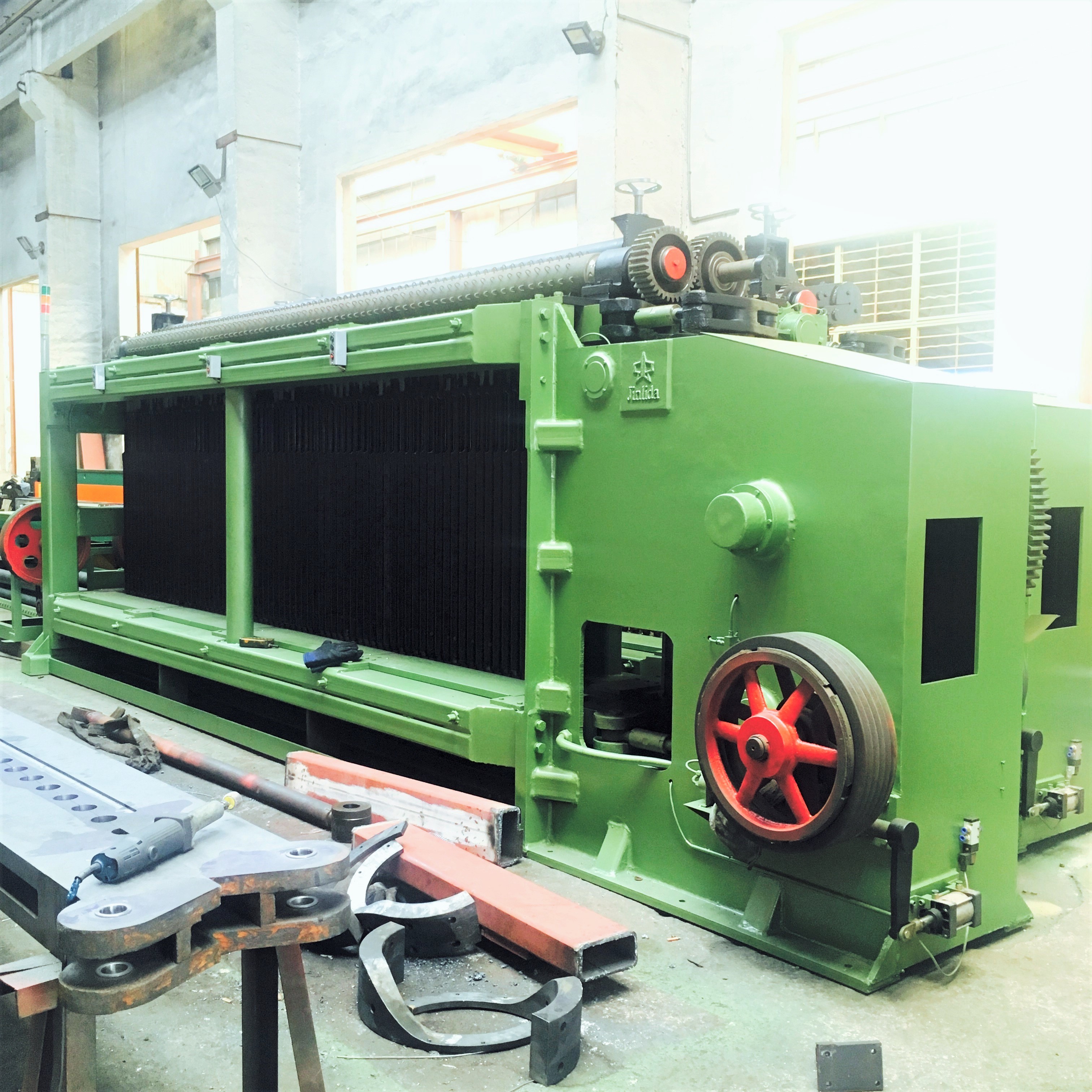

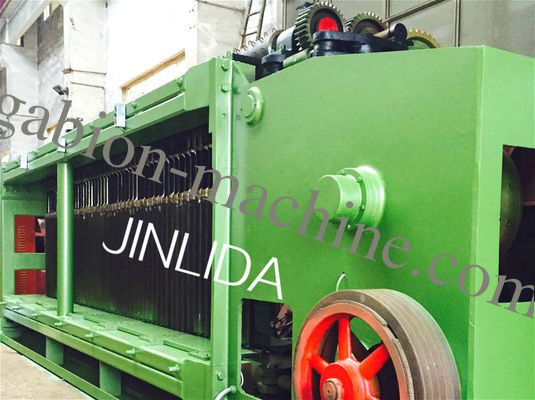

22kw Iron 25r/Min Gabion Hexagonal Mesh Knitting Machine Double Twist
Place of Origin | Jiangsu,China |
---|---|
Brand Name | Jinlida |
Certification | SGS,CE |
Model Number | LNWL43-80-2 |
Minimum Order Quantity | 1 set |
Price | USD37000-45000 Per unit |
Packaging Details | Nude packing and will be fixed in the 40'container by iron wire |
Delivery Time | 50days |
Payment Terms | L/C, T/T |
Supply Ability | 200 Set/Sets per Year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel Number | LNWL43-80-2 | Twist | 3 Cross |
---|---|---|---|
Material | Iron | Spindle Speed | 25r/min |
Specification | 6300*1400*2400mm | Power | 22kw |
Mesh Size | 80*100mm | Weight(kg) | 15000 |
High Light | 25r/min Hexagonal Mesh Knitting Machine,22kw Gabion Mesh Knitting Machine,22kw Gabion Machine |
Quick Details
Place of Origin: Jiangsu,China(Mainland)
Brand Name: JINLIDA
Model Number: LNWL43-80-2
After-sales Service: Engineers avaailable to service machinery overseas
Specifications:
1.Mesh sizes:80×100mm
2.Twist:double twist
3.Max.netting width:4300mm
4.Max.galvanized wire diameter:3.0mm
5.Max PVC wire diameter:4.0mm
6.Spindle Speed:25r/min
7.Power:22kw
8.Size:7200×1400×2400mm
9.Weight:15t
10.Theoretic output:195m/hr
11.Automatic stop system(option):when the coiling finished or wire broken,the machine will stop automatically
12.Infrared ray safety protection system(option)
13.Automatic oil system
Application:
The gabion box machine is widely used in oil,comstruction,raising,chemical industry,warming piping and etc.It is used in fence,apartment and greeting.The hexagonal wire netting can be used in protect sea wall,hillside,road,bridge and civil engineering.It is one of the best against flooding materials.
Competitive Advantage:
1.JINLIDA company invented the first special equipment of double twisted wire netting making machine in China(patent number:ZL99229381.2 and ZL00267066.5).And until now,we have persevered in this area od gabion machine making for 15 years.
2.All the parts of gabion machine are processed by our own factory;no parts were send to outside to process,so the quality can be ensured.
3.We can provide 12 months guarantee for all the equipments,and if customer need,we will arrange our technician to help install the machines in your country,and also could supply all the spare parts with cost price if customer need.
Technical Parameters:
Model | Mesh Size | Max.Width | Wire diameter |
Twisting Number |
Main drive shaft speed | Motor Capacity | Theoretical speed |
/ | mm | mm | mm | / | / | / | m/h |
LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | ||||
LNWL23-1200-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | ||||
LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 25 | 22 | 165 |
LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | ||||
LNWL43-100-3 | 100*120 | 1.6-3.0 | 225 | ||||
LNWL43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
