hexagonal 22kw 165m/H Gi Wire Net Making Machine River Course

Product Details

Place of Origin: Jiangsu,China

Brand Name: Jinlida

Certification: SGS,CE

Model Number: LNWL43-60-2

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD37000-45000 Per unit

Packaging Details: Nude packing and will be fixed in the 40'container by iron wire

Delivery Time: 50days

Payment Terms: L/C, T/T

Supply Ability: 200 Set/Sets per Year

Get Best Price
High Light:

165m/h gi wire net making machine

,

22kw gi wire net making machine

,

165m/h wire mesh fencing machine

Weight(KG):
16000
Specification:
6300*1400*2400mm
Application:
River Course
Spindle Speed:
25r/min
Theoretic Output:
165m/h
Wire Diameter(mm):
1.6-4.0mm
Power(KW):
22
Warranty:
1 Year
Mesh Size:
60x80mm
Model Number:
LNWL43-60-2
Weight(KG):
16000
Specification:
6300*1400*2400mm
Application:
River Course
Spindle Speed:
25r/min
Theoretic Output:
165m/h
Wire Diameter(mm):
1.6-4.0mm
Power(KW):
22
Warranty:
1 Year
Mesh Size:
60x80mm
Model Number:
LNWL43-60-2
hexagonal 22kw 165m/H Gi Wire Net Making Machine River Course

Quick Detail:


Jinlida series machine is designed to make hexagonal wire mesh of various widths and mesh sizes, we can produce the machine as your size.

Packing&Delivery:

Packing Details: Nude packing and will be fixed in the container by wire.
Lead Time: 50 days


Main technical parameter:
Style Mesh Size Width Wire Diameter Spindle Speed Twist Power of Motor Theoretic Output
(mm) (mm) (mm) (r/min) (r) (kw) (m/h)
LNWL43-60-2 60 x 80 4300 1.6-3.2 25 3 22 165
LNWL43-80-2 80 x 100 1.6-4.0 195
LNWL43-100-2 100 x 120 1.6-4.0 225
LNWL43-120-2 120 x 150 1.6-4.2 20 255
LNWL43-60-3 60 x 80 4300 1.6-3.2 25 5 22 165
LNWL43-80-3 80 x 100 1.6-4.0 195
LNWL43-100-3 100 x 120 1.6-4.0 225
LNWL43-120-3 120 x 150 1.6-4.2 20 255


Description:

1.The mesh weaving machine we made adopts PLC control system and automatic oil system.

2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.


3.For high corrosion resistance, zinc and PVC, Galfan coated is available.



Product Display:

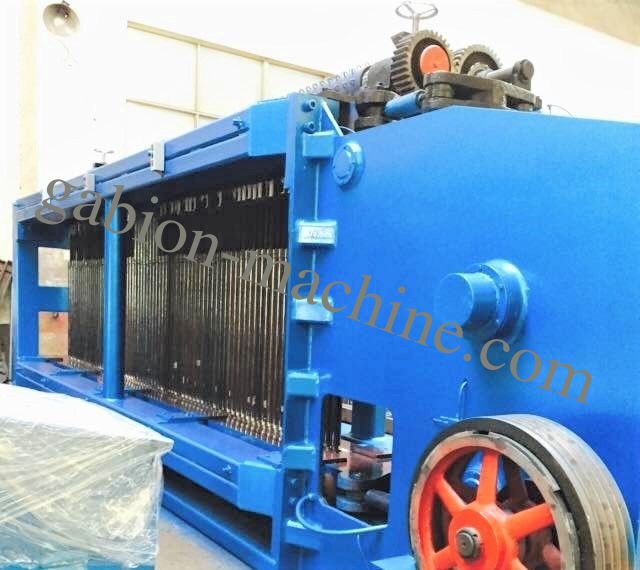

hexagonal  22kw 165m/H Gi Wire Net Making Machine River Course 0  hexagonal  22kw 165m/H Gi Wire Net Making Machine River Course 1hexagonal  22kw 165m/H Gi Wire Net Making Machine River Course 2  hexagonal  22kw 165m/H Gi Wire Net Making Machine River Course 3



Competitive Advantages:

1.Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.

2.We have 15 years export experience establishing trade with more than 30 countries.

3.All the parts of gabion mesh machine are produced by our Jinlida, no parts were sending outside to produce, so we can guarantee the quality.



4.It has the function of frequency control of motor speed according to different of wire diameter.



5.It can save about 30% energy.



Application:

The product has widely purpose,with its good corrosion resistance and oxidation resistance, serves well as strengthen,

protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry

fence in construction, petroleum, chemical, breeding, garden and food processing industries.


FAQ

Q:Are you trading company or manufacturer ?
A: Our factory is the professional manufacturer.

Q: How long is your delivery time?
A: Generally it is 40-50 days if the goods are in stock.

Q: What standard machine contains?
A: A set of gabion mesh machine is composed of hexagonal wire mesh machine, wire tension device, netting winding machine and spring coiling machine.
