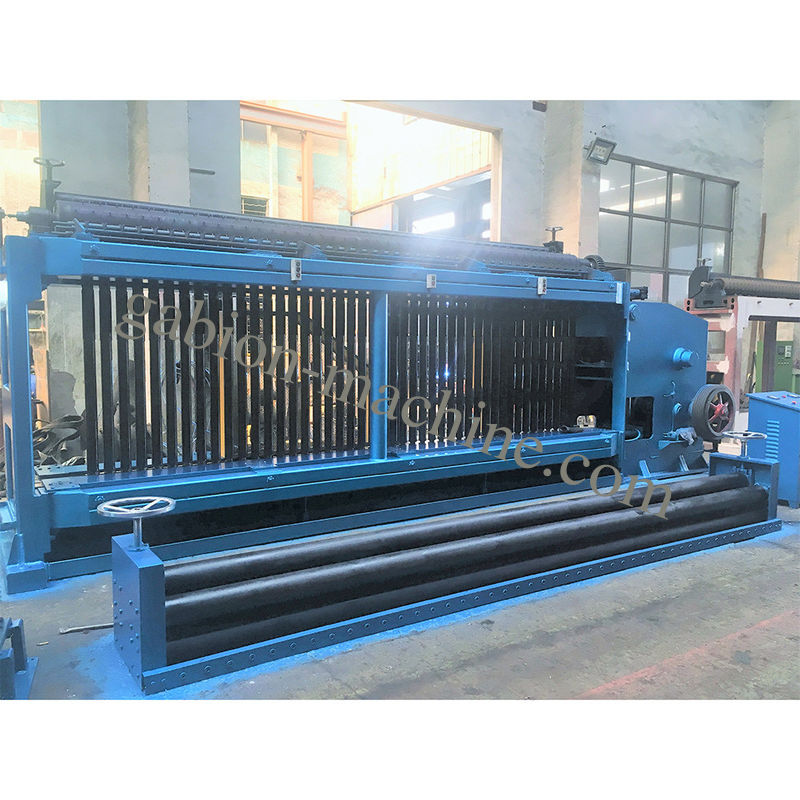

SGS 20r/Min Double Twist Gabion Mesh Machine For Construction

Place of Origin Jiangsu,China
Brand Name Jinlida
Certification SGS,CE
Model Number LNWL43-120-2
Minimum Order Quantity 1 set
Price USD37000-45000 Per unit
Packaging Details Nude packing and will be fixed in the 40'container by iron wire
Delivery Time 50days
Payment Terms L/C, T/T
Supply Ability 200 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type LNWL43-120-2 Weight(KG) 16000
Theoretic Output 255m/h Twist 3 Cross
Specification 6300*1400*2400mm Mesh Size 120*150mm
Spindle Speed 20r/min Material Iron
High Light

20r/min gabion mesh machine


3 cross gabion mesh machine


20r/min wire netting machine

Leave a Message
Product Description

Quick Details

1.The mesh weaving machine is controlled by PLC control system.

2.The mesh weaving machine is designed by our Jinlida,and we have applied for patent.


Supply Ability

Supply Ability: 200 Set/Sets per Year


Packaging & Delivery

Packing Details:Nude packing and will be fixed in the container by wire



Gabion Application

Gabion Machine widely used in oil,construction,raising,chemical industry warming piping and etc.it is alsoused in fence,apartment and greening.The hexagonal wire netting can be used in protect sea wall,hillside,road,bridge and civil engineering.it is one of the best against filloding material.

The series gabion mesh machines have been designed to make gabion mesh various widths and mesh sizes.The possible coatings are hesvily galvanized and zinc.For high corrosion resistance,zinc and PVC coated wire is available.

LNWL43-120-2 Automatic Long service Life Professional Custom Double Twist Wire Gabion Machine LNWL43-120-2 Automatic Long service Life Professional Custom Double Twist Wire Gabion Machine


Detail Specification for all style of LNWL-2 Gabion Machine

Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3 25 11 165
LNWL23-80-2 80X100 1.6-3 195
LNWL23-100-2 100X120 1.6-3.2 225
LNWL23-120-2 120X150 1.6-3.5 20 255
LNWL33-60-2 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80X100 1.6-3 195
LNWL33-100-2 100X120 1.6-3.2 225
LNWL33-120-2 120X150 1.6-3.5 20 255
LNWL43-60-2 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80X100 1.6-3 195
LNWL43-100-2 100X120 225
LNWL43-120-2 120X150 1.6-3.2 20 255



1.The reed pipes adopt seemless steel tube to increase inside diameter,it can put more spring wire and also can reduce the weight of machine,making machine work faster.

2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.

3.The machine can continuously work and run smoothly.It has low noise , when something wrong it will give an alarm and automatically stop.



About Price

The price is negotiable. It can be changed according to your quantity or order quest. When you are making an inquiry, please let me know the quantity you want.


About Sample

Sample is free, but the air freight is collect or you pay us the cost in advance.


About Warranty

We are very confident in our products, and we pack them well, so usually you will receive your order in good condition. Engineers available to service machinery overseas. Any quality issue, we will deal with it immediately.

LNWL43-120-2 Automatic Long service Life Professional Custom Double Twist Wire Gabion Machine
