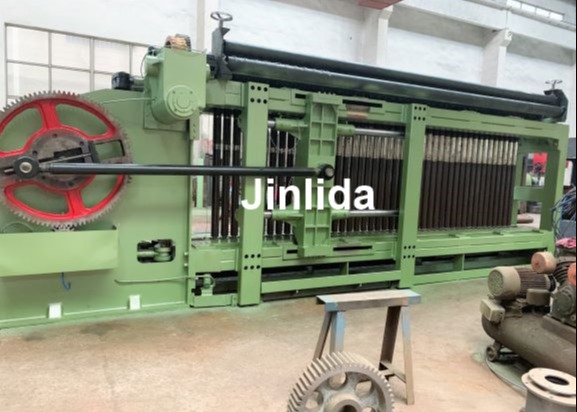

100x120mm Gabion Mesh Machine Rockfall Production Applied
| Place of Origin | China |
|---|---|
| Brand Name | Jinlida |
| Certification | CE,SGS |
| Model Number | LNWL43-100-2 |
| Minimum Order Quantity | 1 set |
| Price | Competitive price |
| Packaging Details | Nude packing and will be fixed in the 40'container by iron wire |
| Delivery Time | 50 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wire Diameter (mm) | 1.6-4.0mm | Mesh Size | 100*120mm |
|---|---|---|---|
| Spindle Speed | 25r/min | Material | Iron |
| Power (kW) | 22kw | Weight (KG) | 15000 |
| Application | Rockfall Production | ||
| High Light | 25r/min Gabion Mesh Machine,100x120mm Gabion Mesh Machine,25r/min gabion making machine |
||
Product Description
Video Description
Description:
Jinlida insists on innovating,we have studied and produced automatic gabion production line, it can make gabion box automatic from mesh weaving to edge winding mesh sheet, this system will save labour force and improve output, it has high efficiency.
The machine is supposed to be in continuous and smooth operation, saving much labour force.It has low noise and automatic stop system.If coiling wires are ran out,the machine will stop automatically.
Improving:
1.LNWL4 gabion machine use eccentric reed pipes, do little harm to wire coating layer, reduce machine overload.
2. The wire mesh machine uses big worm gear case,it reduces oil temperature to avoid worm burning hot.And the force of pulling mesh is greater.
3. Nodular cast iron is used by new machine, good toughness and wear-resisting.
4.Nodular cast iron is used by new machine, good toughness and wear-resisting.
Specifications:
| Style | Mesh size | Width | Wire diamater | Spindle Speed | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) | |
| LNWL23-60-2 | 60X80 | 2300 | 1.6-3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL23-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL23-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL33-60-2 | 60X80 | 3300 | 1.6-2.8 | 25 | 15 | 165 |
| LNWL33-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL33-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL33-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL43-60-2 | 60X80 | 4300 | 1.6-2.8 | 25 | 22 | 165 |
| LNWL43-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL43-100-2 | 100X120 | 225 | ||||
| LNWL43-120-2 | 120X150 | 1.6-3.2 | 20 | 255 |
Competitive Advantages:
1.Our factory is the professional manufacturer of the hexagonal wire mesh machine,and our factory is initiative for gabion mesh machine in China.
2.All machines showed in global market and made-in-china are from Jinlida.
3.Excellent quality,reasonable price and first-class service.
