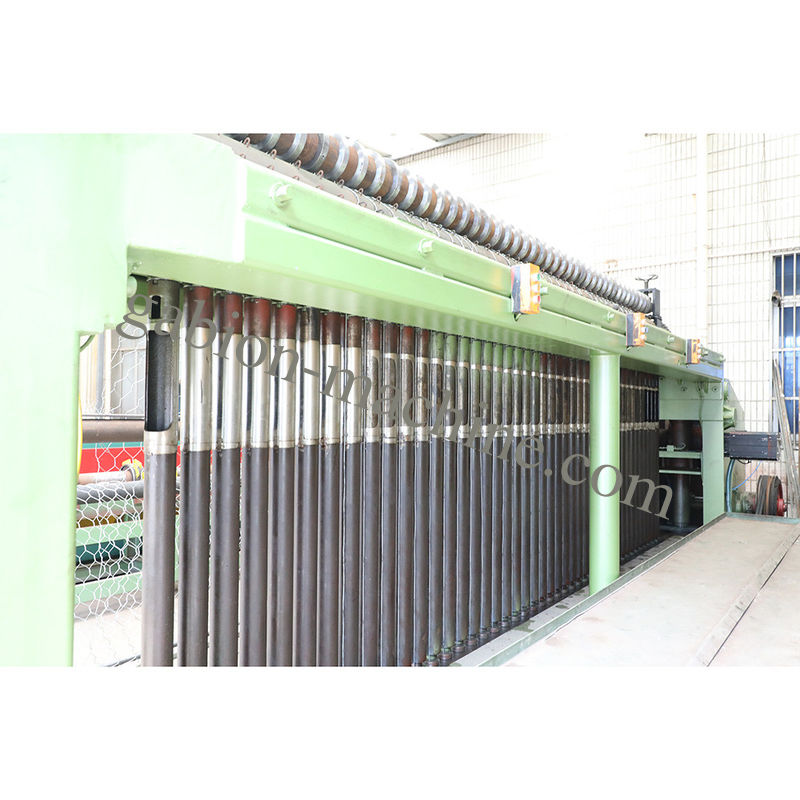

Zinc Coated Hexagonal Wire Netting Machine With Automatic Oil System

Product Details

Place of Origin: China

Brand Name: JINLIDA

Model Number: LNWL-1032-2

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Competitive price

Packaging Details: Nude packing

Delivery Time: 50 days

Payment Terms: L/C,T/T

Supply Ability: 300 sets/a year

Get Best Price
Highlight:

Zinc Coated Hexagonal Wire Netting Machine

,

Zinc Coated Wire MESH Machine

,

1200mm Hexagonal Wire Netting Machine

Mesh Sizes:
32x52mm
Max Netting Width:
1200mm
Power:
3kW
Theoretic Output:
122m/hr
Mesh Sizes:
32x52mm
Max Netting Width:
1200mm
Power:
3kW
Theoretic Output:
122m/hr
Zinc Coated Hexagonal Wire Netting Machine With Automatic Oil System

Zinc / PVC Galfan Coated Wire Mesh Hexagonal Wire Netting Making Machine





Quick Detail:



1) Mesh sizes: 22x33mm
2) Max netting width: 1200mm
3) Max galvanized wire diameter: 31.2mm
4) Power: 3kW
5) Theoretic output: 83m/hr





Descrition:

  • JINLIDA is professional manufacturer, not trading company, we supply advanced machine to

        oversea clients directly only. We can produce the machine as your requirement.

  • Model GLL (T) is a light series of mesh weaving machines, including 7 different types of machines,

        i.e. with which the galvanized hexagonal wire mesh of different apertures can be woven

  • The maximum diameter of the wire that can be woven on this type of machine is 1.2m. This series

        of product include two types of machines, i.e. the single-head and the double-head machine

  • The maximum weaving breadth of the single-head machine is 1.2m and that of the double-head

        machine is 2.2m.

  • Separated from the middle, the double-head machine can weave two 1m wide meshes simultaneously
  • Type 1/2' and Type 3/4' machine can weave trapezoidal wire-mesh after necessary refitting
  • This kind of wire-mesh is widely used as the skeleton of the asbestos shingle



Specifications:



1) Mesh sizes: 32x52mm
2) Max netting width: 1200mm
3) Max galvanized wire diameter: 1.2mm
4) Power: 3kW
5) Theoretic output: 122m/hr
6) Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
7) Infrared ray safety protection system (option)
8) Automatic oil system





Style Specification Mesh size Width Wire diamater Twisting  Lines Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) r (r/min) (kw) (m/h)
LNWL-1015-2 1/2' 15x18 1200 0.8 3 33 3 51
LNWL-1018-2 5/8' 18x5 0.9 3 67
LNWL-1022-2 3/4' 22x33 1.2 3-5 83
LNWL-1027-2 1' 27x41 3-5 100
LNWL-1032-2 1/1/4' 32x52 3-5 122
LNWL-1039-2 1/1/2' 39x61 3 142
LNWL-1055-2 2' 55x70 1.5 3 162
LNWL-1078-2 3' 78x86 3-5 194
LNWL-2015-2 1/2' 15x18 2200 0.8 3 33 3 51
LNWL-2018-2 5/8' 18x5 0.9 3 67
LNWL-2022-2 3/4' 22x33 1.2 3-5 83
LNWL-2027-2 1' 27x41 3-5 100
LNWL-2032-2 1/1/4' 32x52 3-5 122
LNWL-2039-2 1/1/2' 39x61 3 142
LNWL-2055-2 2' 55x70 1.5 3 162
LNWL-2078-2 3' 78x86 3-5 194





Competitive Advantage:



1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of gabion machine making for 15 years.



2. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to

process, so the quality can be ensured.



3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

 technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
