Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire

  • Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire
  • Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire
  • Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire
  • Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire
  • Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire
Place of Origin Jiangsu,China
Brand Name Jinlida
Certification CE
Model Number LNWL4
Minimum Order Quantity 1 set
Packaging Details Nude packing and will be fixed in the 40'container by iron wire
Delivery Time 50days
Payment Terms L/C, T/T
Supply Ability 200 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gabion Machine Mesh Width 4000mm
Mesh Size 80*100mm Wire Diamet 1.6-4.0mm
Theoretic Ou 195m/h Application Flooding Protection
High Light

Flooding Protection Wire Netting Machine

,

ISO9001 Wire Netting Machine

,

ISO9001 wire cage machine
Leave a Message
Product Description

Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire

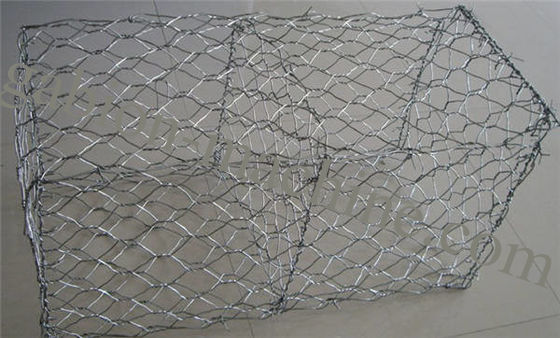

Gabion making machine is the professional machine to produce hexagonal wire mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project. And it is one of the best material against flooding.



Description



1. Gabion mesh machine is also known as heavy duty hexagonal wire mesh machine, which is professional equipment to produce hexagonal wire mesh.

2. The machine is supposed to be in continuous and smooth operation, saving much labour force.It has low noise and automatic stop system.If coiling wires are ran out,the machine will stop automatically.

3. This new 4 series gabion mesh machines' structure is simple, it can weave mesh more conveniently.





Machine Detail Specifications

Product Name gabion mesh machine Material iron
Color green Certification CE, ISO9001
Control PLC Power 22kw
Weight 15t Mesh Size 80×100mm
Width 4000mm Wire Diameter 1.6-4.0mm
Spindle Speed 25 r/min Twist 2 twist, 3 cross
Theoretic Output 195 m/h Patent ZL99229381.2 and ZL00267066.5





Main Features

1. Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.
2. PLC control system touch screen is available for the hexagonal wire mesh machine.
3. Automatic stop system saves much labor force.

Packing Details

Packing Details: Nude packing and will be fixed in the 40'container by iron wire


The main machine includes four main parts:mesh weaving machine, spring coiling machine, mesh roller machine and wire tension device.

Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire 0 Gabion Machine 80*100mm Mesh Box for Flooding Protection PVC Coated Wire 1



Competitive Advantages

1. Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.

2. We offer fine quality, competitive prices,prompt delivery and a satisfying service.

3. Make long-term bets on innovations that will redefine markets rather than merely satisfy demand.
