4000mm Galvanized Automatic Gabion Machine 80*100mm Wire Mesh for Stone Cage

Product Details

Place of Origin: Jiangsu,China

Brand Name: Jinlida

Model Number: LNWL4h

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD37000-45000 Per unit

Packaging Details: Nude packing and will be fixed in the 40'container by iron wire

Delivery Time: 40days

Payment Terms: L/C, T/T

Supply Ability: 200 Set/Sets per Year

Get Best Price
High Light:

Automatic Lubricatied Gabion Machine

,

195m/H Gabion Machine

,

low friction Gabion equipment

Product Name:
Gabion Machine
Mesh Width:
4000mm
Mesh Size:
80*100mm
Wire Diameter(mm):
1.6-4.0mm
Theoretic Ou:
195m/h
Application:
Stone Cage
Product Name:
Gabion Machine
Mesh Width:
4000mm
Mesh Size:
80*100mm
Wire Diameter(mm):
1.6-4.0mm
Theoretic Ou:
195m/h
Application:
Stone Cage

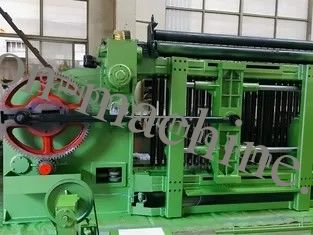

4000mm Galvanized Automatic Gabion Machine 80*100mm Wire Mesh for Stone Cage

4000mm Galvanized Automatic Gabion Machine 80*100mm Wire Mesh for Stone Cage



Jinlida series machines are designed to make gabion mesh of various width and mesh size, we can produce the machine as your size.

Introduction:
1. Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.

2.
The machine is supposed to be in continuous and smooth operation, saving much labour force. Mesh weaved by machine are tidily arranged.


3. Every part of gabion mesh machine is high quality, they are assembled by skilled workers who have years of experience.



Application:



The product has widely purpose,with its good corrosion resistance and oxidation resistance, serves well as strengthen,

protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry

fence in construction, petroleum, chemical, breeding, garden and food processing industries.



Main technical parameter:



-4H/

双绞

double twist

拉网辊

Mesh roller

Ø

-4HS/

双绞

double twist

拉网辊

Mesh roller

Ø

-4HS/

五绞

five twist

拉网辊

Mesh roller

Ø

-4H

双绞捻网速度double twist knitting speed

-4HS

五绞捻网速度five twist knitting speed

60*85/ 28mm Ø180/ 5

















25 20
66*90/ 28mm Ø191/ 5

















25 20
70*90 /30mm Ø191/ 5 70*90/ 45mm Ø215/ 5 70*105/55mm Ø203.8/4 25 20
80*103/ 32mm Ø215 / 5 80*115/ 45mm Ø203/ 4 80*105/55mm Ø203/ 4 25 20
88*105/ 32mm Ø218/ 5 88*115/ 45mm Ø203/ 4 88*105/55mm Ø203/ 4 25 20
90*100/ 32mm Ø218/ 5 90*115/ 45mm Ø203/ 4 90*105/55mm Ø203/ 4 25 20
100*120/ 32mm Ø242/ 5 100*125 /45mm Ø217/ 4 100*115/55mm Ø217/ 4 25 20
110*140/ 32mm Ø219/ 4 110*126/ 45mm Ø218/ 4 110*116/55mm Ø218/ 4 25 20
120*140/ 32mm Ø219/ 4 120*140/ 45mm Ø295/ 5 120*130/55mm Ø295/ 4 25 20
Note:

1. -4H:不带伺服程序控制,-4HS:带伺服程序控制.

-4H: without servo program control, -4HS: with servo program control.

2. Ø拉网辊外径后面-4或-5为圆周上的拉网齿等分.

Mesh roller item: ‘4’ or ‘5’ means thorn nails equal parts number(how many nails rows of one roller ).

3. 网孔规格-32,-45,-55为网孔绞合部分的长度尺寸.

Double twist and five twist item: ‘32mm’, ‘45mm’, ‘55mm’ is twist length.

4. -4H型机设定每分钟理论生产速度为25个双绞网孔.

-4H machine theoretic output: 25 double twist mesh hole every minute.

5. -4HS型机设定每分钟理论生产速度为20个五绞网孔.

-4HS machine theoretic output: 20 five twist mesh hole every minute.


We can manufacture gabion machine according to customer's request.


4000mm Galvanized Automatic Gabion Machine 80*100mm Wire Mesh for Stone Cage 04000mm Galvanized Automatic Gabion Machine 80*100mm Wire Mesh for Stone Cage 1
A set of gabion mesh machine is composed of hexagonal wire mesh machine, wire tension device, netting winding machine and spring coiling machine.


Competitive Advantages:
1.According to the products and raw materials appropriately adjust the speed and reduce rate of broken.

2.Mesh is well-arranged and distributed evenly and orderly.

3.It is characterized by precise design, compact conformation, simple structure, flexible and reliable operation and convenient maintenance.


4.Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.

5.All the parts of gabion mesh machine are produced by our Jinlida, no parts were sending outside to produce, so we can guarantee the quality.



FAQ

About Delivery
Generally it is 40-50 days if the goods are in stock.The specific delivery time depends on the items and the quantity of your order.

About Warranty
We provide 12 months guarantee for all the equipment, and if customers need, we will arrange our professional technician to help install the machines in your country, and also can supply all the spare parts at cost price if customers need.


*In order to quote you right price, please inform us the detail specification such as mesh size, width, wire diameter range and so on.
