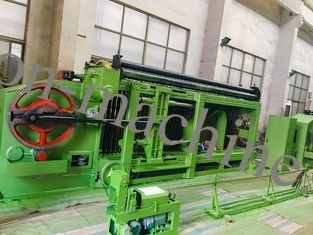

PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine

  • PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine
  • PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine
  • PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine
  • PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine
Place of Origin China
Brand Name Jinlida
Certification CE SGS
Model Number LNWL43-100-4
Minimum Order Quantity one set
Price USD35000-40000
Packaging Details Nude packing and will be fixed in the 40'container by iron wire
Delivery Time 50 days
Payment Terms L/C, T/T
Supply Ability 200 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight（kg） 17000 Power（kw） 22
Warranty 1 Year Theoretic Output 225m/h
Wire Diameter 1.6-4mm Specification 6300-1400-2400mm
Mesh Size 100*120mm Type LNWL43-100-4
High Light

Wire Net Gabion Machine

,

Weaving Galvanized Gabion Machine

,

Weaving Wire Net Machine
Leave a Message
Product Description

Quick Details

  • Wire Diameter(mm):  1.6-4mm
  • Condition:  New
  • Machine Type:  Gabion Mesh Making Machine
  • Video outgoing-inspection:  Provided
  • Warranty of core cpmponents:  1 Year
  • Core Components:  PLC,Engine,Bearing,Gear,Pump
  • Production Capacity:  200 Sets/Year
  • Place of origin:  Jiangsu,China
  • Brand Name:  Jinlida
  • Model Number:  LNWL43-100-4
  • Weight:  17000kg
  • Power:  22kw
  • Key Selling Points:  Long Service Life
  • Warranty:  1 Year
  • After-sales Service Provided:  Free spare parts,Online support,Video technical support,Field maintance and repair service
  • After Warranty Service:  Video technical support,Online support
  • Applicable Industries:  Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Retail,Construction works.
  • Specification : 6300*1400*2400mm
  • Mesh Size:  100*120mm
  • Spindle Speed:  25r/min
  • Theoretic Output:  225m/h
  • Material:  iron
  • Twist:  3 cross
Type: LNWL43-100-4 Twist: 3 cross
Material: iron Mesh Size: 100x120mm
Theoretic Output:

225m/h

 Specificationn: 6400x1400x2400mm
Spindle Speed: 25r/min Warranty: 1 Year
Power: 22kw Color: customized



Supply Ability

Supply Ability:200 Set/Sets per Year



Packaging & Delivery

Packaging Details:Nude Packing and will be fixed in the 40 container by iron wire.

Port:Shanghai Port

Lead Time:

Quantity(Sets) 1-1 >1
Est.Time(days) 50 To be negotiated





Gabion Application

Gabion Machine widely used in oil,construction,raising,chemical industry warming piping and etc.it is alsoused in fence,apartment and greening.The hexagonal wire netting can be used in protect sea wall,hillside,road,bridge abd civil engineering.it is one of the best against filloding material.



The series gabion mesh machines have been designed to make gabion mesh various widths and mesh sizes.The possible coatings are galvanized and zinc.For high corrosion resistance,zinc and PVC coated wire is available.



PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine 0PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine 1PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine 2PLC Control 4mm Weaving Galvanized Wire Net Gabion Machine 3



Detail Specification for all style of LNWL-2 Gabion Machine



Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-4 60X80 2300 1.6-3 25 11 165
LNWL23-80-4 80X100 1.6-3 195
LNWL23-100-4 100X120 1.6-3.2 225
LNWL23-120-4 120X150 1.6-3.5 20 255
LNWL33-60-4 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-4 80X100 1.6-3 195
LNWL33-100-4 100X120 1.6-3.2 225
LNWL33-120-4 120X150 1.6-3.5 20 255
LNWL43-60-4 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-4 80X100 1.6-3 195
LNWL43-100-4 100X120 225
LNWL43-120-4 120X150 1.6-3.2 20 255





Description

1.The reed pipes adopt seemless steel tube to increase inside diameter,it can put more spring wire and also can reduce the weight of machine,making machine work faster.

2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.

3.The machine can continuously work and run smoothly.It has low noise , when something wrong it will give an alarm and automatically stop.
