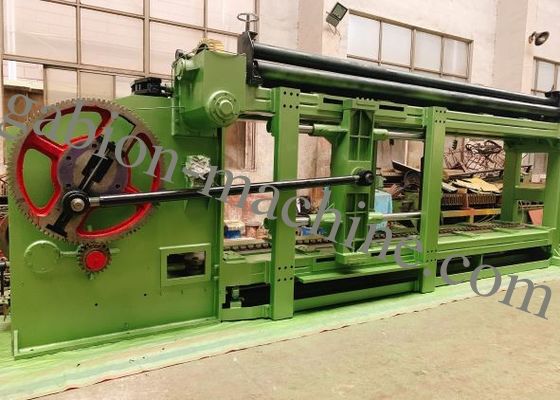

Double Twisted Hexagonal 4300mm Wire Mesh Making Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Width | 4300mm | Material | Galvanized |
|---|---|---|---|
| Color | As Customers' Requirement | Power | 22kw |
| High Light | 4300mm wire mesh making machine,Hexagonal wire mesh making machine,Hexagonal mesh making machine |
||
Product Description
Heavy Duty Galvanised Gabion Machine Wire Mesh Hexagonal 4300mm Width
Quick Detail:
1.The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh
sizes.
2.The possible coatings are heavily galvanized and zinc.
3.For high corrosion resistance, zinc and PVC coated wire is available.
Specifications
1. Mesh size: 90x137mm
2. Mesh Width: 4300mm
3. Max Wire Diameter: 3.2mm
Descrition:
Gabion machine Jinlida brand
1. Invented first double twist gabion machine in China
2. Apply for national patents, number is ZL99229381.2 and ZL00267066.5
3. SGS,TUV certificate
Gabion machine
△Jinlida series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.
△We have 15 years export experience establishing trade with more than 30 countries, and ,
△DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.
Gabion Application
Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also
used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,
road, bridge and civil engineering. It is one of the best against flooding material.
Specification
| Style | Mesh Size | Width | Wire Diamater | Spindle Speed | Twist | Power of Motor | Theoretic Output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-3ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 5 | 22 | 165 |
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
| LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
| LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Picture for hexagonal mesh machine working

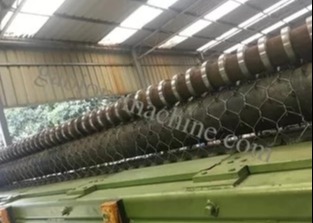

1. Mesh machine weaving mesh
2.Wire Pay Off System &Wire Tension Roller Working
3. Spring coiling machine working
Competitive Advantage:
1. Jinlida company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area
of g abion machine making for 15 years.
2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
