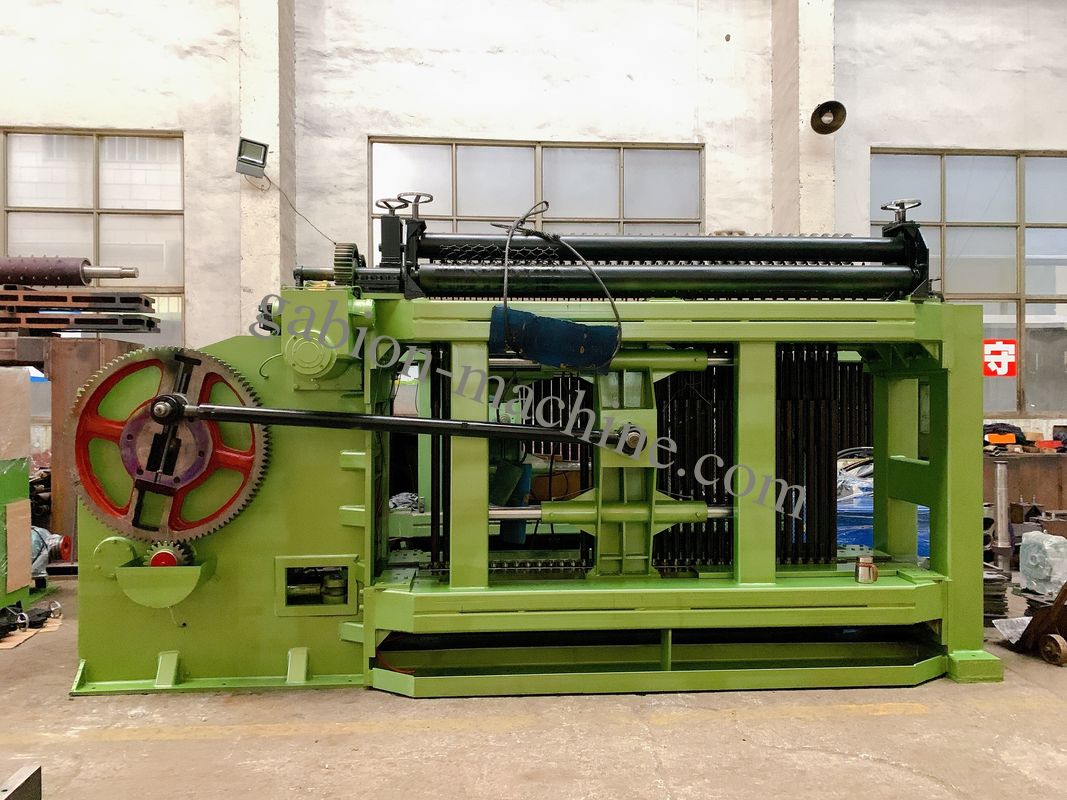

Automatic 66*88mm Gabion Machine 165m/h Galvanized Wire Mesh

Automatic 66*88mm Gabion Machine 165m/h Galvanized Wire Mesh

  • High Light

    PVC Coating gabion netting

    ,

    0.5mm gabion netting

    ,

    Hexagonal gabion cage wall

  • Mesh Size
    66*88
  • Wire Diameter
    1.6-4.0mm
  • Mesh Width
    5m
  • Place of Origin
    China
  • Brand Name
    JINLIDA
  • Certification
    SGS,CE
  • Minimum Order Quantity
    1 Set/Sets
  • Price
    Competitive price
  • Packaging Details
    Nude packing and will be fixed in the 40'container by iron wire
  • Delivery Time
    50days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    200 Sets per Year

Automatic 66*88mm Gabion Machine 165m/h Galvanized Wire Mesh

Hexagonal Wire Mesh Gabion Wire Mesh , 0.5mm Thickness Of Pvc Coating





Quick Detail:



1. Heavy and hot dipped galvanized low carbon steel wires, galfan(Zn 5%Al), Zn 10% Al, pvc coated

2. Thickness of pvc coating: 0.5mm





woven wire mesh

Why chose Jiangyin Jinlida Gabions for your projects?

1. Jinlida is the earliest and largest manufacturer of gabion structures in China.

2. Member of Chinese Hydraulic Engineering Society(CHES).

3. Member of China Institute of Water Resources.

4. Editor unit of China gabion engineering and technology standard.

5. The only one enterprise recommended by China Ministry of Water Resources in the field of gabion structures.

6.Strictly implement and meet international standard ASTM STANDARD or BS EN STANDARD and pass

ISO & SGS quality certificate system.



Woven Wire Mesh Specifications:

special wire gauges and box sizes available on request.

GABION SIZE

Mesh opening

60x80mm, 80 x 100 mm, 100x120mm

Wire size

2.0mm, 2.2mm, 2.4mm, 2,7 mm, 3.0mm, 3.2mm, etc.

 Tolerance

Lenght

± 3%

Width

± 5%

Height

± 5%

Woven wire mesh Materials

Heavy and hot dipped galvanized low carbon steel wires, galfan(Zn 5%Al), Zn 10% Al, pvc coated

Zinc/galfan/ Zn 10%Al coating

2.2mm/2.4mm≥270gsm

2.7mm/3.0mm/3.4mm≥300gsm

Thickness of pvc coating: 0.5mm
