3.7mm Diameter Low Noise Gabion Box Machine galfan coated

Place of Origin China
Brand Name Jinlida
Certification CE
Model Number LNWL43-100-2
Minimum Order Quantity 1 SET
Packaging Details Nude packing
Delivery Time 50-60 days
Payment Terms L/C T/T
Supply Ability 200 sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gabion Basket Machine Mesh Size 84x120mm
Wire Diameter 1.6-3.7mm Max Mesh Width 4300mm
Control System PLC Control System
High Light

Low Noise Gabion Box Machine

,

3.7mm diameter Gabion Box Machine

,

3.7mm diameter wire mesh making machine

Leave a Message
Product Description

84 x 120mm Mesh Size Low Noise Automatic Gabion Basket Machine For Max Width 4300mm



Description:



   Jinlida insists on innovating, we have studied and produced automatic gabion production line, it can make gabion mesh automatic from mesh weaving to edge winding mesh sheet, this system will save labour force and improve output, it has high efficiency.



Specifications:



Product Name  Gabion mesh making machine Material  iron
Color  as customers requirement Certification  CE, ISO9001
Patent  ZL 99229381.2 and ZL 00267066.5 Control  PLC
Power  22kw Weight  14t
Mesh Size  84×120mm Width  4300mm
Wire Diameter  1.6-4.0mm Spindle Speed  25 r/min
Twist  3r Theoretic Output  195 m/h



    The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.

    We can manufacture gabion machine according to customers request.

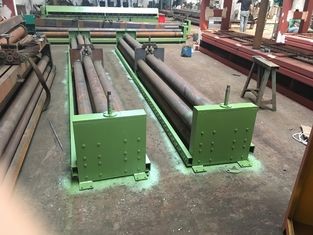

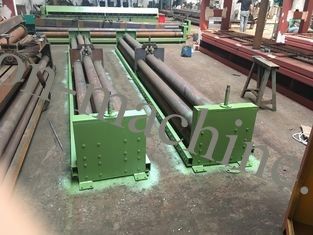

Products Show

3.7mm Diameter Low Noise Gabion Box Machine galfan coated 0  3.7mm Diameter Low Noise Gabion Box Machine galfan coated 1  3.7mm Diameter Low Noise Gabion Box Machine galfan coated 2



Detail Specifications for all style of LNWL-2 Gabion Machine

Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3 25 11 165
LNWL23-80-2 80X100 1.6-3 195
LNWL23-100-2 100X120 1.6-3.2 225
LNWL23-120-2 120X150 1.6-3.5 20 255
LNWL33-60-2 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80X100 1.6-3 195
LNWL33-100-2 100X120 1.6-3.2 225
LNWL33-120-2 120X150 1.6-3.5 20 255
LNWL43-60-2 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80X100 1.6-3 195
LNWL43-100-2 100X120 225
LNWL43-120-2 120X150 1.6-3.2 20 255



A Set Of Gabion Machine Including Below Machines:

3.7mm Diameter Low Noise Gabion Box Machine galfan coated 3



Advantages:



    1.Precise design of complete machine, compact conformation, handiness and simplicity.



    2.Its product is widely used in petroleum, building, farming and chemical engineering industry, keep warm piping and other piping.



    3.Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.
