Galvanized Galfan Gabion Box Machine With Low Friction

Place of Origin China
Brand Name Jinlida
Model Number LNWL43-80-2
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 50 days
Payment Terms L/C,T/T
Supply Ability 200 sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gabion Mesh Machine Mesh Size 80×100mm
Type Automatic PLC Control Mesh Width 4300m
Output 195m/h
High Light

Galvanized Galfan Gabion Box Machine

,

Galvanized Galfan mesh Box Machine

,

low friction mesh Box Machine

Leave a Message
Product Description

Hexagonal Gabion Box Machine Galvanized Galfan Or PVC Coated Wire Mesh





Quick Detail:



1) Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.



2) PLC control system touch screen is available for the hexagonal wire mesh machine.



3) Automatic stop system saves much labor force.



Description:



    The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.

     We can manufacture gabion machine according to customer request.



Gabion Application



    Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.



Main Specification:



 1. Mesh sizes: 80X100mm

2. twist: double twist

3. Max. netting width: 4300mm

4. Max. galvanized wire diameter: 3mm

5. Max PVC wire diameter: 4mm

6. Spindle Speed:25r/min

7. Power: 15Kw

8. Size: 7200 x 1400 x 2400mm

9. Weight: 15T

10. Theoretic output: 195m/hr

11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically

12. Infrared ray safety protection system (option)

13. Automatic oil system

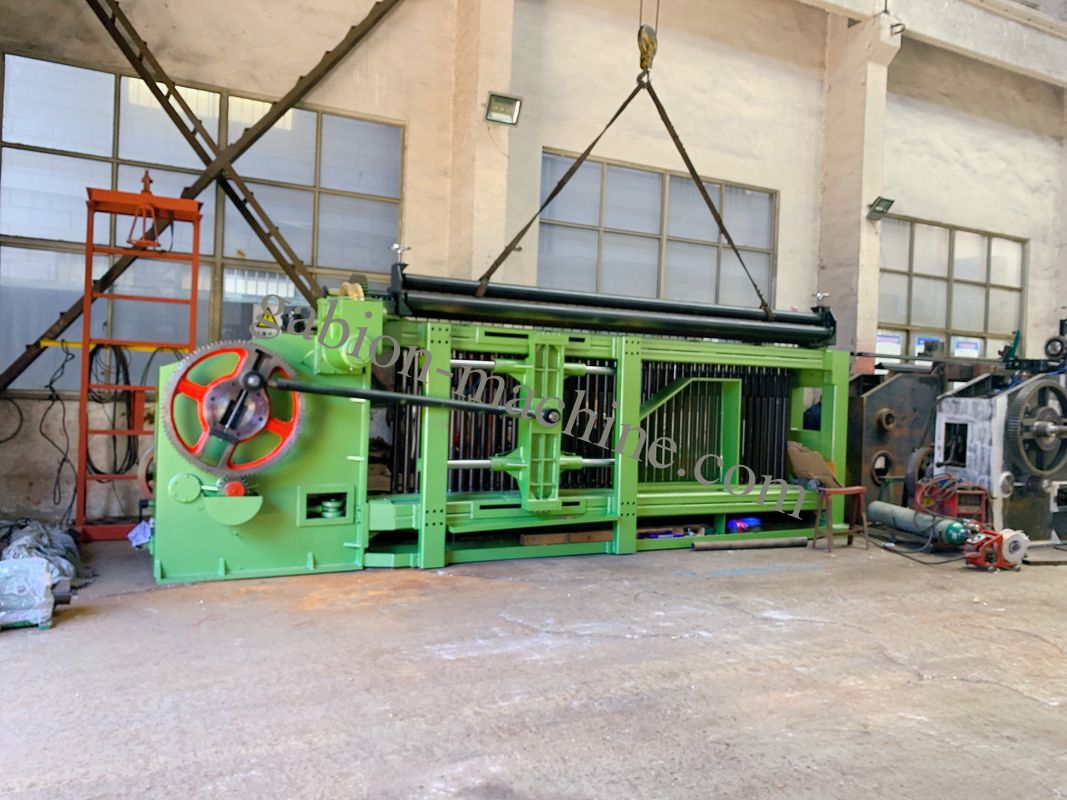

Picture For Gabion Machine Working



 Galvanized Galfan Gabion Box Machine With Low Friction 0



Galvanized Galfan Gabion Box Machine With Low Friction 1





Competitive Advantage:



      1. Jinlida company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of gabion machine making for 15 years.



      2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

process, so the quality can be ensured.



      3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
