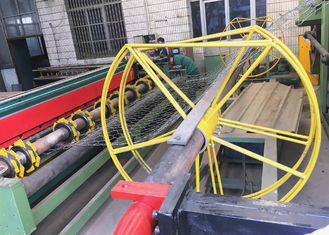

4000mm 25RPM Gabion Wire Mesh Straightening Machine

  • 4000mm 25RPM Gabion Wire Mesh Straightening Machine
  • 4000mm 25RPM Gabion Wire Mesh Straightening Machine
  • 4000mm 25RPM Gabion Wire Mesh Straightening Machine
  • 4000mm 25RPM Gabion Wire Mesh Straightening Machine
  • 4000mm 25RPM Gabion Wire Mesh Straightening Machine
  • 4000mm 25RPM Gabion Wire Mesh Straightening Machine
Place of Origin China
Brand Name Jinlida
Certification CE ISO
Model Number NSS-100
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 30 days
Payment Terms L/C,T/T
Supply Ability 200 sets/year
Product Details
Working Width 4000mm Power 2.3kw
Material 133 Seamless Tube Weight 1200kg
Overall Size 4300x760x1170mm Speed 6-25r/minute
High Light

gabion Mesh Straightening Machine

,

wire Mesh Straightening Machine

,

25RPM gabion Straightening Machine
Leave a Message
Product Description

Hexagonal Wire Mesh Gabion Production Line Reno Mattress Machine With CE Certificate



Company Profile.pdf



Quick Detail:



1.This equipment is the necessary equipment of the hexagonal wire mesh production line.

2. It is used for the structural deformation of the forming hexagonal wire mesh, and adjustment of wire's

starting deformation.

3.It also can reduce the deformation of wire stress, have good effect.



Specifications:



1) Width: 4m

2) Servo Motor power: 3w

3) The diameter of wire: 5.0mm

4) Number of rollers: 3

5) Material of roller: 133 seamless tube

6) Weight: 1200kg

7) Dimension: 4300x760x1170mm

8) Speed: 6-25r/minute

Usage Gabion production line Condition New
Net Width 4300mm Max. Wire Diameter 5mm
Output 8.5m/min Power 3kw
Roller Speed 20turn/min Size 5100×1250×1350mm


Description:



1. This machine has separate transmission, manual adjusting, the aperture of pressing roll, handle control bottom, it can realize the upper  roller's alone adjustment, inching and continuous sending into the material roller, it is easy to cooperate and grasp.

2. We professionally support gabion production line, Gabion product line is composed of heavy-duty

hexagonal wire mesh machine, netting sheet cutting machine, netting sheet straightening machine, wrapped

edge machine, gabion packing machine, and steel Rod Straightening Cutting Machine.



Competitive Advantages:



1.According to the products and raw materials appropriately adjust the speed and reduce rate of broken.


2.Mesh is well-arranged and distributed evenly and orderly.


3.It is characterized by precise design, compact conformation, simple structure, flexible and reliable operation and convenient maintenance.

4000mm 25RPM Gabion Wire Mesh Straightening Machine 0
