Automatic Gabion Mesh Netting Hydraulic Packing Machine

Place of Origin China
Brand Name Jinlida
Certification CE ISO
Model Number PM-100
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 30 days
Payment Terms L/C,T/T
Supply Ability 200sets/ a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Woking Width 2m Power 5.5kw
Weight 3000kg Overall Size 2340mmx1050mmx2350mm
High Light

Gabion Netting Hydraulic Packing Machine


mesh Netting Hydraulic Packing Machine


Automatic Gabion mesh Packing Machine

Leave a Message
Product Description

Custom Gabion Production Line Automatic Gabion Netting Hydraulic Packing Machine


Company Profile.pdf




1. Overall size: 2340mmx1050mmx2350mm
2. Power: 5.5kw
3. Max Packing Size: 2mx1mx1m (packing size also can produce as your requirements)
4. Work Pressure: 380V
5. Weight: 3000kgs



Gabion Packing Machinery is dedicated for gabion mesh's packing, press the gabion to smaller CBM. The

machine has an independent power sector and electrical systems, using the button to centralized control.

The machine consists of rack, pressure plate, oil cylinder, oil pump unit, tank, electrical box and so on. It can

 produce as your requirement.



Automatic Gabion Mesh Netting Hydraulic Packing Machine 0


Operating principle


When the machine work, oil pump unit provide the pressure oil via safety valve limit the pressure and enter

manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder

via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to tank

via reversing valve. When Manual reversing valve work in the middle, the up and down oil of oil cylinder will

be closed by reversing valve, pressure plate can keep pressure and stay on anywhere, oil cylinder

discharge loads via reversing valve, when reversing valve work on the right, pressure oil enter down part of

oil cylinder pull pressure plate run upwards, the up part oil of the oil cylinder flow back to tank via reversing


Above of the oil cylinder arranges the middle device, can decrease the pressure and run to the up limit.

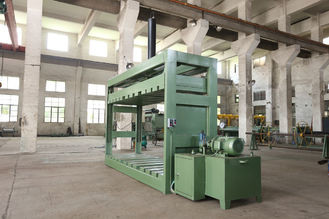

Automatic Gabion Mesh Netting Hydraulic Packing Machine 1



Competitive Advantage:


1. All the parts of netting sheet cutting machine are processed by our own factory, no parts were send to

outside to process, so the quality can be ensured.


2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
