Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh

  • Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh
  • Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh
  • Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh
  • Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh
  • Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh
  • Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh
Place of Origin China
Brand Name Jinlida
Model Number LNWL4
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 50 days
Payment Terms L/C,T/T
Supply Ability 300 sets/a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gabion Mesh Machine Mesh Size 66*80mm
Type Automatic Mesh Width 2300m
Speed 165m/h
High Light

1200mm GI Wire Net Making Machine

,

1" GI Wire Net Making Machine

,

Automatic Chicken Cage mesh machine
Leave a Message
Product Description

Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh



hexagonal wire netting machine hexagonal mesh machine supplier Hexagonal wire mesh netting machine also called chicken cage wire mesh machine, is automatically feeding wire weaving mesh, taking up rolls and higher speed than similar machinery. Hexagonal wire mesh is mainly used for chicken feeding, graze protection, industrial filtering, decoration usage,etc.





Description:



  • 1.It uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.



    2.The machine is supposed to be in continuous and smooth operation, saving much labour force.It has low noise and automatic stop system.If coiling wires are ran out,the machine will stop automatically.



    3.The LNWL4 series mesh weaving machines have been designed to make gabion mesh of various widths and mesh sizes.



Specifications:

1. Mesh sizes: 66*80mm

2. twist: double twist

3. Netting width: 2300mm

4. Galvanized wire diameter: 2.6mm

5. Max PVC wire diameter: 4.2mm

6. Spindle Speed:25r/min

7. Power: 15kw

8. Size: 7200 x 1400 x 2400mm

9. Weight: 13T

10. Theoretic output: 165m/hr

11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop

automatically

12. Infrared ray safety protection system (option)

13. Automatic oil system

Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh 0

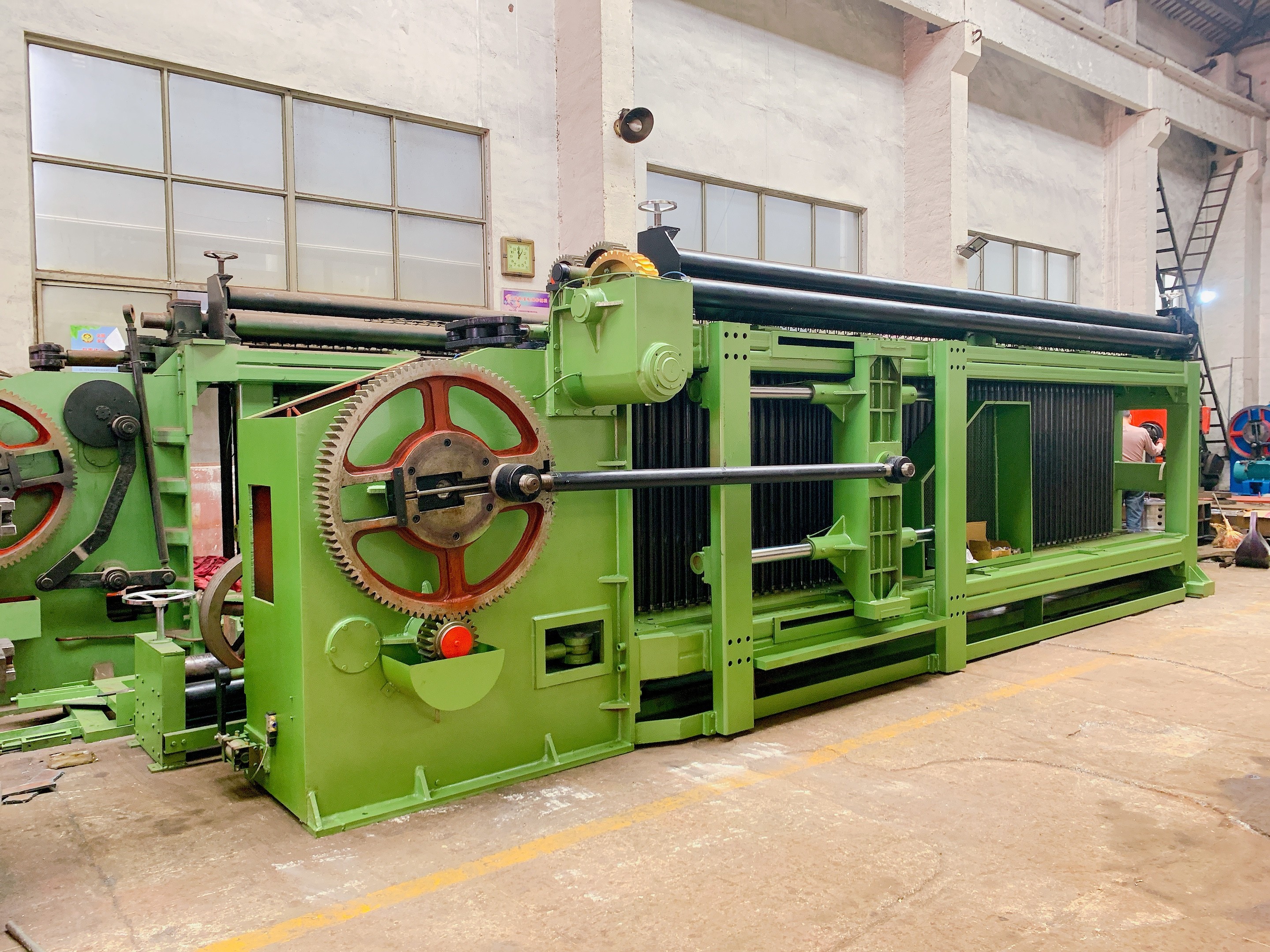

Easy Operation Automatic Stop Gabion Machine 66*80mm Wire Mesh 1






Advantages:



1.We accept any special order form clients. Twists selection: double twists(3 cross); three twists(5 cross); double twists share with three twists       (3 cross share with 5 cross together).



2. Mesh is well-arranged and distributed evenly and orderly.



    3.Simple operation.
