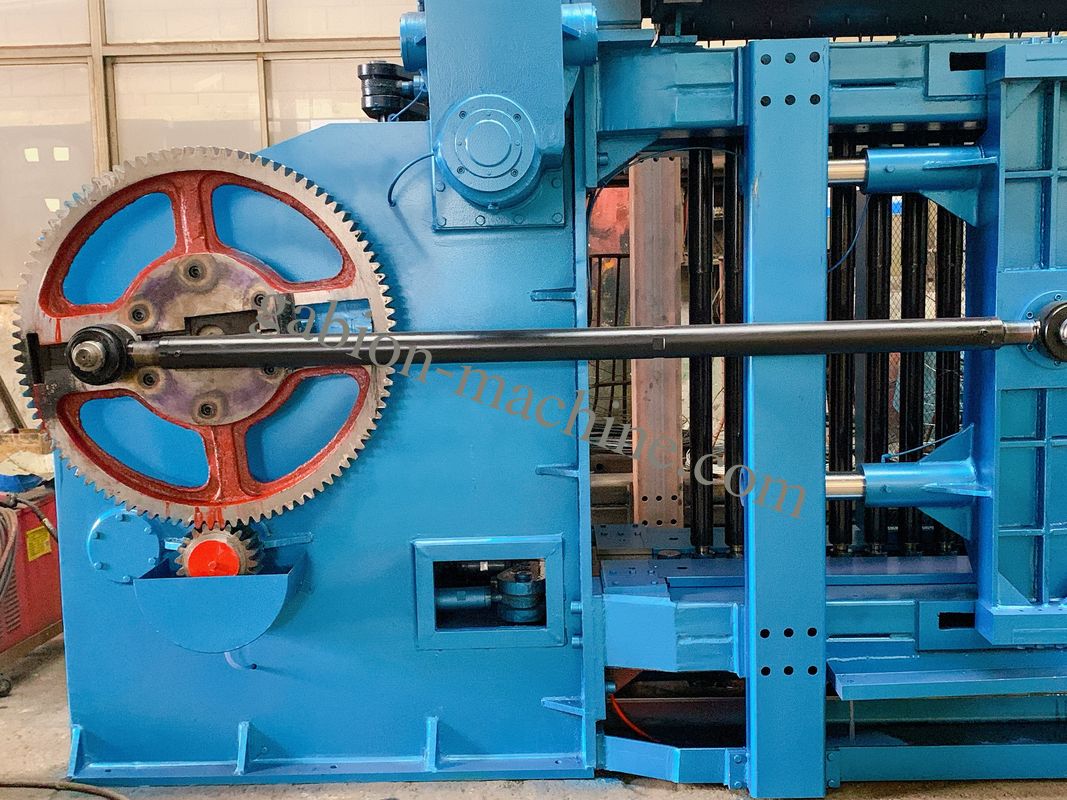

83m/H Trapezoidal PVC Galfan Coated Hexagonal Netting Machine

Place of Origin China
Brand Name JINLIDA
Model Number LNWL4
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 50 days
Payment Terms L/C,T/T
Supply Ability 300 sets/a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Gabion Netting Machine Mesh Size 80*100mm
Mesh Width 4000m Wire Diameter 3.2mm
Speed 83m/h
High Light

83m/h Hexagonal Netting Machine


trapezoidal Hexagonal Netting Machine


trapezoidal hexagonal mesh machine

Leave a Message
Product Description

Zinc / PVC Galfan Coated Wire Mesh Hexagonal Wire Netting Making Machine



Quick Detail:


1) Mesh sizes: 80*100mm
2) Max netting width: 4300mm
3) Max galvanized wire diameter: 1.6-4.2mm
4) Power: 22kW
5) Theoretic output: 195m/hr




  • JINLIDA is professional manufacturer, not trading company, we supply advanced machine to oversea clients directly only. We can produce the machine as your requirement.
  • Model GLL (T) is a light series of mesh weaving machines, including 7 different types of machines, i.e. with which the galvanized hexagonal wire mesh of different apertures can be woven
  • The maximum diameter of the wire that can be woven on this type of machine is 1.2m. This series of product include two types of machines, i.e. the single-head and the double-head machine
  • The maximum weaving breadth of the single-head machine is 1.2m and that of the double-head machine is 2.2m.
  • Separated from the middle, the double-head machine can weave two 1m wide meshes simultaneously
  • Type 1/2' and Type 3/4' machine can weave trapezoidal wire-mesh after necessary refitting
  • This kind of wire mesh is widely used as the skeleton of the asbestos shingle




Style Specification Mesh size Width Wire diamater Twisting  Lines Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) r (r/min) (kw) (m/h)
LNWL-1015-2 1/2' 15x18 1200 0.8 3 33 3 51
LNWL-1018-2 5/8' 18x5 0.9 3 67
LNWL-1022-2 3/4' 22x33 1.2 3-5 83
LNWL-1027-2 1' 27x41 3-5 100
LNWL-1032-2 1/1/4' 32x52 3-5 122
LNWL-1039-2 1/1/2' 39x61 3 142
LNWL-1055-2 2' 55x70 1.5 3 162
LNWL-1078-2 3' 78x86 3-5 194
LNWL-2015-2 1/2' 15x18 2200 0.8 3 33 3 51
LNWL-2018-2 5/8' 18x5 0.9 3 67
LNWL-2022-2 3/4' 22x33 1.2 3-5 83
LNWL-2027-2 1' 27x41 3-5 100
LNWL-2032-2 1/1/4' 32x52 3-5 122
LNWL-2039-2 1/1/2' 39x61 3 142
LNWL-2055-2 2' 55x70 1.5 3 162
LNWL-2078-2 3' 78x86 3-5 194



Competitive Advantage:


1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of gabion machine making for 15 years.


2. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to

process, so the quality can be ensured.


3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

 technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
