Home > products > Gabion Mesh Machine > 80x100mm Landslide Protection Wire Netting Machine Overload Protect

80x100mm Landslide Protection Wire Netting Machine Overload Protect

Product Details

Place of Origin: China

Brand Name: Jinlida

Certification: CE,SGS

Model Number: LNWL43-80-3

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Competitive price

Packaging Details: Nude packing and will be fixed in the 40'container by iron wire

Delivery Time: 50 days

Payment Terms: L/C, T/T

Supply Ability: 200 Set/Sets per Year

Get Best Price
Highlight:

Landslide Protection Wire Netting Machine

,

Landslide Protection mesh weaving Machine

,

Overload Protect mesh weaving Machine

Wire Diameter (mm):
1.6-4.0mm
Mesh Size:
80*100mm
Spindle Speed:
25r/min
Material:
Iron
Power (kW):
22kw
Weight (KG):
15000
Wire Diameter (mm):
1.6-4.0mm
Mesh Size:
80*100mm
Spindle Speed:
25r/min
Material:
Iron
Power (kW):
22kw
Weight (KG):
15000

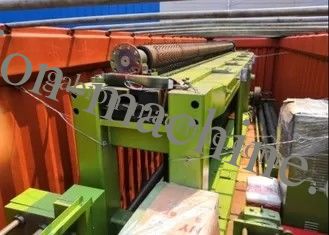

80x100mm Landslide Protection Wire Netting Machine Overload Protect

Professional Custom Gabion Wire Mesh Machine With Overload Protect Clutch





Quick Detail:



1.Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project.



2. it is the good material to prevent or control flood.





Description:



△Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be

used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir

and other construction project, and it is the good material to prevent or control flood.



△Hexagonal Gabion Mesh Weaving Machine with 4M maximum working width. A Mesh recoiler is required if

need to produce in "roll" form.




Specifications:

Overall Size 7850×1600 ×2300mm Mesh Size 80×100mm
Power 22kw Weight 14000kg
Mesh Width 4300mm Max Wire Diameter 4.2mm
Automatic oil system
PLC control system touch screen(option)
Automatic stop system(option)
specialized pressing device(option)
Infrared ray safety protection device(option)





Improving


1.LNWL4 gabion machine use eccentric reed pipes, do little harm to wire coating layer, reduce machine overload.


2. The wire mesh machine uses big worm gear case,it reduces oil temperature to avoid worm burning hot.And the force of pulling mesh is greater.



3. Nodular cast iron is used by new machine, good toughness and wear-resisting.



4.Nodular cast iron is used by new machine, good toughness and wear-resisting.

80x100mm  Landslide Protection Wire Netting Machine   Overload Protect 0 80x100mm  Landslide Protection Wire Netting Machine   Overload Protect 1



Advantages

1. We offer fine quality, competitive prices,prompt delivery and a satisfying service.



2. Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.



3. Every part of gabion mesh machine is high quality,they are assembled by skilled workers who have years of experience.
