Three Twist Gabion Mesh Machine , 25m/Min Gi Wire Net Making Machine

Place of Origin China
Brand Name JINLIDA
Certification TUV
Model Number LNWL33-80-2
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 30 days
Payment Terms L/C,T/T
Supply Ability 200 sets/a year
Product Details
High Light

three twist Gabion Mesh Machine

,

25m/min Gabion Mesh Machine

,

TUV gi wire net making machine

Leave a Message
Product Description

Automatic Gabion Mesh Machine Gabion Box Production Line



Quick Detail:



1. It can use Siemens PLC Control System according your demands!

2.This machine is our new style, it can weave double-twist and three twist gabion mesh on the same machine and also can weave the mesh that 4.0mm diameter.

3.This type machine is using spiral coil.



Specification:



Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL43-60-3ZX 60X80 4300 1.6-3.2 25 22 165
LNWL43-80-3ZX 80X100 1.6-4.0 195
LNWL43-100-3ZX 100X120 225
LNWL43-120-3ZX 120X150 1.6-4.0 20 255

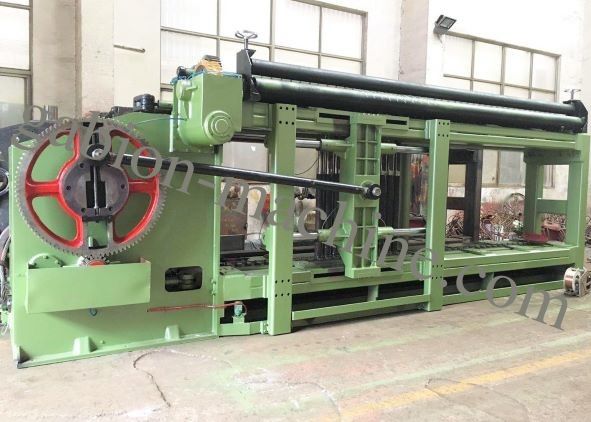

Pic 1 Mesh Weaving Machine

Three Twist  Gabion Mesh Machine , 25m/Min Gi Wire Net Making Machine 0



Three Twist  Gabion Mesh Machine , 25m/Min Gi Wire Net Making Machine 1





Advantages:

1. The LNWL-3 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes; we can produce the machne as your size.

2. This new 3 series gabion mesh machines structure is simpleness, it can make the machine weaving mesh more easier.

3. The capability is stabilization, all the points of iunction have bearing to fix, the parts will hard-wearing, lengthen machine life.

4. The mesh that 3 series machine weave, the part of twist will be longer that 2 series mchine, so when the mesh need edge curl that using the selvedge machine, it will going easily and smoothly.





This type machine is using spiral coil. And the twist could be double twisted and three twisted

as below picture.

Three Twist  Gabion Mesh Machine , 25m/Min Gi Wire Net Making Machine 2         Three Twist  Gabion Mesh Machine , 25m/Min Gi Wire Net Making Machine 3        Three Twist  Gabion Mesh Machine , 25m/Min Gi Wire Net Making Machine 4

Pic 1:double twist mesh                   Pic 2: three twist mesh                  Pic 3: Gabion box application





JINLIDA Series Prduction Line

Three Twist  Gabion Mesh Machine , 25m/Min Gi Wire Net Making Machine 5



Competitive Advantage:



 1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of gabion machine making for 15 years.

 2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

process, so the quality can be ensured.

 3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
