Automatic Gabion Box Machine 6 bars Spiral Coiling Machine 1.5kw

China Automatic Gabion Box Machine 6 bars Spiral Coiling Machine 1.5kw supplier
Automatic Gabion Box Machine 6 bars Spiral Coiling Machine 1.5kw supplier Automatic Gabion Box Machine 6 bars Spiral Coiling Machine 1.5kw supplier Automatic Gabion Box Machine 6 bars Spiral Coiling Machine 1.5kw supplier Automatic Gabion Box Machine 6 bars Spiral Coiling Machine 1.5kw supplier

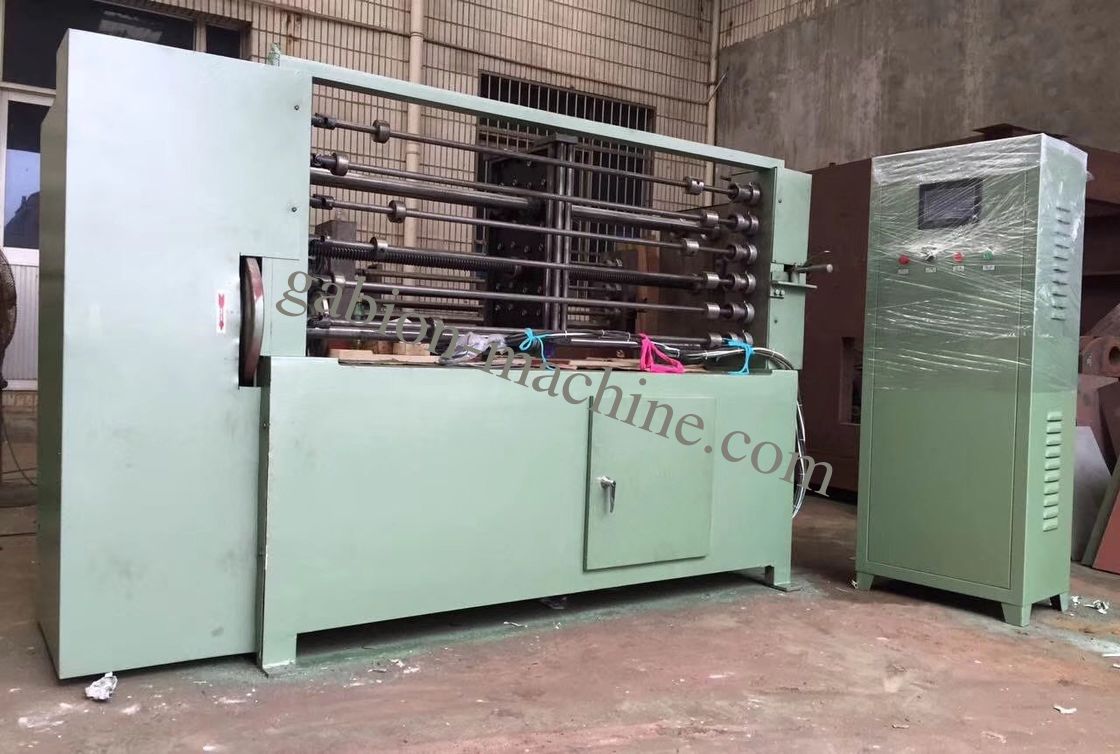

Large Image :  Automatic Gabion Box Machine 6 bars Spiral Coiling Machine 1.5kw

Product Details:

Place of Origin: China
Brand Name: Jinlida
Certification: CE ISO
Model Number: 1200-4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Competitive price
Packaging Details: Nude packing
Delivery Time: 50 days
Payment Terms: L/C,T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Number Of Bar: 4 Or 6 Power: 1.5kw
Wire Diameter: 1.6-4.0mm

Automatic Gabion Box Machine Gabion Wire Baskets , Spiral Coiling Machine



Company Profile.pdf



Quick Detail:



       A set of gabion box machine includes four main parts: mesh weaving machine, roll mesh machine, coiling spring machine, warping machine.



Descrition:



      The series gabion box machines have been designed to make gabion mesh of various widths and mesh

sizes. The possible coatings are heavily galvanized and zinc. for high corrosion resistance, zinc and pvc

coated wire is available.



      The machine can continuously work, smooth running, low noise, automatically stop and give an alarm when

 spring wires are run out.



Application:



      The gabion box machine is widely used in oil, construction, raising, chemical industry, warming piping and

 etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect

sea wall, hillside, road, bridge and civil engineering. It is one of the best against flooding materials.



Specifications:



Style

Mesh size

Width

Wire diamater

Spindle Speed

Twist

power of motor

Theoretic output

(mm)

(mm)

(mm)

(r/min)

(r )

(kw)

(m/h)

LNWL23-60-2

60X80

2300

1.6-3.2

25

3

11

165

LNWL23-80-2

80X100

1.6-4.0

3

195

LNWL23-100-2

100X120

1.6-4.0

3

225

LNWL23-120-2

120X150

1.6-4.2

20

3

255

LNWL33-60-2

60X80

3300

1.6-3.2

25

3

15

165

LNWL33-80-2

80X100

1.6-4.0

3

195

LNWL33-100-2

100X120

1.6-4.0

3

225

LNWL33-120-2

120X150

1.6-4.2

20

3

255

LNWL43-60-2

60X80

4300

1.6-3.2

25

3

22

165

LNWL43-80-2

80X100

1.6-4.0

3

195

LNWL43-100-2

100X120

1.6-4.0

3

225

LNWL43-120-2

120X150

1.6-4.2

20

3

255

LNWL43-60-3

60X80

1.6-3.2

25

5

165

LNWL43-80-3

80X100

1.6-4.0

5

195

LNWL43-100-3

100X120

1.6-4.0

5

225

LNWL43-120-3

120X150

1.6-4.2

20

5

255



Competitive Advantage:



      1. Jinlida company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of gabion machine making for 15 years.



      2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

process, so the quality can be ensured.



      3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

 price if customer need.
