Automatic Hexagonal Mesh Packing Machine 80KN Pressure , 700mm Working Stroke

Place of Origin China
Brand Name Jinlida
Model Number HMP-100
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 30 days
Payment Terms L/C,T/T
Supply Ability 200 sets/ a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Automatic Pressure 80KN
Application Construction Certification CE/ISO9001
Name Gabion Packing Machine Power 5.5kw
High Light

Gabion Mesh Making Machine

,

wire mesh machines

Leave a Message
Product Description

Automatic Hexagonal Mesh Packing Machine 80KN Pressure , 700mm Working Stroke





Quick Detail:

Brand Name Jinlida Overall Size 2340×1050×2350mm
Power 5.5kw Max Packing Size 2m×1m×1m
Work Pressure 380V Weight 300kg

       1. Nominal pressure: 80KN

       2. Working stroke: 700mm

       3. Pressure plate downwards running speed: ≥35mm/s

       4. Pressure plate upwards running speed: ≥50mm/s

       5. Machine packing size (L*W*H): 3700x2450×1250mm



Description:


        Hexagonal mesh Packing Machinery is dedicated for gabion mesh's packing, press the gabion to smaller

CBM. The machine has an independent power sector and electrical systems, using the button to centralized

control. The machine consists of rack, pressure plate, oil cylinder, oil pump unit, tank, electrical box and so

on. It can produce as your requirement.



Operating principle



       When the machine work, oil pump unit provide the pressure oil via safety valve limit the pressure and enter

manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder

via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to tank

via reversing valve. When Manual reversing valve work in the middle, the up and down oil of oil cylinder will

be closed by reversing valve, pressure plate can keep pressure and stay on anywhere, oil cylinder

discharge loads via reversing valve, when reversing valve work on the right, pressure oil enter down part of

oil cylinder pull pressure plate run upwards, the up part oil of the oil cylinder flow back to tank via reversing

valve.

       Above of the oil cylinder arranges the middle device, can decrease the pressure and run to the up limit.

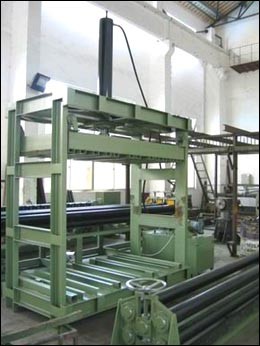

Automatic Hexagonal Mesh Packing Machine 80KN Pressure , 700mm Working Stroke 0  Automatic Hexagonal Mesh Packing Machine 80KN Pressure , 700mm Working Stroke 1

Specifications:



      1. Nominal pressure: 80KN

      2. Working Stroke: 700mm

      3. Pressure plate downwards running speed: ≥35mm/s

      4. Pressure plate upwards running speed: ≥50mm/s

      5. Machine packing size (L*W*H): 3700x2450×1250mm

      6. Packing size of gabion mesh: 2000×1000×1000mm

      7. Hydraulic system working pressure: 5MPa

      8. Hydraulic oil: 32# hydraulic oil 120KG

      9. Machine power: 5.5Kw



Competitive Advantages:



1. All the parts of netting sheet cutting machine are processed by our own factory, no parts were send to

outside to process, so the quality can be ensured.

2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
