Heavy Duty Hexagonal Wire Netting Machine / Automatic Gabion Mesh Machine

Place of Origin China
Brand Name Jinlida
Model Number LNWL-1015-2
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 50 days
Payment Terms L/C,T/T
Supply Ability 300 sets/a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Automatic Usage Making Hexagonal Mesh
Width 1200mm-3300mm
High Light

wire straightening machine

,

Wire Netting Weaving Machine

Leave a Message
Product Description

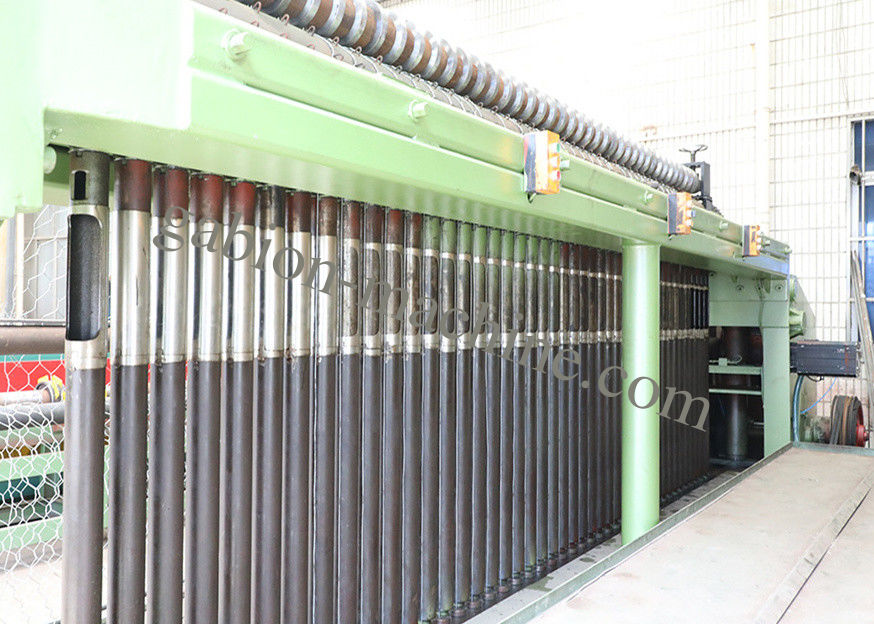

Heavy Duty Hexagonal Wire Netting Machine / Automatic Gabion Mesh Machine




Quick Detail:



1) Mesh sizes: 27x41mm
2) Max netting width: 1200mm
3) Max galvanized wire diameter: 1.2mm
4)Power: 3kW
5)Theoretic output: 100m/hr





Descrition:

  • JINLIDA is professional manufacturer, not trading company, we supply advanced machine to

        oversea clients directly only. We can produce the machine as your requirement.

  •  Model GLL (T) is a light series of mesh weaving machines, including 7 different types of machines,

        i.e. with which the galvanized hexagonal wire mesh of different apertures can be woven

  • The maximum diameter of the wire that can be woven on this type of machine is 1.2m. This series

       of product include two types of machines, i.e. the single-head and the double-head machine

  • The maximum weaving breadth of the single-head machine is 1.2m and that of the double-head

        machine is 2.2m

  • Separated from the middle, the double-head machine can weave two 1m wide meshes

        simultaneously

  • Type 1/2' and Type 3/4' machine can weave trapezoidal wire-mesh after necessary refitting
  • This kind of wire-mesh is widely used as the skeleton of the asbestos shingle





Specifications:



1) Mesh sizes: 27x41mm
2) Max netting width: 1200mm
3) Max galvanized wire diameter: 1.2mm
4)Power: 3kW
5)Theoretic output: 100m/hr
6)Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
7)Infrared ray safety protection system (option)
8)Automatic oil system





Style

Specification

Mesh size

Width

Wire diamater

Twisting  Lines

Spindle Speed

power of motor

Theoretic output

(mm)

(mm)

(mm)

r

(r/min)

(kw)

(m/h)

LNWL-1015-2

1/2'

15x18

1200

0.8

3

33

3

51

LNWL-1018-2

5/8'

18x5

0.9

3

67

LNWL-1022-2

3/4'

22x33

1.2

3/5

83

LNWL-1027-2

1'

27x41

3/5

100

LNWL-1032-2

1/1/4'

32x52

3/5

122

LNWL-1039-2

1/1/2'

39x61

3

142

LNWL-1055-2

2'

55x70

3

162

LNWL-1078-2

3'

78x86

3/5

194

LNWL-2015-2

1/2'

15x18

2200

0.8

3

33

3

51

LNWL-2018-2

5/8'

18x5

0.9

3

67

LNWL-2022-2

3/4'

22x33

1.2

3/5

83

LNWL-2027-2

1'

27x41

3/5

100

LNWL-2032-2

1/1/4'

32x52

3/5

122

LNWL-2039-2

1/1/2'

39x61

3

142

LNWL-2055-2

2'

55x70

3

162

LNWL-2078-2

3'

78x86

3/5

194





Competitive Advantage:



1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of gabion machine making for 15 years.



2. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to

process, so the quality can be ensured.



3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
