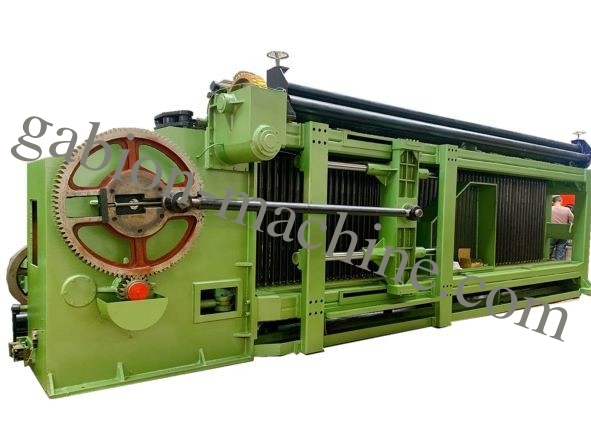

Automatic 84*110mm Gabion Machine 4300mm PVC Wire Mesh Landscape Protection

Place of Origin China
Brand Name Jinlida
Model Number LNWL4
Minimum Order Quantity 1
Price Competitive price
Packaging Details Nude packing
Delivery Time 40 days
Payment Terms L/C,T/T
Supply Ability 200 sets/a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Gabion Machine Mesh Width 4300mm
Mesh Size 84*110mm Wire Diameter 2.2-4.0mm
Speed 195m/h Application Machinery
High Light

PVC Coated Machine


pvc wire coating machine

Leave a Message
Product Description

Automatic 84*100mm Gabion Machine PVC Wire Mesh Landscape Protection
Quick Detail:
1.We have persevered in this area of gabion mesh machine for 15years.Jinlida invented the first special equipment of double twist wire netting machine in China(ZL99229381.2 and ZL00267066.5).
2.Every part of gabion mesh machine is high quality,they are assembled by skilled workers who have years of experience.
3.We provide 12months guarantee for all the equipment,and if customers need,we will arrange our professional technician to help install the machines in your country,and also can supply all the spare parts at cost price if customers need.
Gabion mesh machine is also known as heavy duty hexagonal wire mesh machine, which is professional equipment to produce hexagonal wire mesh. The hexagonal wire mesh machine, produced by this company is a special braiding machine to fabricate hexagonal mesh work, which is a new developed market-suitable product integrating the merits of domestic and oversea products.
Operating Principle:

Half gears spin clockwise and anticlockwise to weave mesh.




double twist


Mesh roller




double twist


Mesh roller




five twist


Mesh roller



双绞捻网速度double twist knitting speed


五绞捻网速度five twist knitting speed

60*85/ 28mmØ180/ 5









66*90/ 28mmØ191/ 5









70*90 /30mmØ191/ 570*90/ 45mmØ215/ 570*105/ 55mmØ203.8/42520
80*103/ 32mmØ215 / 580*115/ 45mmØ203/ 480*105/ 55mmØ203/ 42520
88*105/ 32mmØ218/ 588*115/ 45mmØ203/ 488*105/ 55mmØ203/ 42520
90*100/ 32mmØ218/ 590*115/ 45mmØ203/ 490*105/ 55mmØ203/ 42520
100*120/ 32mmØ242/ 5100*125 /45mmØ217/ 4100*115/ 55mmØ217/ 42520
110*140/ 32mmØ219/ 4110*126/ 45mmØ218/ 4110*116/ 55mmØ218/ 42520
120*140/ 32mmØ219/ 4120*140/ 45mmØ295/ 5120*130/ 55mmØ295/ 42520

1. -4H:不带伺服程序控制,-4HS:带伺服程序控制.
-4H: without servo program control, -4HS: with servo program control.

2. Ø拉网辊外径后面-4或-5为圆周上的拉网齿等分.
Mesh roller item: ‘4’ or ‘5’ means thorn nails equal parts number(how many nails rows of one roller ).

3. 网孔规格-32,-45,-55为网孔绞合部分的长度尺寸.
Double twist and five twist item: ‘32mm’, ‘45mm’, ‘55mm’ is twist length.

4. -4H型机设定每分钟理论生产速度为25个双绞网孔.
-4H machine theoretic output: 25 double twist mesh hole every minute.

5. -4HS型机设定每分钟理论生产速度为20个五绞网孔.
-4HS machine theoretic output: 20 five twist mesh hole every minute.


Related Machines

A set of gabion mesh machine is composed of hexagonal wire mesh machine,wire tension device, netting winding machine and spring coiling machine.

Automatic 84*110mm Gabion Machine 4300mm PVC Wire Mesh Landscape Protection 0

Automatic 84*110mm Gabion Machine 4300mm PVC Wire Mesh Landscape Protection 1

Competitive Advantage:

1.According to the products and raw materials appropriately adjust the speed and reduce rate of broken.
2.Mesh is well-arranged and distributed evenly and orderly.
3.It is characterized by precise design, compact conformation, simple structure, flexible and reliable operation and convenient maintenance.
