LNWL-5 River Bank Slope Protection Gabion Mesh Machine

Engineered for Flood Control, Retaining Wall Construction and Infrastructure Projects

5300 mm Working Width
＞30 Mesh Holes / Minute
PLC CNC Control | Servo Drive | One Operator

Product Overview

Built for Large-Scale Gabion Mesh Manufacturing

The JINLIDA LNWL-5 CNC Gabion Mesh Machine is developed for manufacturers producing gabion mesh used in riverbank protection, slope stabilization, retaining wall construction and flood control projects.

Designed for industrial production, the machine combines PLC automation, servo drive technology, digital parameter adjustment, and a heavy-duty mechanical structure to support continuous manufacturing.

It processes galvanized wire, Galfan wire and PVC-coated wire, making it suitable for a wide range of infrastructure applications.

Conclusion
LNWL-5 provides an automated production solution for manufacturers requiring consistent gabion mesh quality and high-capacity output.

Why High-Quality Gabion Mesh Matters

Infrastructure Projects Require Consistent Mesh Quality

Gabion systems are widely used in hydraulic engineering, transportation infrastructure and erosion control.

These applications require mesh with consistent dimensions, stable twist formation and compatibility with corrosion-resistant wire materials.

As project specifications become more demanding, manufacturers increasingly rely on CNC-controlled production equipment instead of manually adjusted systems.

Conclusion
Stable production equipment helps manufacturers produce gabion mesh suitable for demanding engineering applications.

The JINLIDA Solution

Designed Around Industrial Production

The LNWL-5 integrates automation with heavy-duty mechanical construction.

PLC Control

Digital operation through an industrial touch screen.

Servo Drive System

Stable movement control for continuous production.

Nodular Cast Iron Components

Designed for high structural strength in industrial applications.

Automatic Lubrication

Supports continuous machine operation.

Digital Twist Adjustment

Twist length can be adjusted directly through the control screen.

Three & Five Twist

Suitable for different project requirements.

Conclusion
Every major component is selected to support continuous industrial manufacturing rather than short-term production.

Technical Specifications

Applications

Supporting Critical Infrastructure

LNWL-5 is suitable for manufacturing gabion mesh used in:

• River Bank Protection
• Flood Control Projects
• Retaining Wall Construction
• Slope Stabilization
• Highway Engineering
• Railway Infrastructure
• Coastal Protection
• Mining Projects
• Hydraulic Engineering
• Landscape Construction

Conclusion
One production line supports multiple infrastructure markets.

How It Works

From Wire to Finished Gabion Mesh

Step 01

Wire is fed into the machine.

Step 02

PLC coordinates servo-controlled weaving.

Step 03

Hexagonal mesh is automatically formed.

Step 04

Three-twist or five-twist structures are completed.

Step 05

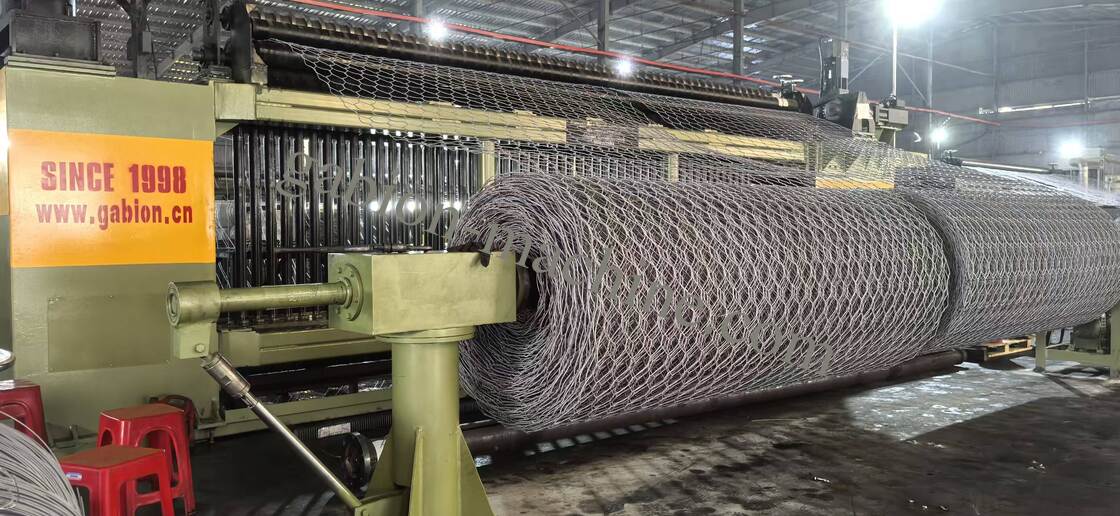

Finished mesh moves to the winding process.

Conclusion
Digital control simplifies production while maintaining consistent processing.

How to Choose

Five Questions Before Buying a Gabion Machine

Does it support your wire material?

Galvanized, Galfan or PVC-coated wire.

Does the working width meet your production plan?

LNWL-5 offers 5300 mm working width.

Is the control system digital?

PLC + Touch Screen + Servo Control.

Are the main components designed for industrial production?

Nodular cast iron structure with planetary reducer.

Does it support your required twist type?

Three Twist and Five Twist.

Conclusion
Choosing the right gabion machine means matching production requirements, engineering standards and long-term manufacturing goals.

Frequently Asked Questions

What wire materials can the machine process?

Galvanized wire, Galfan wire and PVC-coated wire.

What is the production speed?

More than 30 mesh holes per minute.

How many operators are required?

Only one operator under normal production conditions.

Does the machine support different twist types?

Yes. Three Twist and Five Twist are both available.

What industries is it suitable for?

River engineering, flood control, retaining walls, transportation infrastructure, mining and hydraulic construction.
