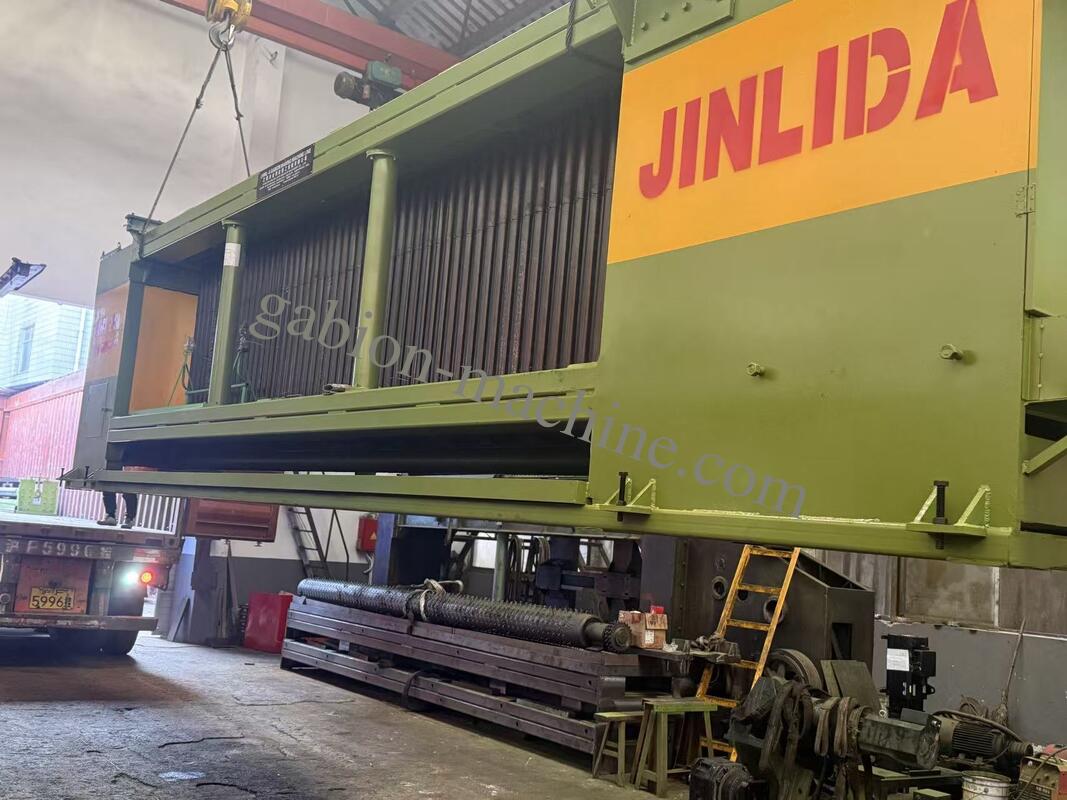

LNWL-5 CNC Gabion Mesh Machine 4300mm Working Width PLC Servo Drive for River Bank Slope Protection

Galvanized wire (hot-dip, Zn coating 40-350 g/m²), Galfan wire (Zn-5%Al alloy, 2-3* corrosion resistance of pure zinc in freshwater), and PVC-coated wire (core 2.0-3.4 mm + 0.4-0.8 mm PVC coating). The ceramic-coated twist dies and nylon feed rollers prevent coating damage during processing — a critical requirement for river and coastal projects where coating integrity directly determines gabion service life.

At the rated speed of >28 mesh holes per minute with 80*100mm opening and 2.7mm galvanized wire, this translates to approximately 50-65 standard panels per hour (2*1m panel). Actual throughput depends on wire diameter (thicker wire = slightly slower), mesh opening (finer mesh = more twists per panel = slightly slower), and operator proficiency. In a controlled 8-hour production test with pre-staged wire coils, the GW-LN430 produced 432 usable panels (54 panels/hour average) with a 1.4% scrap rate. Maximum daily output: approximately 400-520 panels per single shift.

One operator under normal production conditions. The operator's tasks are: loading wire coils (with overhead crane or forklift — not manual lifting), selecting production recipes on the HMI, monitoring the automatic lubrication system, performing periodic quality checks (mesh opening measurement every 50 panels), and managing finished mesh take-up. A second person is recommended for wire coil handling if coils exceed 300 kg or if the factory doesn't have mechanical lifting equipment. Real-world feedback: customers report that the single-operator design reduces labor costs by 50-67% compared to mechanically-adjusted machines requiring 2-3 operators for equivalent output.

Three-twist is the industry standard for most civil engineering applications: retaining walls, slope protection, river bank revetments, landscaping. The twist joint achieves 65-75% of parent wire tensile strength (per BS EN 10223-3 testing). Five-twist provides approximately 15-20% additional joint strength (80-90% of parent wire) and is specified when: (a) the gabion structure exceeds 8m height (higher surcharge loads), (b) dynamic loading is expected (railway corridors, heavy truck routes), (c) the design engineer has specifically called for enhanced twist in the project specification. Practical rule: if your customer's project specification doesn't mention twist type, 3-twist is the default. If the specification says "enhanced twist" or "5-twist," use five-twist mode. The GW-LN430 supports both through digital parameter selection — no hardware change required.

The automatic central lubrication system handles the #1 maintenance task — bearing lubrication — without operator intervention. The 3-liter oil reservoir requires refilling approximately every 4-6 months (HMI provides a low-level alert 14 days before empty). Other maintenance: Daily (10 minutes) — visual inspection of wire guides, clean HMI screen, check pneumatic system pressure. Weekly (30 minutes) — check cutting blade sharpness, inspect twist die surfaces for wear, verify servo motor cable connections. Monthly (2 hours) — replace automatic lubrication filter element, check all electrical terminal torque, calibrate wire tension load cells with reference spring gauge. Annual (1 day scheduled downtime) — replace timing belts, inspect main bearing clearances, full PLC diagnostic check, replace gearbox oil (synthetic PAO, 15 liters). Expected unplanned downtime with proper maintenance: <5 hours per 1,000 operating hours. The GW-LN430 is designed for 6,000-8,000 operating hours between major service intervals.

Yes — this is a primary application. Gabion mattresses (0.17-0.50m thickness * 2.0-4.0m width * 3.0-6.0m length) for riverbed scour protection are typically produced as roll-form mesh rather than cut panels. The GW-LN430's optional powered take-up reel (USD 2,800) winds continuous mesh onto a 1.5m diameter drum for transport to the project site, where it's cut to length during installation. This roll-form approach eliminates panel joints entirely in the mattress width direction. For fixed-length mattress panels, the integrated cutting shear produces clean, square cuts across the full 4300mm width at programmed intervals.
