PVC / Galvanized Gabion Machine / Hexagonal Wire Mesh Machine SGS TUV
1.Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc.
2.It is also used in fence, apartment and greening.
2.The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering.
4.It is one of the best against flooding material.
|Product Name||gabion mesh machine||Material||iron, PVC/ galvanized|
|Color||as customers' requirement||Certification||CE, ISO9001,SGS|
|Spindle Speed||25 r/min||Twist||3r|
|Theoretic Output||195 m/h||Patent||ZL99229381.2 and ZL00267066.5|
Gabion machine Jinlida brand
1. Invented first double twist gabion machine in China
2. Apply for national patents, number is ZL99229381.2 and ZL00267066.5
3. SGS,TUV certificate

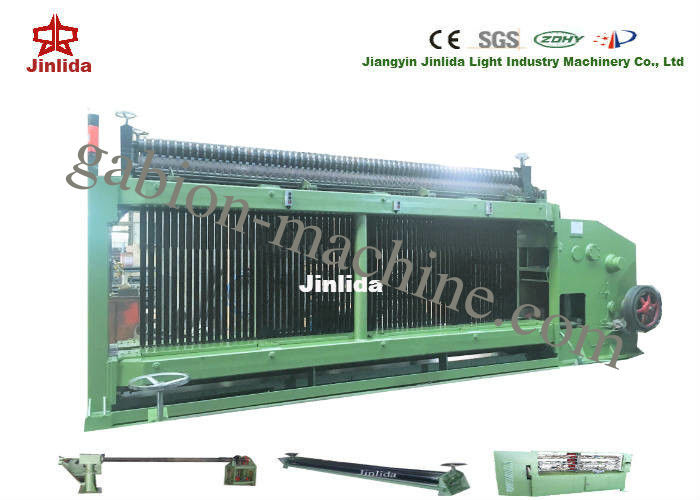

Jinlida series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.
We have 15 years export experience establishing trade with more than 30 countries, and Maccaferri,
DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.
Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also
used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,
road, bridge and civil engineering. It is one of the best against flooding material.
1. Mesh sizes: 80x100mm
2. twist: double twist
3. Max. netting width: 4300mm
4. Max. galvanized wire diameter: 1.6-4.0mm
5. Max PVC wire diameter: 5.5mm
6. Spindle Speed:25r/min
7. Power: 22kw
8. Weight: 15T
9. Theoretic output: 195m/hr
10. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop
11. Infrared ray safety protection system (option)
12. Automatic oil system
Gabion Machine Packing
A set of gabion machine will be loaded to one 40' container, it is nude packing and will use wire to fix the machines in the container, make sure it is safe on passage.
Gabion Machine Loading to Container
Workers are fixing the machine
Machines are fixed in the container as below picture
Gabion Machine Was Unloaded in Foreign Country
1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area
of gabion machine making for 15 years.
2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
